IMPORTANT - READ ALL INSTRUCTIONS BEFORE YOU BEGIN
THE INSTRUCTIONS HEREIN SHOULD BE PERFORMED BY A QUALIFIED SERVICE TECHNICIAN.
THE APPLIANCE MUST BE COMPLETELY COOL AND THE GAS SOURCE MUST BE SHUT OFF. THE
UNIT MUST BE UNPLUGGED FROM THE POWER OUTLET, OR THE ELECTRICAL BREAKER SHUT
OFF. YOU WILL NEED TO MOVE THE APPLIANCE AWAY FROM THE WALL FOR ACCESS.
SOME PARTS INSIDE YOUR APPLIANCE HAVE SHARP EDGES. CARE MUST BE TAKEN WHEN
HANDLING THE VARIOUS COMPONENTS TO AVOID PERSONAL INJURY. WEAR GLOVES WHEN
HANDLING.
TOOLS REQUIRED:
Work gloves
Safety glasses
Phillips screwdriver
5/16" & 3/8" deep socket wrench or nut driver
REMOVAL OF EXISTING BACKGUARD

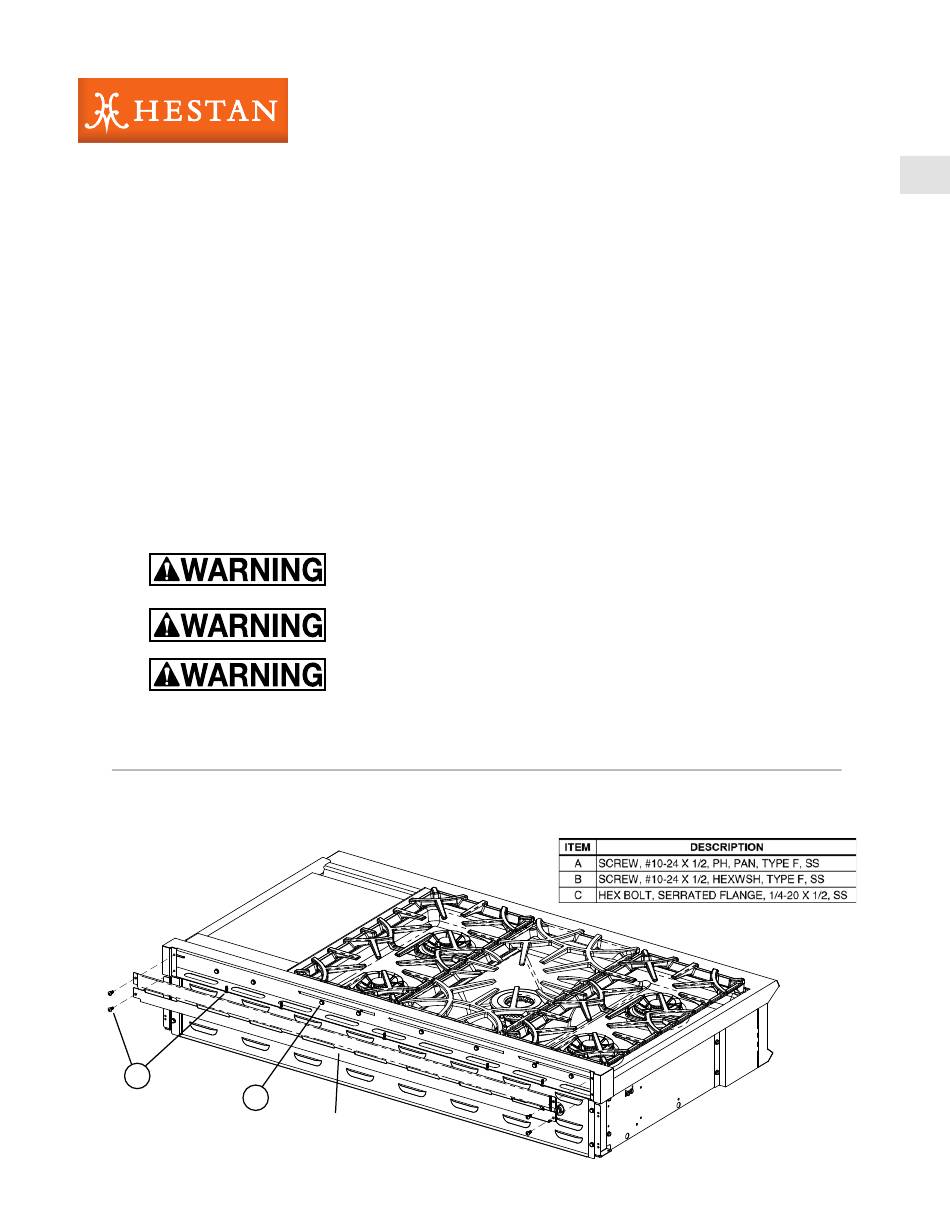

1. Your Hestan appliance was shipped with an Island Trim Backguard (KBGIT) from the factory. From
the rear of the unit, remove screw (Item A), then remove the rear cover, then remove remaining
screws (Item C).
A
C
BACKGUARD
INSTALLATION
INSTRUCTIONS
KBGIT / KBGLB / KBGHS
IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED
EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING
PROPERTY DAMAGE, PERSONAL INJURY, OR DEATH.
Flammable Gas - disconnect all propane or natural gas supplies to this
unit before servicing.
Electrical Parts & Components – disconnect all power supplies before
servicing.
COVER
©2018 Hestan Commercial Corporation
EN
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for hestan KBGIT
Summary of Contents for hestan KBGIT
- Page 1 REMOVAL OF EXISTING BACKGUARD 1. Your Hestan appliance was shipped with an Island Trim Backguard (KBGIT) from the factory. From the rear of the unit, remove screw (Item A), then remove the rear cover, then remove remaining screws (Item C).
- Page 2 2. From both sides of the unit, remove screws (Item A), then pull the backguard up and toward the rear of the appliance. EXISTING BACKGUARD INSTALLATION OF NEW BACKGUARD 3. Install the new backguard, then install the two kinds of screws as shown (Item A & C). BACKGUARD ©2018 Hestan Commercial Corporation...
- Page 3 If your range was moved away from the wall, be sure to re-engage the anti-tipping bracket at the back of the unit, near the floor. COVER ©2018 Hestan Commercial Corporation...
- Page 4 ©2018 Hestan Commercial Corporation...
- Page 5 à une opération d’entretien. RETRAIT DU DOSSERET EXISTANT 1. Votre appareil Hestan est fournie en usine avec un dosseret Island Trim (à Profilé pour Îlot) KBGIT. À l’arrière de l’appareil, retirez la vis (Article A), puis retirez le couverture arrière, puis retirez les autres vis (Article C).
- Page 6 2. Retirer les vis (Article A) des deux côtés de l’appareil, puis tirez le dosseret vers le haut et vers l’arrière de l’appareil. DOSSERET EXISTANT INSTALLATION DU NOUVEAU DOSSERET 3. Installez le nouveau dosseret, installez les deux types de vis comme indiqué (Articles A-C). DOSSERET ©2018 Hestan Commercial Corporation...
- Page 7 (Article A). L’appareil peut maintenant être reconnecté au gaz et à l’électricité et retourné à sa position dans votre cuisine. Si votre cuisinière a été éloignée du mur, assurez-vous de réengager le dispositif anti-basculement à l’arrière de l’appareil, près du sol. COUVERTURE ©2018 Hestan Commercial Corporation...
- Page 8 RETAIN THIS MANUAL FOR FUTURE REFERENCE CONSERVEZ CE MANUEL POUR UNE RÉFÉRENCE FUTURE Hestan Commercial Corporation 3375 E. La Palma Ave Anaheim, CA 92806 (888) 905-7463 ©2018 Hestan Commercial Corporation P/N 022367 REV A...
