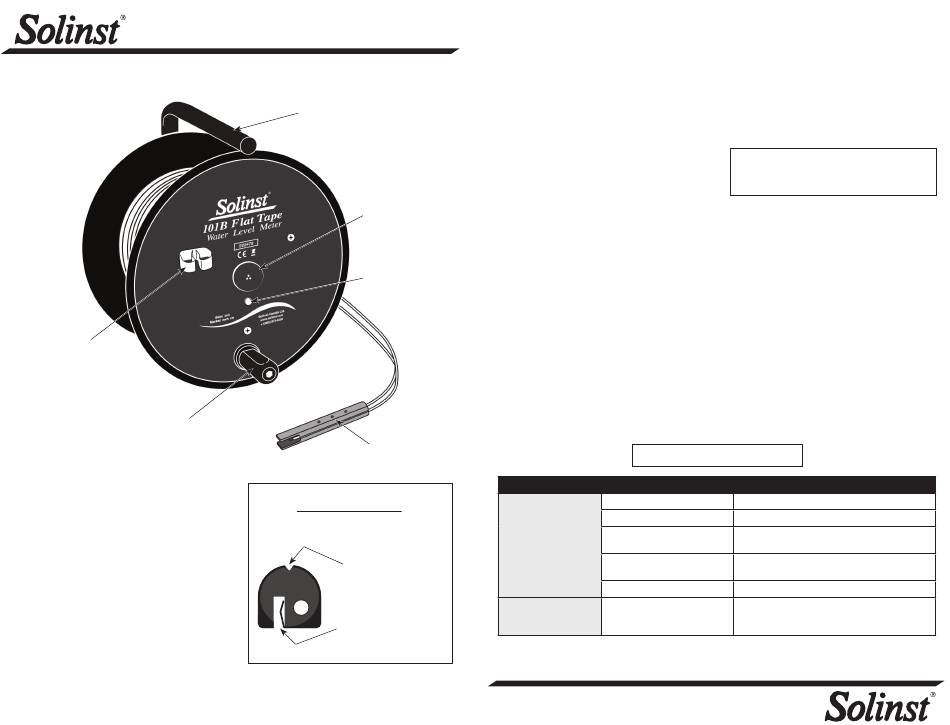

Solinst 101B Instructions

Water Level Meter: Op Instructions
Probe
Holder
Winding
Handle
Water Level Measurements
1. The zero measurement point on the
101B P1 Probe is at the tip of the
conductor pins.
2. Feed the tape into the well. If a tape
guide is used, lay the tape onto the
groove on the top. Measurements will
be read at the point of the V-notch on
the tape guide. Remember to deduct
2/10 ft or 6.0 cm.
3. The light and buzzer activate when the
probe conductor pins enter water. To
ensure accuracy, lower and raise the
probe a few times and then record the
depth measurement from the tape at
the top of the well.
® Solinst is a registered trademark of Solinst Canada Ltd.

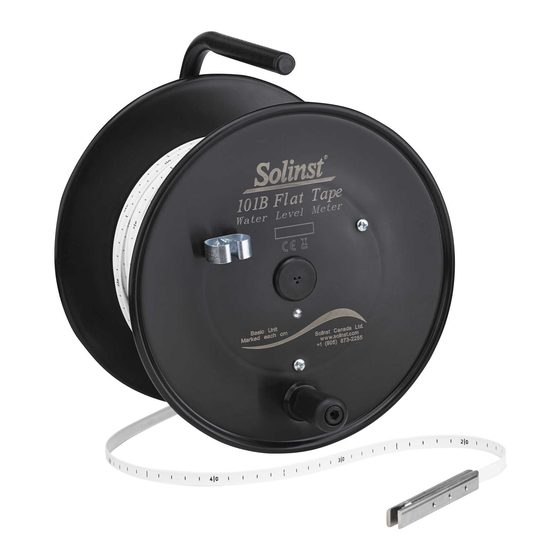

Model 101B
Carry
Handle
Sonalert
LED Light
101B P1
Probe
Tape Guide (Optional)
Measurement point
(Deduct 2/10 ft or 6.0 cm)
Fit onto well casing
Equipment Check
1. Submerse the probe in tap water to test
the probe. This completes the circuit
and activates the buzzer and light.
Routine Care
1. After the depth to water has been
recorded, the tape should be carefully
rewound onto the reel, the probe
wiped dry and placed into the probe
holder.
2. The probe, tape and reel can be
wiped clean with phosphate free
(non-abrasive) detergent and water.
Do not submerge the reel.
Battery Replacement
• Battery type - alkaline, 9 volt.
1. The battery is housed within the
faceplate of the reel.
2. Using a Phillips screwdriver, remove
the three screws on the faceplate.
3. Carefully remove the faceplate so as
to not unwind the tape.
Troubleshooting
SYMPTOM CAUSE
No sound when probe Dead battery.
immersed in water.
Water Conductivity is very low.
Disconnected wires on circuit
board.
Broken wire in tape.
Damaged probe.
Instrument continuously Probe may be dirty which
sounds after being could interfere with the circuit
immersed in water. connection.
For further information contact: Solinst Canada Ltd.
Printed in Canada
June 22, 2015
Fax: +1 (905) 873-1992; (800) 516-9081 Tel: +1 (905) 873-2255; (800) 661-2023
35 Todd Road, Georgetown, Ontario Canada L7G 4R8
(#112205)
Web Site: www.solinst.com E-mail: instruments@solinst.com
4. Replace the battery.
5. Carefully place the faceplate back
onto the hub and line up the holes.
Note: Before screwing the faceplate back
onto the hub, make sure no wires are
outside the hub.
6. Once the screws have been tightened
and the faceplate is secure, test the
water level meter.
Replacement Parts
The following parts can be provided should
components become lost or damaged.
1. Splice kits
2. Electronics
3. Faceplate and backplate
4 Tapes
5. Probes
6. Probe holders, brakes, etc.
REMEDY
Replace with 9V Alkaline.
Try a different Solinst 101 Water Level Meter.
Check all connections inside hub of reel for
loose/disconnected wires - solder or reconnect.
Locate break in tape - splice and seal, or replace.
(Contact Solinst)
Contact Solinst to obtain parts/repair instructions.
Contact Solinst for instructions to remove, clean
and replace the probe.
