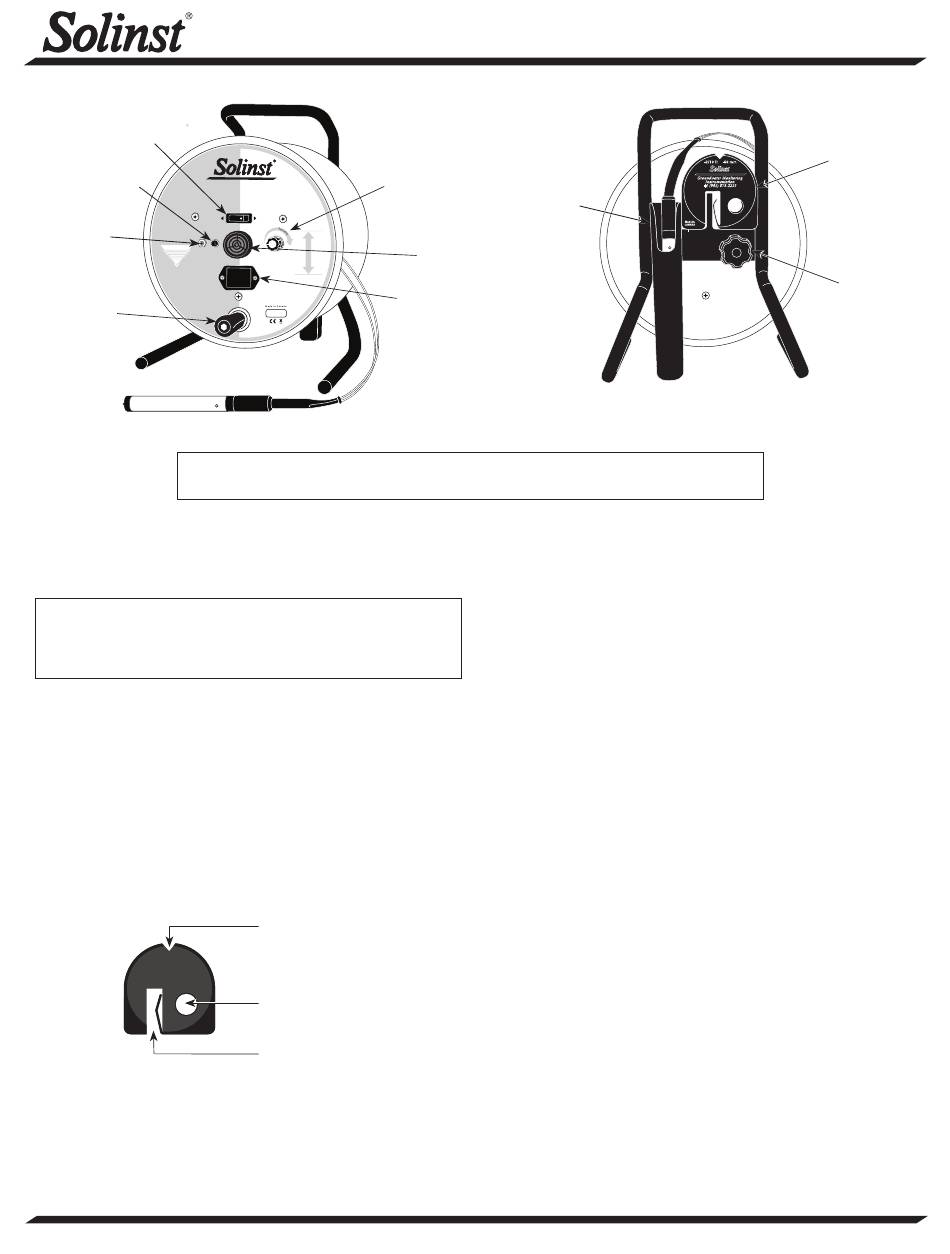

Solinst 101D Operating Instructions

Water Level/
Draw Down Switch
Indicator Light
Water Level
Water Level
Mode
Battery Test
Button
Battery
Test
Static Water Level
Handle
Solinst Canada Ltd.
www.solinst.com
Tel: +1(905) 873-2255
(800) 661-2023
P7 Probe
Front View
Equipment Check
1. Ensure the meter is in Water Level mode. Turn the sensitivity
dial fully clockwise.
Notes: 1. Clockwise rotation of the sensitivity dial turns the meter on
and increases sensitivity.
2. Always set switch to highest sensitivity position, then
decrease if necessary.
2. Depress the battery test button to test the battery and main
circuitry (does not test the tape or probe). Light and buzzer
will activate.
3. Submerse the probe in tap water. This completes the circuit
and activates the buzzer and light.
4. Switch to Draw Down mode. The buzzer and light will turn
off when the probe is submersed.
5. Remove the probe from water to activate the buzzer and light.
Depress battery test button and light and buzzer will turn off.
The Tape Guide
1. Fit the small end of the Tape Guide onto the edge of well
casing 2" (50 mm) diameter or larger.
2. For small reels only, insert the leg into the hole in the Tape
Guide and rest the reel on the side of the well casing.
3. To store the Tape Guide, simply clip it onto the support
bracket located on the back of the reel.
(Page 1 of 2)

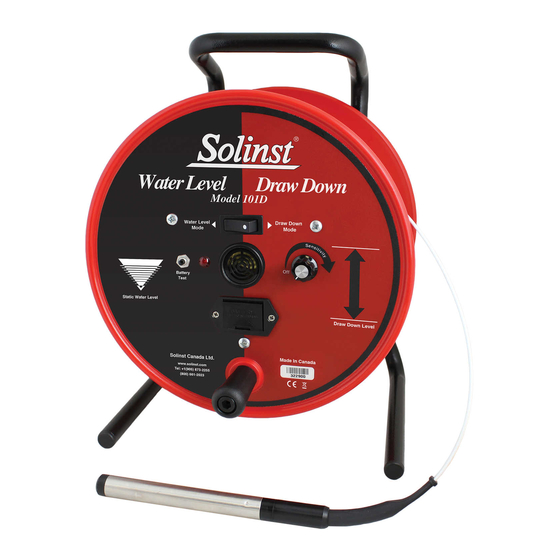

Water Level DrawDown Meter Operating Instructions
Sensitivity Dial
Draw Down
Model 101D
Draw Down
Mode
Off
Draw Down Level
210288
Water Level Mode: light and buzzer activate when probe is submersed.
Draw Down Mode: light and buzzer activate when probe is in air.
Measurement Point
Insert reel leg
through hole
Fit onto well casing
High Quality Groundwater and Surface Water Monitoring Instrumentation
On/Off
Probe Holder
Sonalert
Battery Drawer
Routine Care
1. After use, the tape should be carefully rewound onto the reel,
the probe wiped dry and placed into the probe holder.
2. The probe, tape and reel can be wiped clean with phosphate
free (non-abrasive) detergent and warm water. Do not
submerge the reel.
3. Use of a Carrying Bag adds to the service life of the meter.
4. Use of the Tape Guide adds to the life of the tape.
Probe Care and Cleaning
1. The P7 Probe should be wiped clean after each use.
2. Remove any dirt or water from around the central sensor pin.
3. If the central sensor pin is corroded or coated, use emery
cloth to polish it.
4. After cleaning, place probe back in its holder.
Battery Replacement
• Battery type - alkaline, 9 volt.
1. The battery is housed in a convenient battery drawer located
in the faceplate of the Water Level Drawdown Meter.
2. To replace the battery, simply press the drawer in, lift then pull.
3. The battery drawer will slide out enough to pull it out.
4. Note the polarity (positive (+) terminal should be towards
the small notch in the end of the drawer) and place new
battery in the drawer and slide it back into the faceplate.
Replacement Parts
The following parts can be provided should they become lost
or damaged.
1. Probes
2. Tape with Tape Seal Plug, Tape Seal Plug on shorter
lengths of tape (3 ft or 1 m) and splice kit
3. Lights, switches, etc.
4. Reels
Model 101D
Tape Guide
Brake
Back View
