Solinst 101 P2 Replacement Manual

Tools and Materials Needed
1. Model 101 P2 Replacement Tape Assembly
• Comes with P2 Probe attached
• 2 Pin Molex Connector
• Grommet
2. Phillips or Robertson Screwdriver
3. Wire Cutters
Instructions
1. Place reel on a flat workbench with faceplate up. Undo the
three screws from the faceplate, and slowly remove it from
the reel.
2. For the Mk1 Model 101 P2, disconnect the Tape Molex
Connector from the Faceplate Molex Connector.
Wires Connected
to Faceplate
Faceplate Molex
Connector
Grommet
Black Plastic Bridge

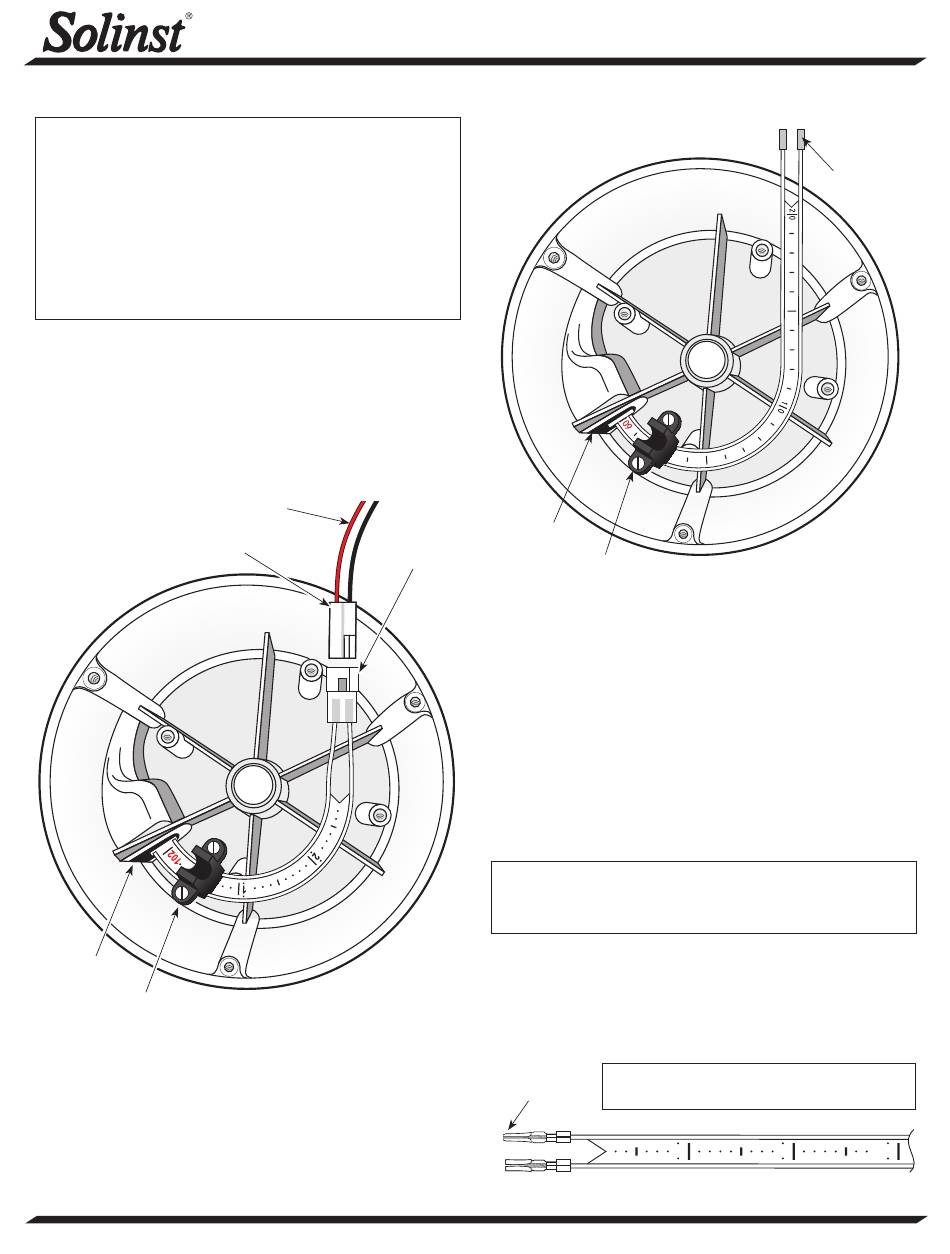

Inside View of Mk1 101 P2 Reel Hub
Showing Tape Connection Detail
3. For the Mk2 Model 101 P2 Water Level Meters, press down
on the white terminals of the push-release fittings on the
circuit board to remove the tape leads. Remember which
lead is removed from each terminal – this is important
when reconnecting.
(Page 1 of 2)
Connecting Polyethylene Replacement Tape to Reel
Tape Molex
Connector
High Quality Groundwater and Surface Water Monitoring Instrumentation
Grommet
Black Plastic Bridge
Inside View of Mk2 101 P2 Reel Hub
Showing Tape Connection Detail
4. Undo the two screws from the black plastic bridge holding
the tape inside the reel hub, and remove the top piece of the
bridge.
5. For the Mk1 Model 101 P2, use the wire cutters to cut the
old Tape Molex Connector from the old tape. Pull the old
tape through the grommet and remove it from the reel.
6. For the Mk2 Model 101 P2 Water Level Meters, simply pull
the old tape through the grommet and remove it from the
reel.
7. Feed the new tape through the grommet into the reel hub.
Note: The replacement tape comes with a new grommet.
The old grommet may be replaced with the new one,
or left in if not damaged.
8. For the Mk1 Model 101 P2, by hand, insert the connector
pins into the new Tape Molex Connector housing. The
negative connector pin is inserted into the terminal on the
pointed side of the Tape Molex Connector housing and the
positive pin into the other terminal.
Negative
Note: There is a knot and a black band on the
Connector Pin
wire indicating the negative connector pin.
Model 101 P2
Tape Leads
