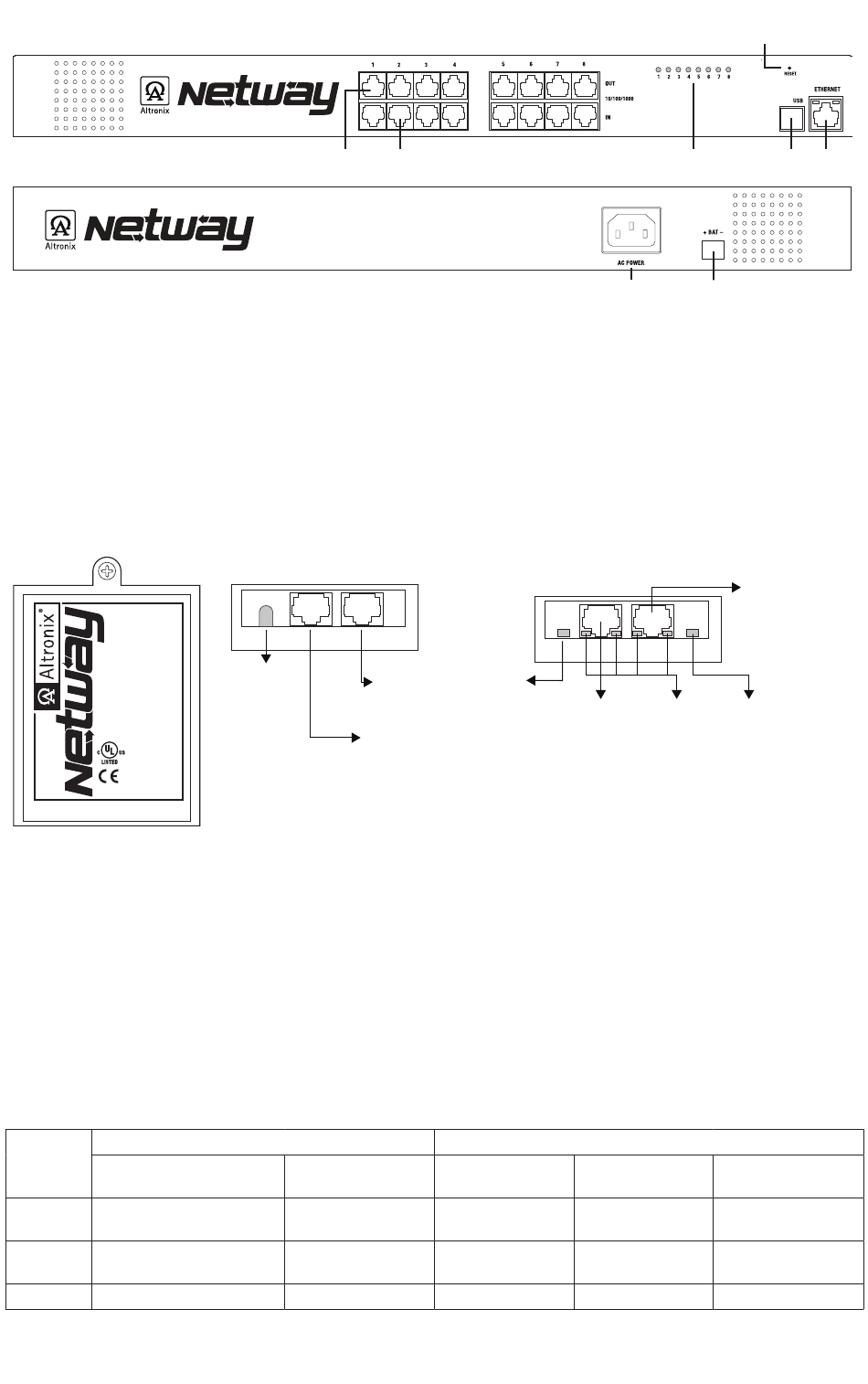

Fig. 2 - NetWay8G
NetWay8G - Front Panel
NetWay8G - Rear Panel
2a OUT 1-8: Structured cable to PoE compliant cameras/edge devices .
2b IN 1-8: Structured cable to ethernet switch or video server .
2c LED(s) 1-8: Port status LEDs .
Reset: Restores unit to factory settings .
2d
2e USB Port: For future use .
Ethernet: For future use .
2f
2g IEC 320 Connector: 115/230VAC (grounded line cord included) .
Built-in battery charger: Charges stand-by batteries for applications requiring back-up,
2h
(optional rack mount battery enclosure available - RE2)
Fig. 3 - NetWayXT/NetWayXTX
Made in U.S.A.
NetwayXT
Repeater
I.T.E. 43KC
www.altronix.com
Power OUT IN

Installing a NetWayXT/NetWayXTX Repeater Module:

NetWayXT will work only with PoE devices . NetWayXTX will work with PoE/PoE+ devices .
1 . Mount NetWayXT/NetWayXTX in desired location utilizing the mounting hole (Fig. 3, pg. 4) .
Use a proper fastener and/or wall anchor when securing NetWayXT/NetWayXTX to the wall .
2 . Connect structured cable from port marked [OUT] on NetWay8G to port marked [IN] on the
NetWayXT/NetWayXTX (Fig. 3, pg. 4) .
3 . Connect structured cable from port marked [OUT] on NetWayXT/NetWayXTX to the PoE/PoE+ camera/
edge device or next NetWayXT/NetWayXTX repeater (Fig. 3, pg. 4) .
4 . Port status LEDs will illuminate on NetWayXT/NetWayXTX indicating the port is operational
(refer to LED Definitions, pg. 4) .
5 . Power LED will illuminate indicating 12VDC output .

Port LED Definitions for NetWayXT and NetWayXTX Repeaters:

Status
Green LED
Indicates it is connected as
OFF
10Base-T or no link .
Indicates it is connected as
ON
100Base-TX .
Blinking
- 4 -
2a
NetWayXT
Power
LED
NetWayXT
Yellow LED
Indicates no link .
Indicates a link .
– Indicates activity .
2b
Structured
PoE/PoE+
Cable from
Output
NetWayG
LED
Structured Cable
to IP Camera/
Edge Device
or next
NetWayXT
PoE/PoE+
Output LED
No PoE/PoE+
Output
Normal PoE/PoE+
Output
–
2c
2g 2h
NetWayXTX
Structured Port Status
Cable to LEDs
PoE/PoE+
Camera/Device or
next NetWayXTX
NetWayXTX
PoE/PoE+
Input LED
No PoE/PoE+
Input
PoE/PoE+ Input
–
2d
2e
2f
Structured
Cable from
NetWayG
PoE/PoE+
Input
LED
Yellow LED
Indicates no link .
Indicates a link .
Indicates activity .
