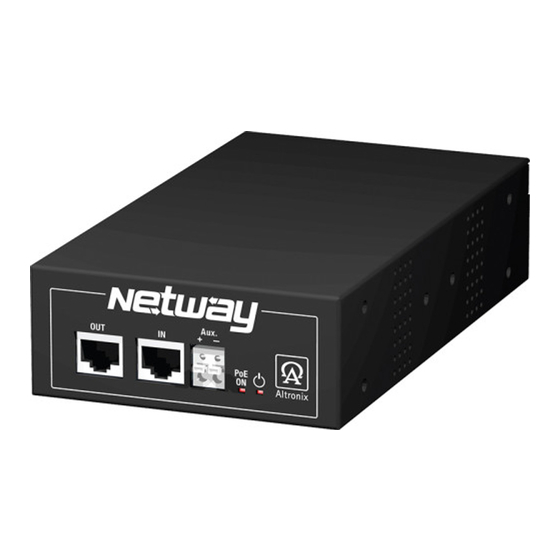

Altronix NetWay1BT Installation Manual

Single port 802.3bt 90w injector for standard and enhanced power network infrastructure

Table of Contents

Download this manual

Power over the Ethernet

NetWay1BT

Single Port 802.3bt (90W) Injector for Standard

and Enhanced Power Network Infrastructure

Installation Guide

More than just power.

Rev. 02092020

Table of Contents

Need help?

Do you have a question about the NetWay1BT and is the answer not in the manual?

Page 1 Power over the Ethernet NetWay1BT Single Port 802.3bt (90W) Injector for Standard and Enhanced Power Network Infrastructure Installation Guide More than just power. Rev. 02092020...
Page 2 1. Place NetWay1BT in desired location on table or desktop only. 2. Plug the grounded AC line cord (included) into the IEC 320 connector of the NetWay1BT unit. Plug unit into a reliable earth grounded socket. When using multiple units the sum of the individual name plate ratings should not exceed the supply circuit rating.
Page 3 Technical Specifications: Parameter Description No. of Ports One (1) IEEE 802.3at (30W), IEEE 802.3af (15W) and 802.3bt (90W) compliant Input Power 115VAC, 60Hz, 1.2A or 230VAC, 50/60Hz, 0.75A. Requirements Indicators Port Status and Power LED. + Aux. – Class 2 power-limited output rated @ 56VDC/90W. Operating Temperature: 30W: –...
Page 4 1.7” (44mm) Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A. MEMBER IINetWay1BT B25T - 4 -...
