Altronix NetWay1DWP Installation Manual

NetWay1DWP - Outdoor Single Port Hi-PoE Injector
NetWay1DWPM - Outdoor Managed Single Port Hi-PoE Injector

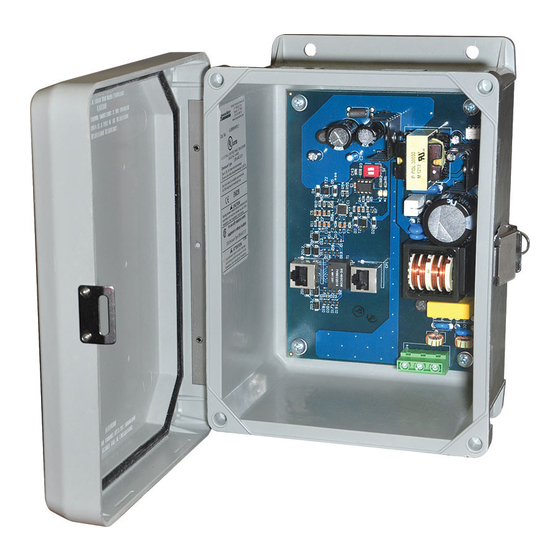

Altronix NetWay1DWP Outdoor Single Port Midspan Injector provides Hi-PoE (60W) power and passes data for PoE
compliant cameras/edge devices. Cameras/edge devices may be located up to 100m from the unit.
NetWay1DWPM includes built-in IP management which facilitates remote device reset/control and status monitoring.
Agency Listings:
• UL/CUL Listed for Information Technology
Equipment (UL 60950-1), Information Technology
Equipment to be installed Outdoors (UL 60950-22).
• CE approved.
Input:
• 115VAC, 60Hz, 1.2A or
230VAC, 50/60Hz, 0.75A.
Power Output:
• Maximum power: Hi-PoE (60W). Power product
using all 4 pairs for 60W.
• IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant.
• Integral surge protection.
Ethernet:
• Connectivity: RJ45, auto-crossover.
• Wire type: 4-pair Cat-5 or better structured cable.
• Distance: up to 100m.
• Speed: 10/100/1000Mbps, half/full duplex,
auto negotiation.
LEDs:
• LED1: PoE active on Spare. LED2: PoE active on Signal.
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and
authorities having jurisdiction. Wiring should be UL Listed and/or Recognized wire suitable for the application.
1. Remove circuit board from enclosure prior to drilling NetWay1DWP and NetWay1DWPM (do not discard hardware).
Note: Take care to assure that hardware will not interfere with components of the circuit board.
2. NetWay1DWP and NetWay1DWPM: Mark and drill desired inlets on the enclosure to facilitate wiring
(Fig. 2, pg. 2). Maximum UL Listed NEMA type 4X rated fittings to be used is 1/2", follow manufacturer's
specifications for the appropriate size opening.
Note: Inlets for conduit fittings should only be made on the bottom of the enclosure.
UL Listed NEMA type 4X rated conduit connector/hubs shall be used for the appropriate size inlets.
NetWay1DWPH and NetWay1DWPMH are pre-drilled with three (3) pre-drilled inlet holes for wiring.
3. Clean out the inside of enclosure before remounting circuit board.
4. Switch circuit breaker to the OFF position.
5. Connect AC power from a UL approved circuit breaker to the terminals marked [L] and [N],
connect ground to the terminal marked [G] (refer to Fig. 1 on right).
6. Mounting NEMA 4X rated enclosure:
Wall mount: Mount unit in desired location. Mark and drill holes to line up with the top and
bottom holes of the enclosure flange. Secure enclosure with appropriate fasteners (e. g. screws
and anchors; bolts and locking nuts, etc.) which are compatible with mounting surface and are
of sufficient length/construction to ensure a secure mount (Fig. 8, pg. 6).
Pole Mount: (refer to page 6).
Note: All inlets for conduit fittings should be on the bottom of the enclosure.
7. Mount circuit board in enclosure with hardware.
NetWay1DWP/NetWay1DWPH/NetWay1DWPM/NetWay1DWPMH
®
Installation Guide
Overview:
Features:
Environmental:
• Operating Temperature:
30W: -30ºC to 70ºC (-22ºF to 158ºF).
60W: -30ºC to 55ºC (-22ºF to 131ºF).
• Storage Temperature: -30ºC to 85ºC (-22ºF to 185ºF).
• Humidity: 20 to 85%, non-condensing.
Applications:
• Provides PoE/PoE+ and Hi-PoE for cameras/devices.
Mechanical:
• NEMA 4X, IP66 Rated enclosure for outdoor use.
• Dimensions (H x W x D approx.):
9.5" x 7.32" x 4.92" (241.3mm x 185.9mm x 125mm).
Models:
NetWay1DWP: Outdoor Single Port Hi-PoE Injector.
NetWay1DWPH: Outdoor Single Port Hi-PoE Injector,
enclosure with three (3) 5/8" wiring inlets, includes NEMA
rated glands.
NetWay1DWPM: Outdoor Managed Single Port Hi-PoE
Injector.
NetWay1DWPMH: Outdoor Managed Single Port
Hi-PoE Injector, enclosure with three (3) 5/8" wiring
inlets, includes NEMA rated glands.
Installation Instructions:
Rev. 112713
I.T.E. 43KC
115VAC/230VAC
Input
L G N
Line Neutral
Ground
- 1 -
