Altronix NetWay112X Installation Manual

NetWay112X
Single Port PoE+ Injector for Standard Network Infrastructure
Altronix NetWay112X is a single port PoE+ injector which provides power and passes data (e.g. video)
for PoE/PoE+ compliant devices. Devices may be located up to 100m from NetWay112X.
To extend data distance for an additional 100m use NetWayXTX repeater module.
Agency Listings:
• CE - European Conformity.
Input:
• 12VDC-16VDC @ 2A
Data:
• One (1) PoE+ port provides power and passes data
over ethernet (CAT5) cable up to 100m.
• Data rate: 10/100 Base-T compliant.
PoE:
• IEEE 802.3at (30W) and 802.3af (15W) compliant.
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local
codes and authorities having jurisdiction.
Wiring should be UL Listed and/or Recognized wire suitable for the application.
Unit is intended to be used with a UL Listed Class 2 or LPS (limited power supply). NetWay112X is not
intended to be connected to outside plant leads and should be installed indoors within the protected premises.
NetWay112X is intended for indoor use only.
1. Mount NetWay112X in desired location utilizing the mounting hole (Fig. 1a, pg. 1). Use a proper fastener
and/or wall anchor when securing NetWay112X with screw through its mounting hole to the wall.
2. Connect UL Listed Class 2 or LPS (limited power supply) providing 12VDC-16VDC @ 2A
to terminals marked [– DC + Input] – carefully observing polarity to avoid potential damage (Fig. 1b, pg. 1).
Use 22AWG - 16AWG wire for this connection.
Input power should be a Access Control power supply or a transformer.
3. Connect ethernet port marked [IN] on NetWay112X to the input of a network switch or
video server (Fig. 1b, pg. 1).
4. Connect ethernet port marked [OUT] on the NetWay112X to the PoE/PoE+ device (Fig. 1b, pg. 1).
5. LEDs will illuminate indicating normal operation (Fig. 1, pg. 1).
6. To initiate PoE shutdown connect 12VAC to 24VAC or 5VDC to 24VDC to the input terminals marked
[Power Shutdown] on the NetWay112X (Fig. 1b, pg. 1). The PoE output voltage may be shut down by manually
applying voltage in the rated range (PoE Shutdown Voltage Range in Specifications). Upon applying voltage,
the output will drop to zero volts. Removal of voltage from the shutdown terminals or applying zero volts to
the shutdown terminals will allow the PoE output to operate normally to supply power to PoE compliant devices.
Note: Return to normal operation from shutdown can take about 4 seconds. Although there is no output
voltage to power PoE devices during shutdown, data signals may still be present on the data pair lines of the
CAT5 cable.

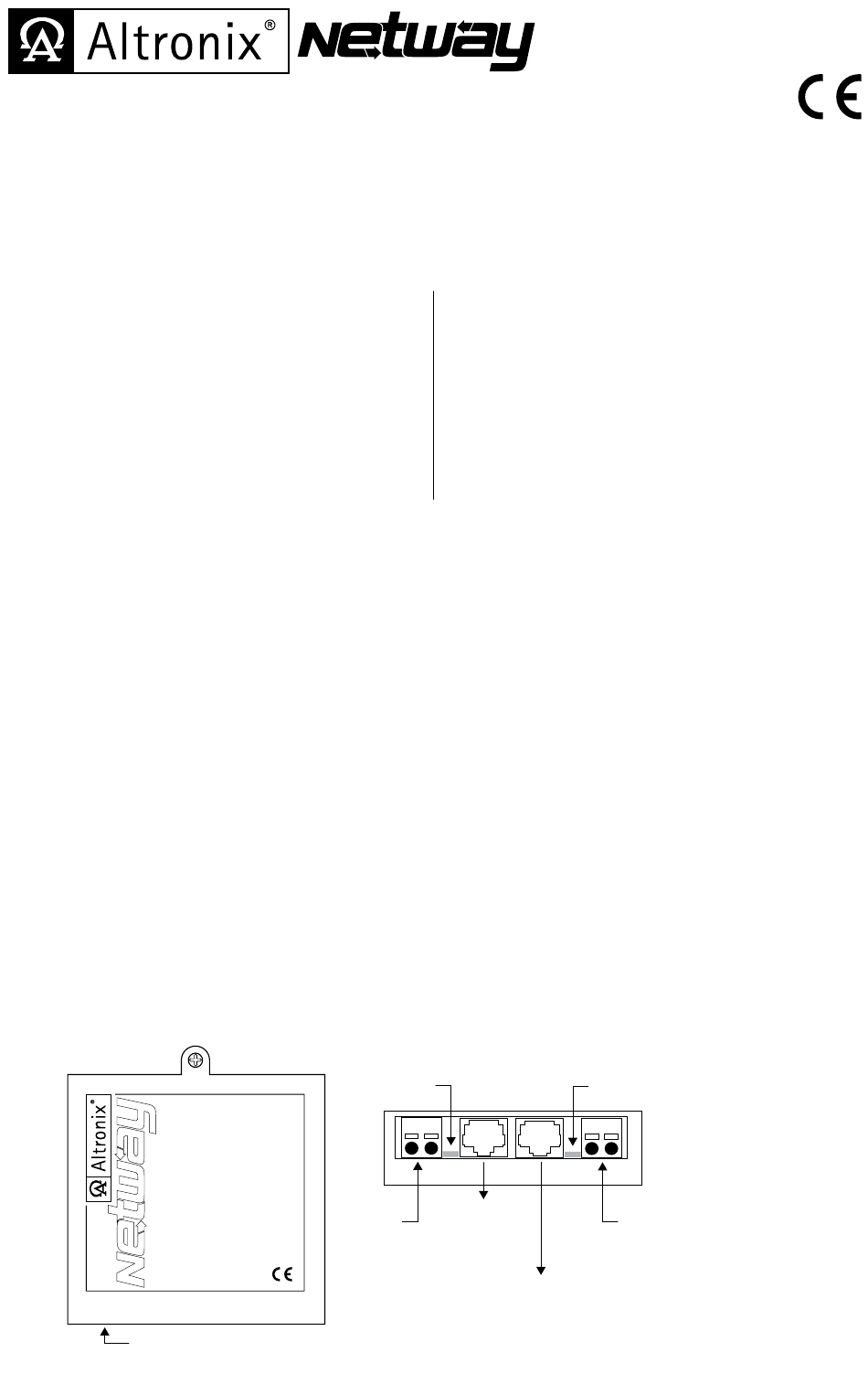

Fig. 1
NetWay112X
Single Port Injector (Midspan)
Input:
Output: IEEE 802.3at (30W) and
– DC +
Input
CAREFULLY OBSERVE POLARITY
TO AVOID POTENTIAL DAMAGE
NetWay112X
Installation Instructions:

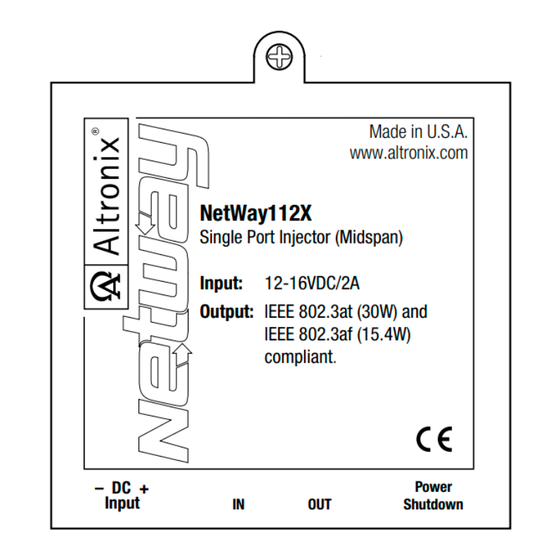

Fig. 1a
Made in U.S.A.
www.altronix.com
12-16VDC/2A
IEEE 802.3af (15.4W)
compliant.
Power
IN OUT Shutdown
Overview:
Features:
Features:
• Power/status LEDs.
• PoE manual shutdown feature allows for
cameras and/or edge devices to be reset.
• Auto detection and protection of legacy
non-PoE cameras/devices.
• Data rate: 10/100 BASE-T compliant.
Dimensions (W x L x H approx.):
3.5" x 3.5" x 1" (88.9mm x 88.9mm x 25.4mm)
Fig. 1b
Power In LED
IN
To Network
12-16VDC
Switch or
Input
Video
Server
To PoE/PoE+
Installation Guide
PoE LED
OUT
12VAC to 24VAC or
5VDC to 24VDC Input
for PoE shutdown
Device
Rev. 070620
- 1 -
