Wall-Mount Stanchion Assembly

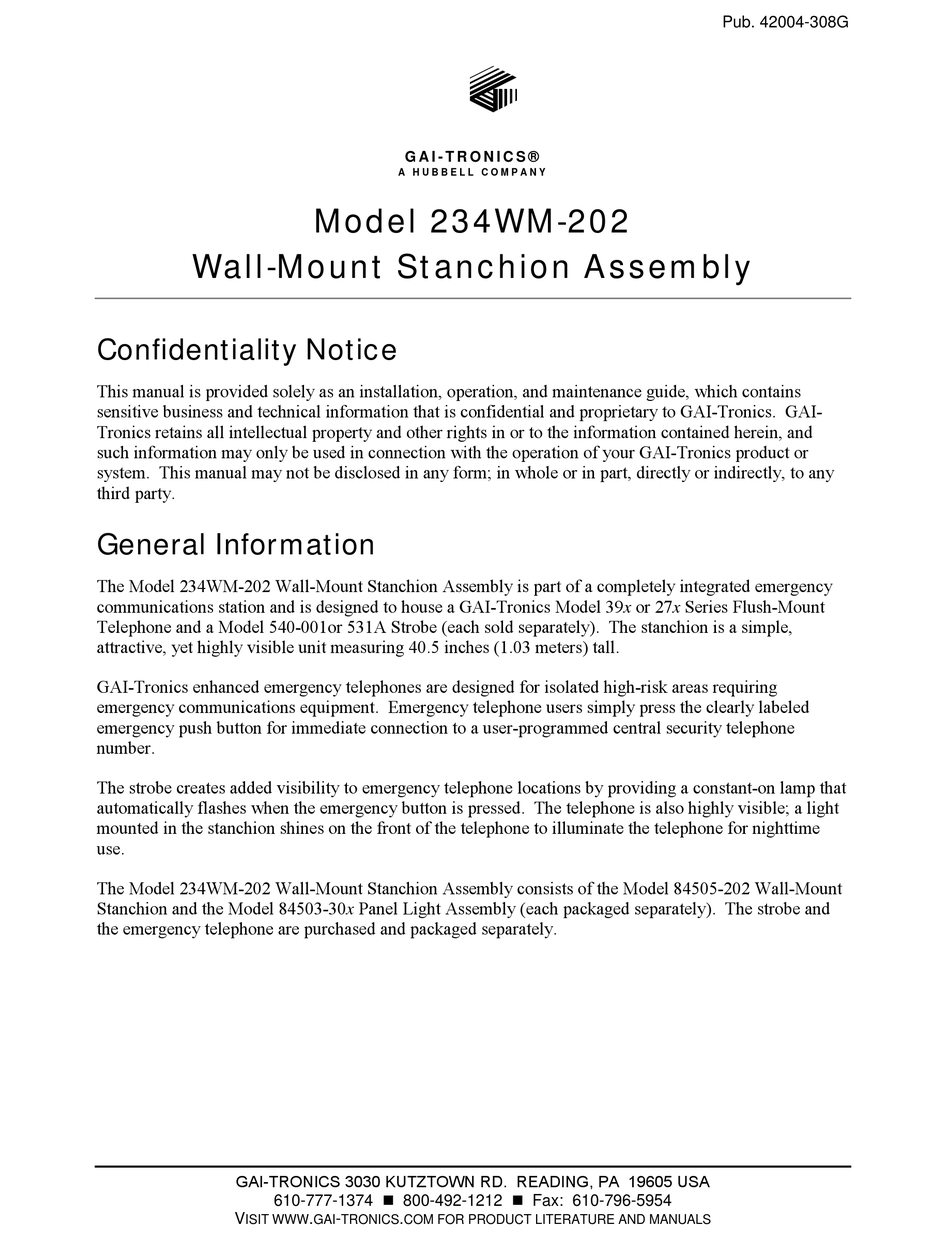

Confidentiality Notice
This manual is provided solely as an installation, operation, and maintenance guide, which contains
sensitive business and technical information that is confidential and proprietary to GAI-Tronics. GAI-
Tronics retains all intellectual property and other rights in or to the information contained herein, and
such information may only be used in connection with the operation of your GAI-Tronics product or
system. This manual may not be disclosed in any form; in whole or in part, directly or indirectly, to any
third party.
General Information
The Model 234WM-202 Wall-Mount Stanchion Assembly is part of a completely integrated emergency
communications station and is designed to house a GAI-Tronics Model 39x or 27x Series Flush-Mount
Telephone and a Model 540-001or 531A Strobe (each sold separately). The stanchion is a simple,
attractive, yet highly visible unit measuring 40.5 inches (1.03 meters) tall.
GAI-Tronics enhanced emergency telephones are designed for isolated high-risk areas requiring
emergency communications equipment. Emergency telephone users simply press the clearly labeled
emergency push button for immediate connection to a user-programmed central security telephone
number.
The strobe creates added visibility to emergency telephone locations by providing a constant-on lamp that
automatically flashes when the emergency button is pressed. The telephone is also highly visible; a light
mounted in the stanchion shines on the front of the telephone to illuminate the telephone for nighttime
use.
The Model 234WM-202 Wall-Mount Stanchion Assembly consists of the Model 84505-202 Wall-Mount
Stanchion and the Model 84503-30x Panel Light Assembly (each packaged separately). The strobe and
the emergency telephone are purchased and packaged separately.
GAI-TRONICS 3030 KUTZTOWN RD. READING, PA 19605 USA
610-777-1374 800-492-1212 Fax: 610-796-5954
V
ISIT WWW
G A I - T R O N I C S ®
A H U B B E L L C O M P A N Y
Model 234WM-202
.
-
.
GAI
TRONICS
COM FOR PRODUCT LITERATURE AND MANUALS
Pub. 42004-308G
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GAI-Tronics 234WM-202
Summary of Contents for GAI-Tronics 234WM-202
-
Page 1: Confidentiality Notice
Tronics retains all intellectual property and other rights in or to the information contained herein, and such information may only be used in connection with the operation of your GAI-Tronics product or system. This manual may not be disclosed in any form; in whole or in part, directly or indirectly, to any third party. -
Page 2: Installation
Pub. 42004-308G Model 234WM-202 Wall-Mount Stanchion Assembly Page 2 of 11 Installation The following sections provide information on the installation of the complete wall-mount stanchion. Figure 1. Model 234WM-202 Wall-Mount Stanchion Assembly p:\standard ioms - current release\42004 instr. manuals\42004-308g.docx 04/16... - Page 3 Model 84505-202 Wall-Mount Stanchion Installation 1. Remove and save the two tamper-resistant screws at the top of the stanchion. See Figure 1. : GAI-Tronics Model 233-001 Security Screwdriver (sold separately) is required to remove the tamper-resistant screws. 2. Remove the wall-mounting assembly from the front panel assembly. Refer to Figure 1. Detach the chain from the wall-mounting assembly.
-
Page 4: Grounding Requirements
Pub. 42004-308G Model 234WM-202 Wall-Mount Stanchion Assembly Page 4 of 11 Grounding Requirements This unit must be grounded in accordance with the National Electrical Code (NEC) in the United States or the Canadian Electrical Code (CEC) in Canada. A #10 grounding stud has been provided at the base of the stanchion for grounding. -
Page 5: Tempered Glass Installation (Factory Installed)
Pub. 42004-308G Model 234WM-202 Wall-Mount Stanchion Assembly Page 5 of 11 Tempered Glass Installation (Factory Installed) 1. Remove the keps nuts, spacer brackets, and holding brackets. These parts will be used for holding the glass in place. 2. Carefully unpack the glass from the box located in the telephone mounting area of the Model 234WM-202 Wall-Mount Stanchion. - Page 6 Pub. 42004-308G Model 234WM-202 Wall-Mount Stanchion Assembly Page 6 of 11 Model 84503-30x Stanchion Panel Light Installation 1. Align the stanchion panel light assembly inside the stanchion as shown in Figure 5. 2. Model 84503-301: Extend the black (hot), the white (neutral) and the green (ground) wires to the base of the stanchion (these wires will be connected later, along with the strobe wires, to the incoming power wires in accordance with the electrical codes).
- Page 7 Pub. 42004-308G Model 234WM-202 Wall-Mount Stanchion Assembly Page 7 of 11 Model 540-001 or Model 531A Strobe Installation 1. Insert the strobe’s seven 15-foot wires through the stanchion’s threaded nipple, and allow the wires to extend to the bottom of the stanchion. See Figure 6.
-
Page 8: Emergency Telephone Installation
Pub. 42004-308G Model 234WM-202 Wall-Mount Stanchion Assembly Page 8 of 11 Emergency Telephone Installation 1. Separate the back box from the front panel of the telephone. The parts envelope inside the back box contains eight #6-32 self-tapping flat head screws, six tamperproof screws, six washers, and a hole plug. -
Page 9: Wiring Power Connection
Pub. 42004-308G Model 234WM-202 Wall-Mount Stanchion Assembly Page 9 of 11 6. Connect the telephone cable from the surge protection, and feed the cable through the bottom access hole of the telephone back box and allow it to hang free. -
Page 10: Repairing Surface Damage To Powder-Coated Stanchions
Pub. 42004-308G Model 234WM-202 Wall-Mount Stanchion Assembly Page 10 of 11 Figure 9. Interconnection Diagram with DC-Powered Strobe Repairing Surface Damage to Powder-Coated Stanchions 1. Carefully sand the damaged area to clean and score the base metal, taking care to minimize any additional damage to the surrounding powder coating. -
Page 11: Specifications
Pub. 42004-308G Model 234WM-202 Wall-Mount Stanchion Assembly Page 11 of 11 Specifications Dimensions ..............40.5 H × 10.0 W × 9.5 D in (0.25 0.24 1.03 m) Wall thickness ............................ 0.125 in Wall material ..........................Aluminum Finish ........................ Textured powder-coat epoxy Power ratings: Model 540-001 AC Strobe .................. -
Page 12: Warranty
Warranty Equipment. GAI-Tronics warrants for a period of one (1) year from the date of shipment, that any GAI-Tronics equipment supplied hereunder shall be free of defects in material and workmanship, shall comply with the then-current product specifications and product literature, and if applicable, shall be fit for the purpose specified in the agreed-upon quotation or proposal document.
