ProMariner ProNautic 2420P Operation Instructions

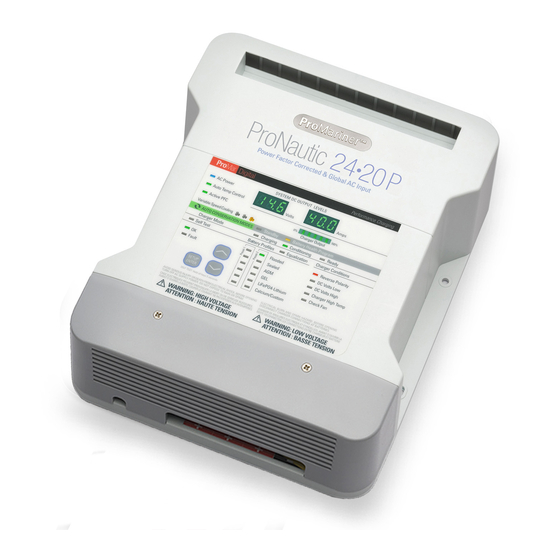

The Envoy battery charger is shown in Figure 1. A grounded power supply of 100-240VAC, 50/60 Hz
should be provided to the charger. Make sure that the battery charger is positioned so it has adequate
clearance to allow air circulation by the cooling fan. Detailed operating instructions are supplied with the
battery charger.
(1) cooling vent
(2) aMperage out display
(3) percentage of outputs used
(4) faults
The ProNautic 2420P charger is supplied with the proper 115/230VAC input power cord and 24VDC
output power cord already attached. The charger should also be preset for the type of battery included in
your Envoy lane machine. AGM should be preset to the AGM preset Profile #1 and the Lithium battery
should be preset to the LiFePO4 preset Profile #2. Call Brunswick Technical Service or your installing
distributor if your charger is not set to these proper settings for the type of battery in your Envoy.
It is best to install the charger onto a wall within 8' of a power outlet that is not being used to power other
equipment. The AC power cord has an in-line On/Off power switch to allow you to turn the power off
BEFORE disconnecting or reconnecting the DC output cable from the LH charge port of the Envoy. The
DC output cable should then be reconnected to the LH charge port of the Envoy BEFORE turning the AC
power back on to the charger.
May 2013
Envoy Battery Charger
Figure 1
(5) charging profile selected
(6) ac and dc connection cover
(7) dc side terMinations
(8) ac side terMinations
© Brunswick Bowling & Billiards Corp. 2013. All rights reserved.
1
(9) voltage out display
(10) abyc recoMMended bonding
stud
14-900100-000
