Marine Battery Charger
ProMar
Digital
Performance Charging Inside
Owner's Manual and Installation Guide
Model
Part No.
Volts

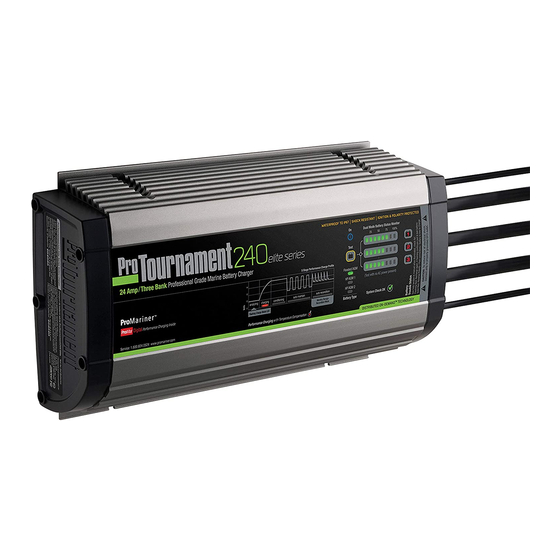

ProTournament240 elite Dual
52024
12/24
ProTournament240 elite Triple
52026
12/24/36
ProTournament360 elite Dual
52032
12/24
ProTournament360 elite Triple
52036
12/24/36
ProTournament360 elite Quad
52038
12/24/36/48
IMPORTANT NOTICE
Please save and read all safety, operating and installation instructions before installing or applying
AC power to your ProTournament elite On-Board Marine Battery Charger.
Your Satisfaction is Important to Us!
Do not return this product to a retailer or dealer for any service or warranty requirements.
Please call our Customer Care Department at 800-824-0524 from 8:30 am to 5pm Eastern Time
for any warranty, service or installation assistance. Thank you - ProMariner Customer Care
PLEASE RECORD YOUR:
Model Number:
Serial Number:
For use with Flooded, AGM and High Performance AGM Batteries. Not for use with Gel batteries, 4D or 8D large capacity batteries.
P R O F E S S I O N A L G R A D E S E R I E S
elite series
100%
WATERPROOF &
energy
SALTWATER
saving
TESTED
technology
BC
3-Year Warranty
Amps
Banks
Cables Size
AC In
24
2
6'
13.125"x 7.125" x 2.75"
90-135
24
3
6'
13.125"x 7.125" x 2.75"
90-135
36
2
6'
13.5"x 9.375" x 4"
90-135
36
3
6'
13.5"x 9.375" x 4"
90-135
36
4
6'
13.5"x 9.375" x 4"
90-135
Date of Purchase:
™
