ProMar
Digital
Visit ProMariner online at www.promariner.com, for a complete
selection of quality marine products...
Here are just a few:
ProMite Series - Recreational Grade Waterproof Marine Battery Chargers
ProSport Series - Heavy Duty Recreational Grade Waterproof
Marine Battery Chargers
ProTournament Series - Professional Grade Tournament
Waterproof Marine Battery Chargers
ProIsoCharge Series - Digitally Controlled Zero Loss Charging Isolators
Digital Mobile Charge In-Transit Chargers
Battery Maintainers
AC Plug Holders
Battery Isolators
Isolation Transformers
Galvanic Isolators and Monitored Systems
Corrosion Control Products
Waterproof Marine Binoculars
Gold Plated Fuses and Holders
A Complete Line of Hand Held Test Meters
Online Technical Support and Service Support
Visit frequently, we are always adding new products for your
boating enjoyment!
Professional Mariner, LLC
200 International Drive, STE 195
Portsmouth, New Hampshire 03801
TEL: 603-433-4440
FAX: 603-433-4442
www.promariner.com
specifications subject to change without notice
Performance Charging
12/11 A
ProMar
Digital

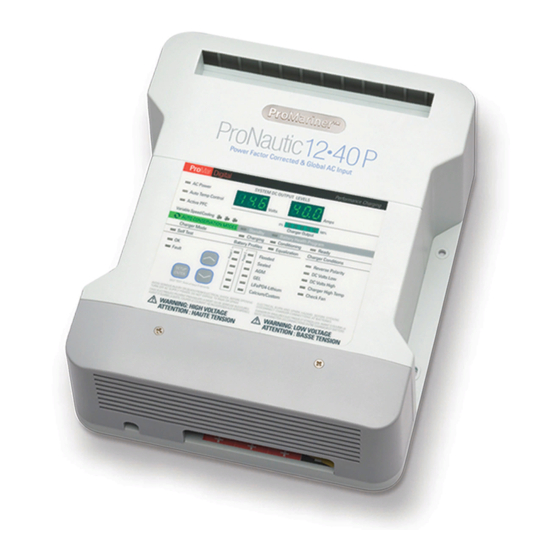

ProNauticP Series Instruction Manual
Models
Part No.
ProNautic1210P
63110
ProNautic1215P
63115
ProNautic1220P
63120
ProNautic1230P
63130
ProNautic1240P
63140
ProNautic1250P
63150
ProNautic1260P
63160
ProNautic2420P
63170
ProNautic2430P
63180
IMPORTANT NOTICE
This manual contains important safety and operating instructions for the ProNauticP Series Chargers.
Please save and read all safety, operating and installation instructions before installing or applying
AC power to your ProNauticP Charger.
Your Satisfaction is Important to Us!
Do not return this product to retailer or dealer for any service or warranty requirements.
Please call our Customer Care Department at 800-824-0524 from 8:30 am to 5pm Eastern Time
for any warranty, service or installation assistance. Thank you - ProMariner Customer Care
PLEASE RECORD YOUR:
PLEASE RECORD YOUR:
Model Number:
Serial Number:
Model Number:
Serial Number:
Performance Charging
Amperage
Banks
Volts
10 Amps
2 Banks
15 Amps
3 Banks
20 Amps
3 Banks
30 Amps
3 Banks
40 Amps
3 Banks
50 Amps
3 Banks
60 Amps
3 Banks
20 Amps
3 Banks
30 Amps
3 Banks
Date of Purchase:
Date of Purchase:
12
12
12
12
12
12
12
24
24
Advertisement
Table of Contents
Troubleshooting
Related Manuals for ProMariner ProNautic 1210P
Summary of Contents for ProMariner ProNautic 1210P
- Page 1 Portsmouth, New Hampshire 03801 Please call our Customer Care Department at 800-824-0524 from 8:30 am to 5pm Eastern Time TEL: 603-433-4440 for any warranty, service or installation assistance. Thank you - ProMariner Customer Care FAX: 603-433-4442 www.promariner.com PLEASE RECORD YOUR:...
-
Page 2: Table Of Contents
DAMAGE – If any parts are missing or damaged, or the unit has been damaged in 30 Amps PP1230 – 3 Outputs shipping contact ProMariner Customer Service at 1-800-824-0524, please do not 40 Amps PP1240 – 3 Outputs take it back to place of purchase. -
Page 3: Introduction
This manual is written to assist in the installation of your new ProNauticP Series Charger; however, since this is a permanent AC and DC hardwired installation, ProMariner strongly The ProNauticP Series is designed to be installed in an area where the charger will NOT be ®... -
Page 4: Important Safety Instructions
Warning Important Safety Instructions 7. WARNING – RISK OF EXPLOSIVE GASES. WARNING: HIGH VOLTAGE / ATTENTION : HAUTE TENSION WARNING: HIGH VOLTAGE / ATTENTION : HAUTE TENSION a) WORKING IN THE VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. BATTERIES GENERATE AVOID SERIOUS INJURY OR DEATH FROM ELECTRICAL SHOCK. -
Page 5: Electrical Connections
AND the battery(s). Do not use existing cables NOTE: ProMariner highly recommends that this unit be installed by an ABYC Certified Electrical if they are not in compliance with the sizes detailed in this manual. If you have any doubt Technician. - Page 6 Installation Installation CAUTION Make sure AC Shore Power is Disconnected from the Boat and there is no presence Please note DC organizer is color of AC Power prior to installation. For new installations always connect Batteries as the LAST STEP. coded ensuring proper polarity If you are replacing an existing battery charger please disconnect the battery charger output cables connections are made.
- Page 7 Fuses and holders are available through ProMariner or your local marine supply store. 3. Ground - This is extremely important and often overlooked. There is one common battery...
-
Page 8: Setup And Operation
***Factory Default charging profile is Sealed 2 (14.6VDC Conditioning, 13.4 VDC Float) Verify all connections are tight, corrosion free and of good integrity. BATTERY TYPES - A word on battery types and the ProMariner ProNauticP. As noted in the With AC power applied (ProNauticP Charger breaker and shore/station power main ON),... -
Page 9: Troubleshooting
Setup and Operation Setup and Operation The ProNauticP is a fully automatic battery charger. The features listed below can be selected NOTE: This LED configuration indicates that the charger is functioning normally and does not during initial set-up (see Programming section) or upon a new battery installation. Normal need any further attention. -
Page 10: Battery Types
Setup and Operation Programming SELECTING BATTERY TYPE Charger Service Conditions To select a battery type/charging profile perform the following: DC output service Indicates a reverse polarity situation 1. Press and hold the “Setup/Enter” button for 5 seconds. (reverse polarity) (see troubleshooting) 2. -
Page 11: Programming
The ProNauticP includes advanced fault indication. Faults, if indicated, may require service 4. Press the “Setup/Enter” button to confirm selection. from ProMariner. For inquiries and service information Please call our Customer Care NOTE: If no action is taken after 15 seconds, the unit reverts to 100% power. -
Page 12: Dimensions
Maintenance Dimensions ProNauticP 12volt 10-40 Amp and 24 volt 20 Amp Dimensions Inches (mm) This unit is solid state and requires no constant adjustment or constant attention; however, the following items should be checked: Maintenance Item Start Up Monthly 7 3/4” (198 mm) Verify LED status panel shows no fault condition and indicates normal operation. - Page 13 Dimensions Dimensions ProNauticP (12 volt) 50-60 Amp and (24 volt) 30 Amp Dimensions Inches (mm) Optional Remote Dimensions Inches (mm) 7 3/4” (198 mm) 3 1/2” (90 mm) ProNautic 12 60 P • Power Factor Corrected & Global AC Input 3 1/2”...
-
Page 14: Typical Wiring Configuration
Typical Wiring Configurations Typical Wiring Configurations Typical 3 Bank12 Volt DC Common Ground Installation: Typical 2 Bank12 Volt DC Common Ground Installation: ProNautic 12 60 P ProNautic 12 60 P • • Case Ground Case Ground Power Factor Corrected & Global AC Input Power Factor Corrected &... - Page 15 ATTENTION : BASSE TENSION AC Input with the sale of this product. To make a claim under warranty, go to www.promariner.com and click on the support tab DC Charger Output Main Grounding Bus and follow the instructions making sure to identify the product and the problem. If you can...
- Page 16 Notes Notes...
