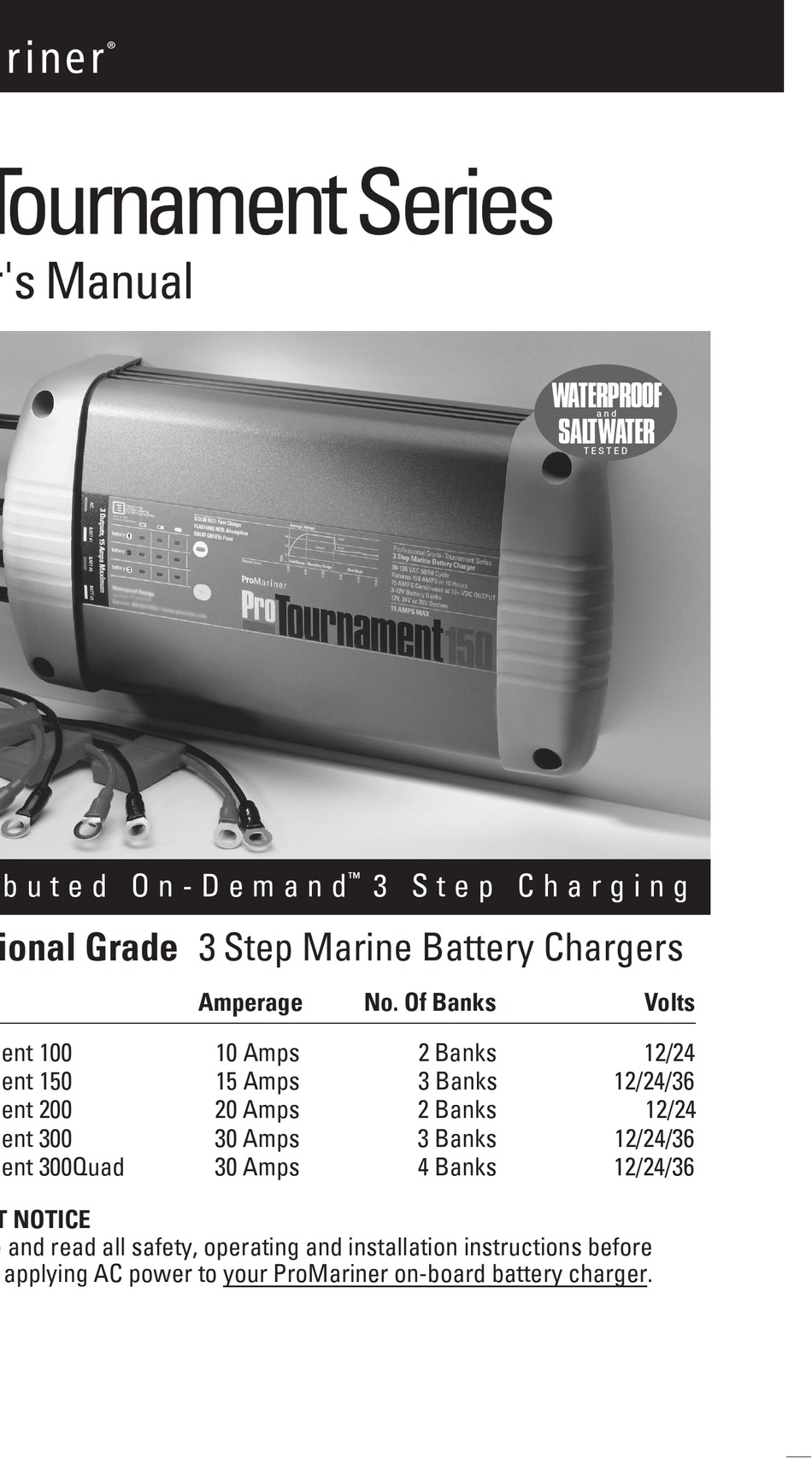

ProT ournament Series
Owner's Manual
D i s t r i b u t e d O n - D e m a n d
Professional Grade 3 Step Marine Battery Chargers
Models
ProTournament 100
ProTournament 150
ProTournament 200
ProTournament 300
ProTournament 300Quad
IMPORTANT NOTICE
Please save and read all safety, operating and installation instructions before
installing or applying AC power to your ProMariner on-board battery charger.
®
Amperage
10 Amps
15 Amps
20 Amps
30 Amps
30 Amps
™
3 S t e p C h a r g i n g
No. Of Banks
2 Banks
3 Banks
2 Banks
3 Banks
4 Banks
WATERPROOF
a n d
SALTWATER
T E S T E D
Certified To:
U. L . 1236 Marine
FCC Class B
Volts
12/24
12/24/36
12/24
12/24/36
12/24/36
