Levelflex M FMP40 with PROFIBUS PA
Endress + Hauser

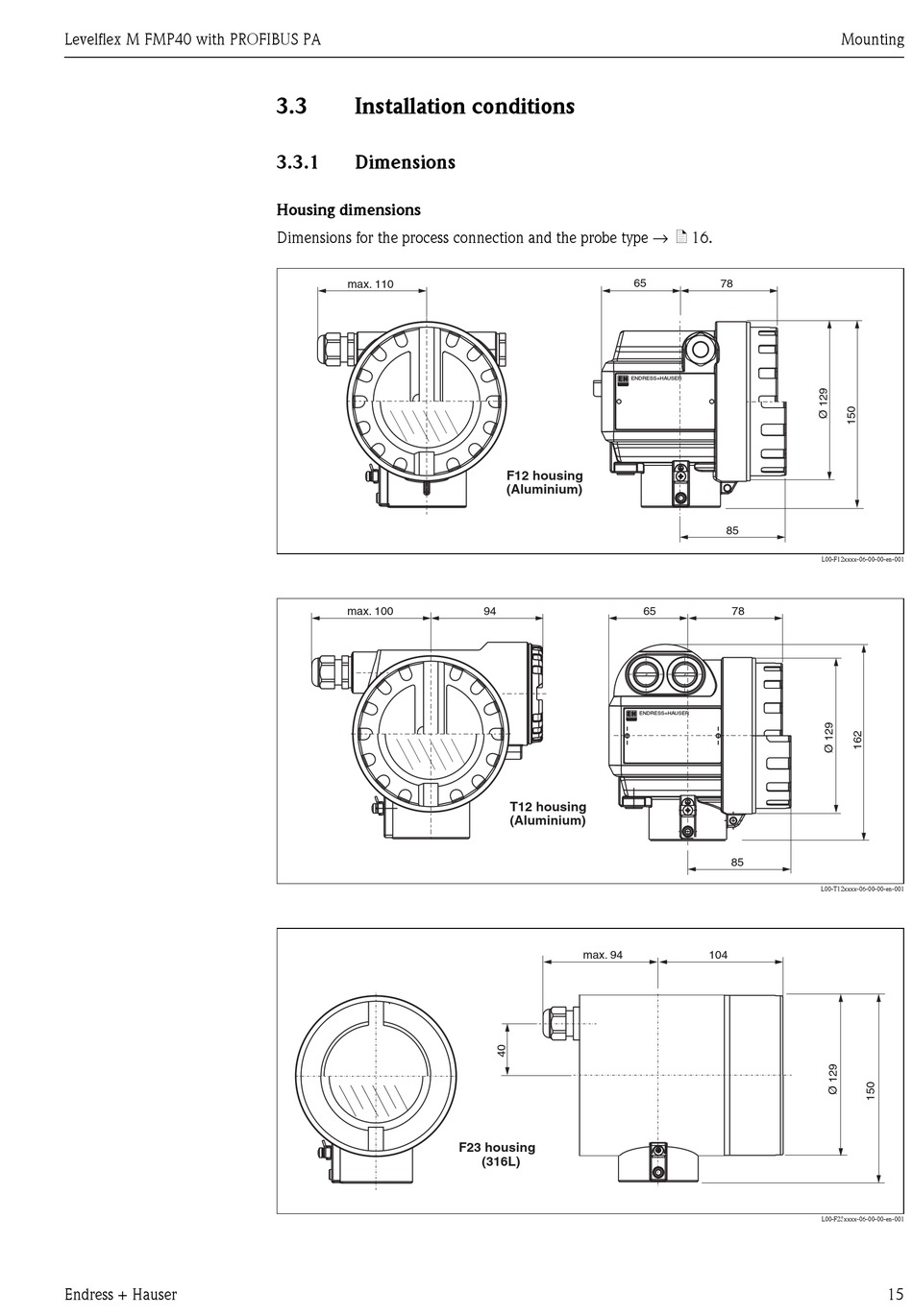

3.3
Installation conditions
3.3.1
Dimensions
Housing dimensions
Dimensions for the process connection and the probe type → ä 16.
max. 110
max. 100
F12 housing
(Aluminium)
94
T12 housing
(Aluminium)
max. 94
F23 housing
(316L)
65
78
ENDRESS+HAUSER
85
65
78
ENDRESS+HAUSER
85
104
Mounting
L00-F12xxxx-06-00-00-en-001
L00-T12xxxx-06-00-00-en-001
L00-F23xxxx-06-00-00-en-001
15
