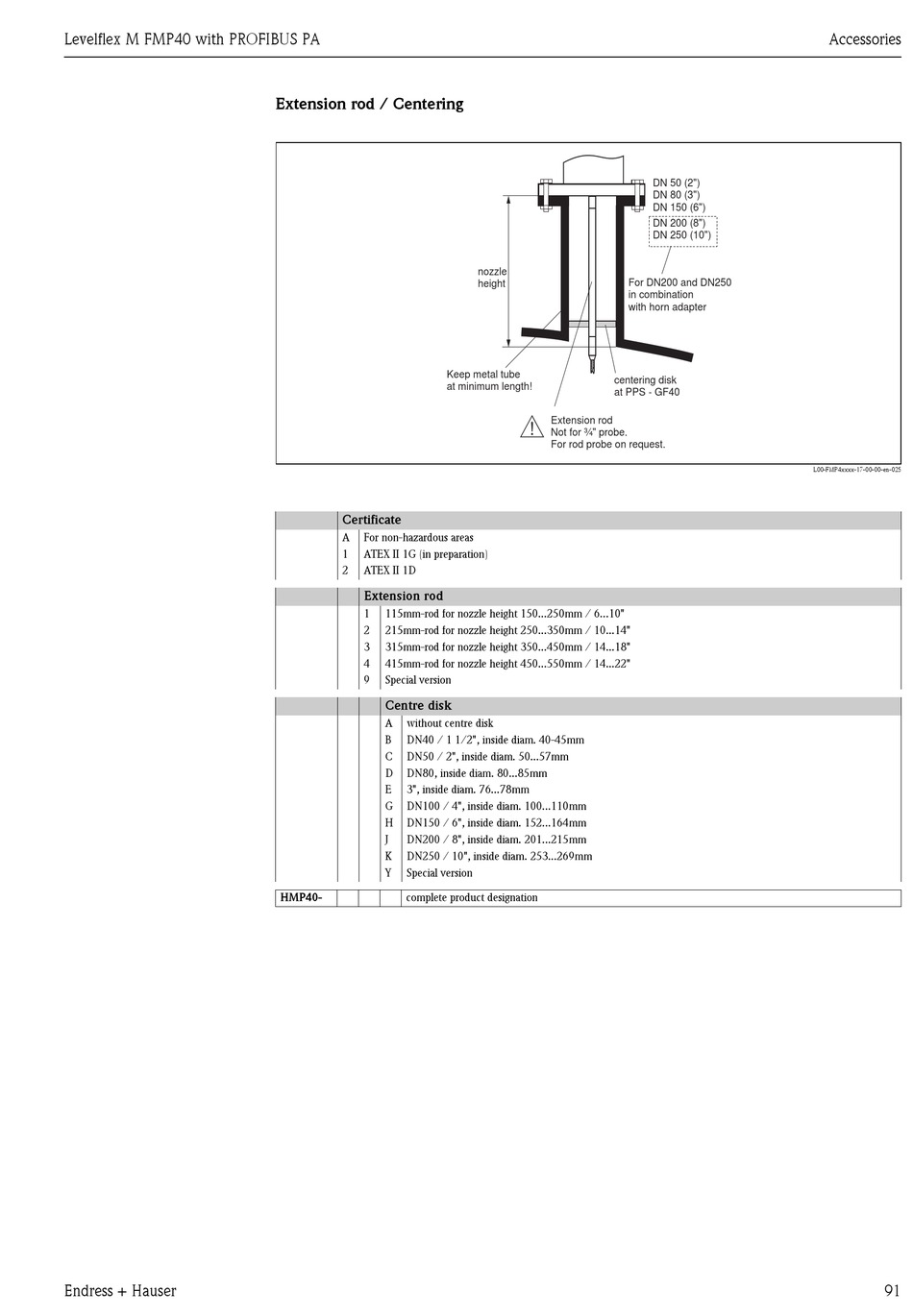

Extension rod / Centering
Keep metal tube
at minimum length!
Certificate
A For non-hazardous areas
1 ATEX II 1G (in preparation)
2 ATEX II 1D
Extension rod
1 115mm-rod for nozzle height 150...250mm / 6...10"
2 215mm-rod for nozzle height 250...350mm / 10...14"
3 315mm-rod for nozzle height 350...450mm / 14...18"
4 415mm-rod for nozzle height 450...550mm / 14...22"
9 Special version
Centre disk
A without centre disk
B DN40 / 1 1/2", inside diam. 40-45mm
C DN50 / 2", inside diam. 50...57mm
D DN80, inside diam. 80...85mm
E 3", inside diam. 76...78mm
G DN100 / 4", inside diam. 100...110mm
H DN150 / 6", inside diam. 152...164mm
J DN200 / 8", inside diam. 201...215mm
K DN250 / 10", inside diam. 253...269mm
Y Special version
HMP40- complete product designation
nozzle
For DN200 and DN250
height
in combination
with horn adapter
centering disk
at PPS - GF40
#
Extension rod
Not for ¾" probe.
For rod probe on request.
DN 50 (2")
DN 80 (3")
DN 150 (6")
DN 200 (8")
DN 250 (10")
