5.0

LOCATING THE UNIT

The location of the unit shall be selected based on air distribution in the room and service
access requirement. System 2100 air cooled series units are available with two air flow
configurations. The down flow units are used for raised floor applications. The up flow units
with plenum or duct connection are available for rooms without raised floor. Refer to unit
dimension drawing for dimension and access requirements. Proper clearance is important for
the unit function and access to various components for service.
Front clearance: 36"
Left clearance: 36"
Right clearance: 36"
 Install unit on leveled solid floor that can support the unit weight and vibrations.
 Securely mount the unit with floor and brace it with wall if needed.
 Install the unit closer to the largest heat load.
Rev. 01
05/27/2016

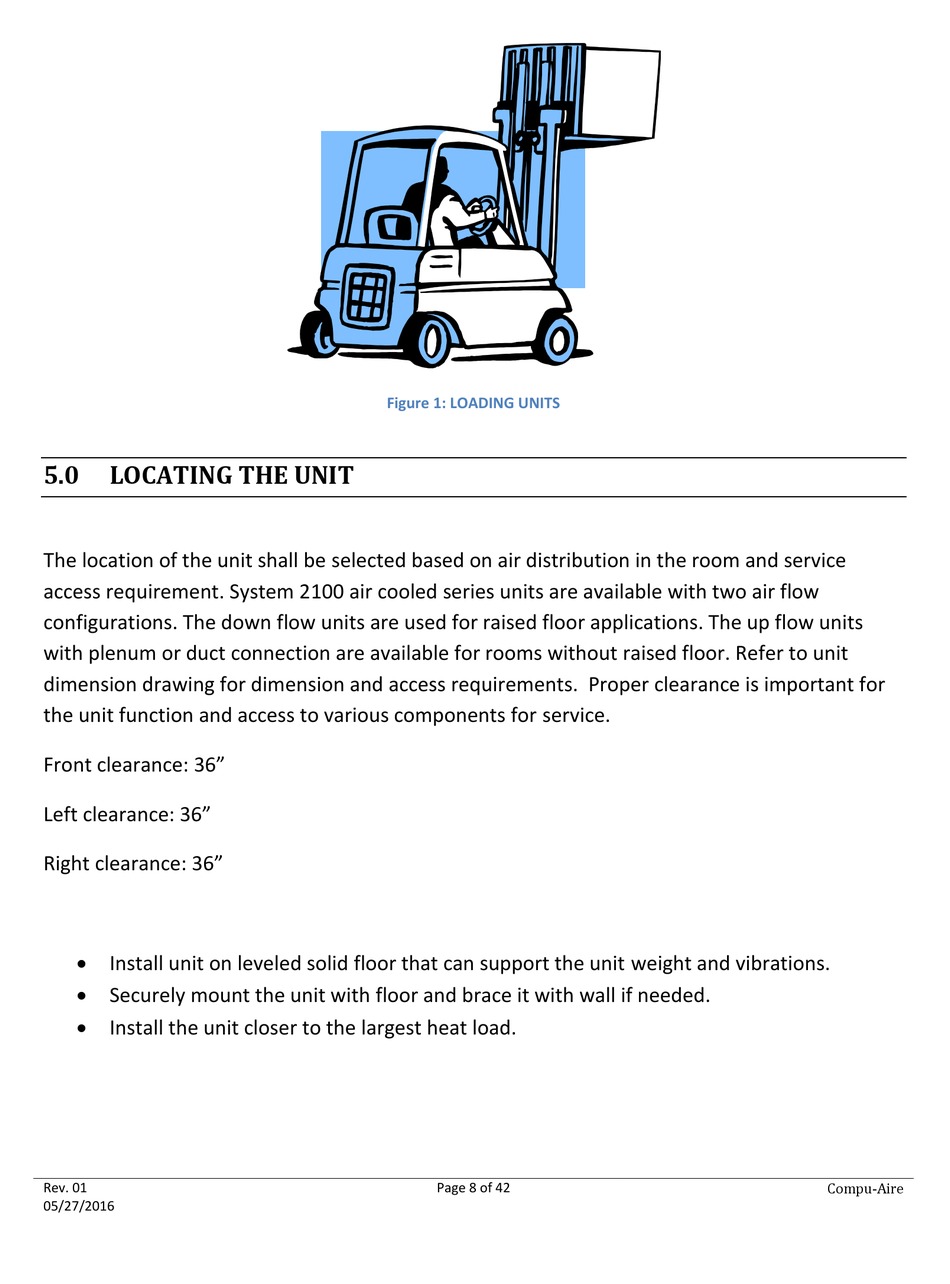

Figure 1: LOADING UNITS

Page 8 of 42
