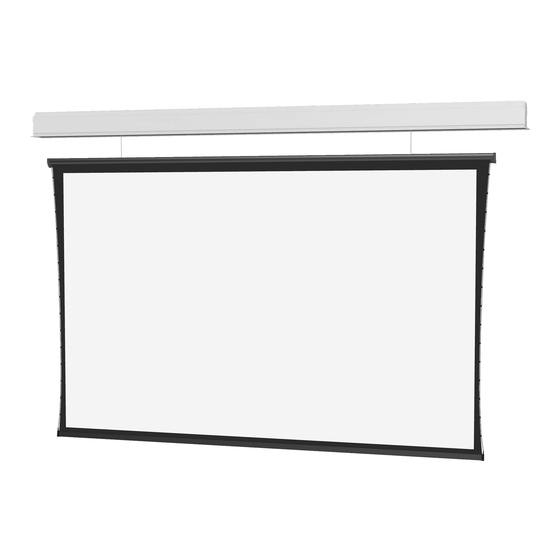

- Page 1 INSTRUCTION BOOK FOR Wireline Advantage ™ ®...
-
Page 2: Important Safety Instructions
Important Safety Instructions Case Installation When using your video equipment, basic safety precautions The case provides multiple attachment points for bolts, should always be followed, including the following: cables, or threaded rod. Page 4 shows threaded rod installed. The variable position-mounting bracket may be Read and understand all instructions before using. - Page 3 Installation (Suggested) 1/2" Threaded Rod (Not Included) 9 1/8" Attached to Mounting Bracket Electrical Junction Box Screen Roller 12 3/16" 11" Audience 11 7/16" Side Self-Trimming Flange Self-Trimming Access Door Flange Finished 13 1/8" Ceiling Variable Position Mounting Brackets Electrical Junction Box...
- Page 4 Screen Adjustment Surface travel is set to stop automatically with 18" of wire travel out of the case. Use the supplied radio frequency remote control to make adjustments to the amount of travel. More Screen Drop Run screen in down direction until it reaches lower limit and stops.
- Page 5 120V Wiring Diagram White (Common) Black (Hot) Power Input 120VAC / 60Hz Green (Ground) Ground 240V Wiring Diagram Blue (Common) Brown (Hot) Power Input 220VAC / 50Hz Green/Yellow (Ground) Ground...
-
Page 6: Troubleshooting
Troubleshooting Visit www.da-lite.com to find installation and troubleshooting You can contact us by email at info@da-lite.com or by phone tutorials. You will also find a link to Live Chat for interactive at 800.622.3737 or 574.267.8101 with any additional support. troubleshooting questions. - Page 8 Da-Lite’s sole obligation under this warranty shall be to repair or to replace (at Da-Lite’s option) the defective part of the merchandise. Returns for service should be made to your Da-Lite dealer. If it is necessary for the dealer to return the screen or part to Da-Lite, transportation expenses to and from Da-Lite are payable by the purchaser and Da-Lite is not responsible for damage in shipment.
