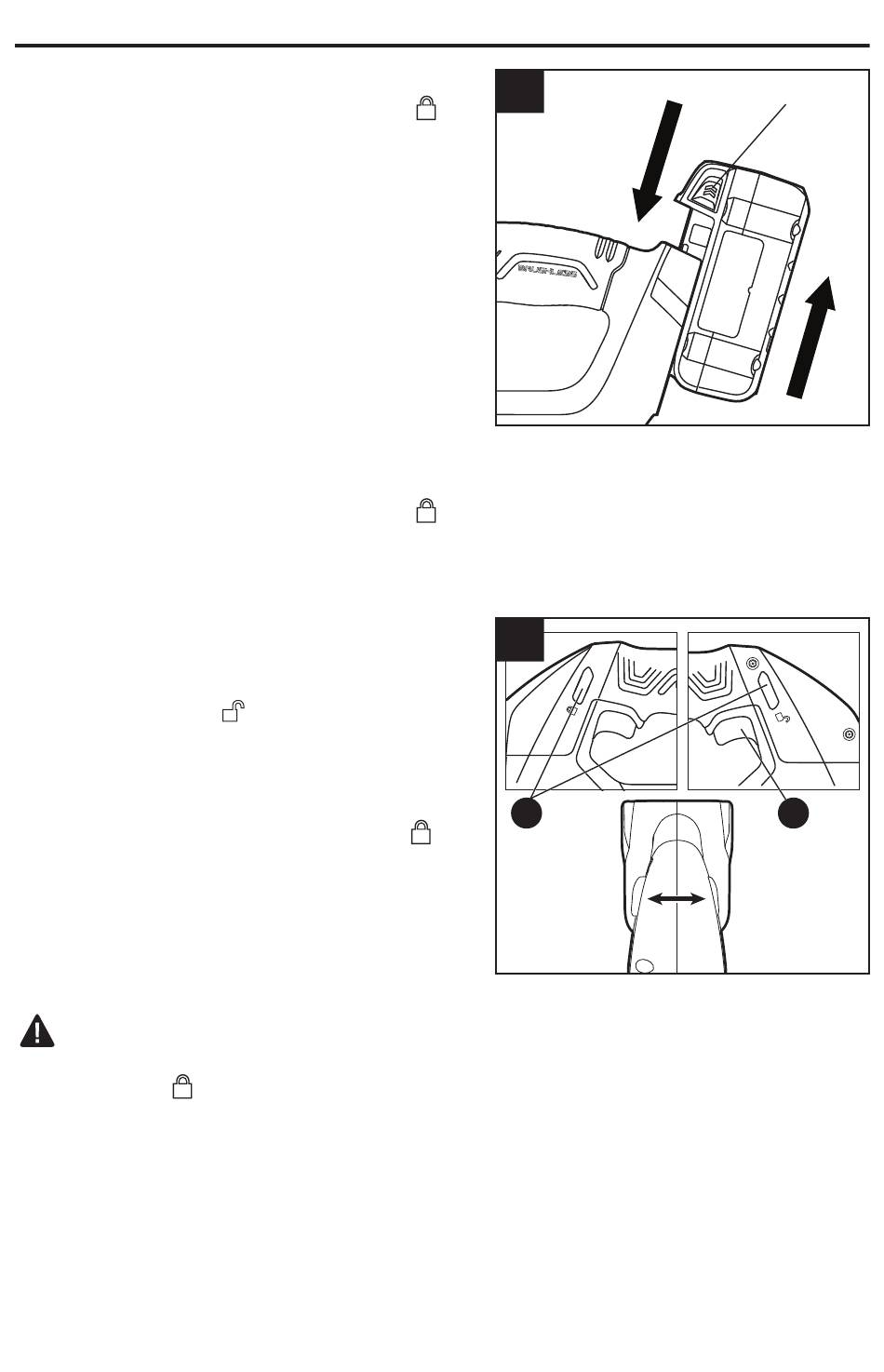

OPERATING INSTRUCTIONS

1. To Attach Battery Pack
a. Press the switch-lock button (A) marked
set it to the lock position.
b. Align the raised portion on the battery pack
(not included) with the grooves on the bottom
of the tool, then slide the battery pack onto the
saw as shown.
c. Make sure that the latches on the battery
pack snap into place and the battery pack is
secured to the tool before beginning operation.
NOTICE: When placing the battery pack on the
tool, be sure that the raised rib on battery pack
aligns with the groove on the tool and the latches
snap into place properly. Improper attachment of
the battery pack can cause damage to internal components.
To Detach Battery Pack
a. Press the switch-lock button (A) marked
b. Press the battery-release button to release the battery pack.
c. Pull backward on the battery pack to remove it from the tool.
2.
Variable-speed Trigger Switch and
Switch-Lock Button
a. To turn the saw ON, press the switch-lock
button (A) marked
then squeeze the variable-speed trigger
switch (B).
b. To turn the saw OFF, release the trigger
switch. The switch can be locked in OFF by
pressing the switch-lock button marked
reduce the chance of unintentional starting.
c. To vary the speed, simply increase or
decrease the pressure on the variable-speed
trigger switch. The more tightly the variable
speed trigger switch is squeezed, the higher
the speed will be.
WARNING
• Battery tools are always in operating condition. Therefore, always press the switch-lock
button marked
carrying the saw at your side.
to unlock the switch,
to lock the switch or remove the battery when the saw is not in use or when
1
to
Attach
to set it to the lock position.
2
A
to
8
Battery release
button
Detach
B
