Summary of Contents for Jet HVBS-56V

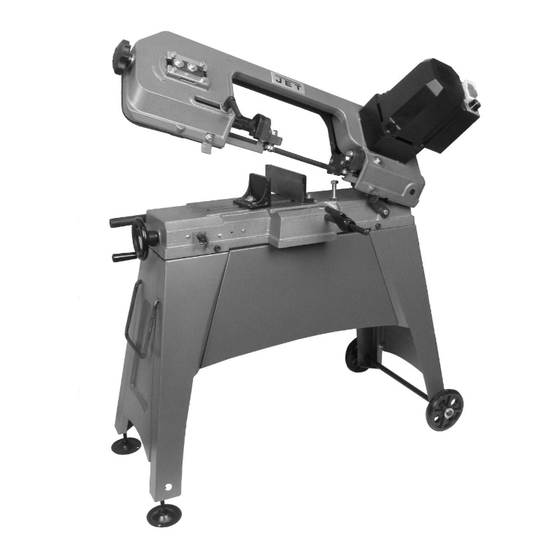

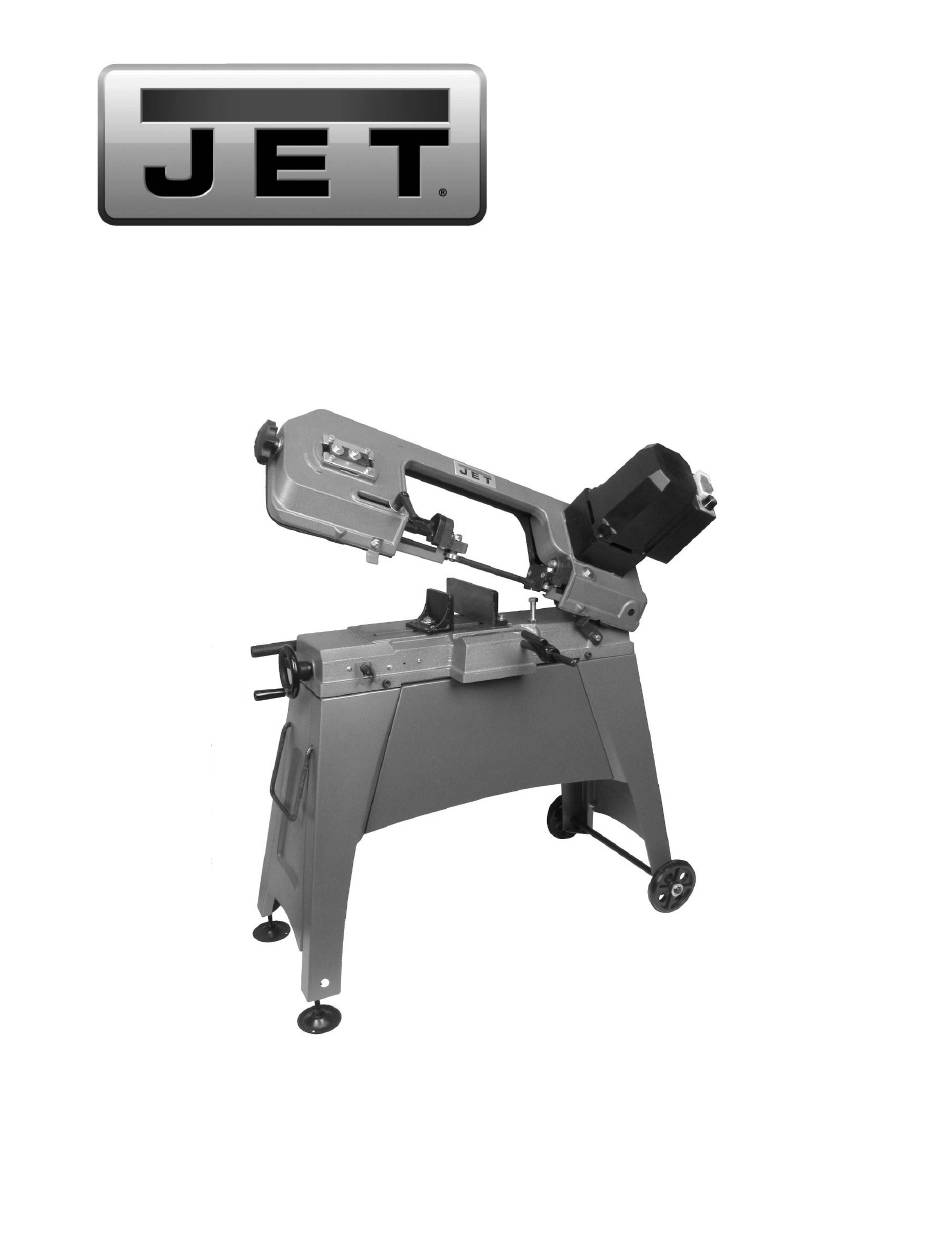

- Page 1 This .pdf document is bookmarked Operating Instructions and Parts Manual Horizontal-Vertical Variable Speed Band Saw Model HVBS-56V 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-414548 Ph.: 800-274-6848 Edition 5 09/2018 www.jettools.com Copyright © 2017 JET...
-
Page 2: Important Safety Instructions
Do not use this band saw for other than its around, carrying on a conversation and “horse- intended use. If used for other purposes, JET play” are careless acts that can result in serious disclaims any real or implied warranty and holds injury. -
Page 3: On/Off Switch Padlock
25. Never leave the machine running unattended. WARNING: This product can expose you to Turn the power off and do not leave the chemicals including lead which is known to the machine until it comes to a complete stop. State of California to cause cancer and birth 26. -
Page 4: About This Manual
If there are questions or comments, please contact your local supplier or JET. JET can also be reached at our web site: www.jettools.com. -
Page 5: Table Of Contents
13.0 Warranty and service ..........................25 The specifications in this manual were current at time of publication, but because of our policy of continuous improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring obligations. -
Page 6: Specifications
4.0 Specifications Model number HVBS-56V Stock number 414548 Motor and Electricals Motor type DC brushed motor Horsepower 1/2 HP (0.375 kW) Motor phase single Voltage 115 V only Cycle 60 Hz Listed FLA (full load amps) Motor speed 1200-3600 RPM On/off switches Magnetic push-button;... -
Page 7: Setup And Assembly
5.3 Unpacking and cleanup 5.0 Setup and assembly Inspect all contents for shipping damage. Compare contents of shipping carton with contents list in this manual. Report any damage Read understand or part shortages to your distributor. instructions before attempting assembly. Band Saw must be disconnected from power during Do not discard packing material until saw is all assembly procedures. -
Page 8: Assembling Stand
Figure 5-3: stand assembly 5.4 Assembling stand 5.6 Additional assembly Refer to Figure 5-3. Remove shipping bracket (P, Figure 5-4) and adjust switch trip (Q) so that it will turn off switch NOTE: Only make fasteners hand-tight at this time. when bow reaches down position. -
Page 9: Vertical Cutting Plate
6.0 Electrical connections Canadian Electrical Code, C22.1. The HVBS-56V Band Saw is rated for 115V power only. The band saw comes with a plug designed for use on a circuit with a grounded outlet that looks like the one pictured in A, Figure 6-1. -
Page 10: Extension Cords
6.2 Extension cords The use of extension cords is discouraged; try to position machines near the power source. If an extension cord is necessary, make sure it is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. -
Page 11: Blade Guide Bearings
If teeth do not orient properly regardless of how Hold bottom nut (L ) to prevent it turning further, blade is positioned, turn blade inside-out. and retighten top nut (L Tension blade enough to hold in place. Repeat above steps for opposite blade guide assembly. -
Page 12: Feed Pressure Adjustment
Figure 7-7 Place a square on table and against ruler. The Figure 7-5 square should lie flat against ruler without a gap. 7.7 Feed pressure adjustment If there is a gap, loosen bolt (H, Figure 7-4) on Feed pressure is the amount of weight the bow is each blade guide assembly and rotate blade allowed to exert upon the workpiece. -
Page 13: Auto Shut-Off Adjustment
Figure 7-10 Figure 7-8 8.0 Operation 7.9 Auto shut-off adjustment The HVBS-56V is equipped with a motor driver The saw is properly adjusted when blade shuts off containing a voltage feedback device to provide just after cut completion. To set this: consistent torque during operation. -
Page 14: Blade Break-In
Consult the blade manufacturer’s literature for break-in of specific blades on specific materials. However, the Figure 8-1: clamping positions following procedure will be adequate for break-in of Adjust blade guides to minimize exposed blade JET-supplied blades lower alloy ferrous area. materials. -
Page 15: User-Maintenance
• Brush has worn to about 1/2-inch long. 9.0 User-maintenance • Signs of crumbling, burning, breaking. • End of brush is rough or pitted. • Abnormal coloration of spring Always disconnect power to • the machine before performing maintenance. Broken lead in spring •... -
Page 16: Troubleshooting Hvbs-56V Band Saw
10.0 Troubleshooting HVBS-56V Band Saw 10.1 Mechanical and electrical problems Symptom Possible Cause Correction * Motor will not start. Low voltage. Check power line for proper voltage. Open circuit in motor or loose Inspect all lead connections on motor for connection. -
Page 17: Replacement Parts
Use good quality blade of appropriate style and tooth pitch for workpiece. Use a cutting fluid when needed. Improper wheel alignment. Inspect and adjust wheel alignment. Contact JET technical service if needed. Wheel bearings/bushings worn. Inspect and replace if needed. Table 4 11.0 Replacement Parts Replacement parts are listed on the following pages. -
Page 18: Hvbs-56V Bed Assembly - Exploded View
11.1.1 HVBS-56V Bed Assembly – Exploded View... -
Page 19: Hvbs-56V Bow Assembly - Exploded View
11.1.2 HVBS-56V Bow Assembly – Exploded View... -
Page 20: Hvbs-56V - Bow And Bed Assemblies Parts List
11.1.3 HVBS-56V – Bow and Bed Assemblies Parts List Index No Part No Description Size 2 ....TS-0561011 ....Hex Nut ................ 1/4"-20 ......1 3 ....TS-0680021 ....Flat Washer ..............1/4" ........3 8 ....TS-0680031 ....Flat Washer ..............5/16"x23xt2 ..... 2 10 .... - Page 21 Index No. Part No. Description Size 67 ....TS-0720081 ....Lock Washer ..............5/16" ........ 3 68 ....TS-081F021 ....Phillips Flat Head Machine Screw ........ 1/4"-20x3/8" ..... 2 68-1 ... TS-081F051 ....Phillips Flat Head Machine Screw *......1/4”-20X3/4” ....1 69 ....
- Page 22 Size 158 ..... TS-0680021 ....Hex Nut ................ 3/16”-18 ......2 160 ..... JET-92 ......JET Logo with 3M adhesive ......... 92x38 mm ....... 1 ....JJ6CS-OEW2 ....Open End Wrench (not shown) ........12/14 mm ......1 ....LM000282 ....ID Label, HVBS-56V (not shown) ..............1 ....
-
Page 23: Hvbs-56V Stand - Exploded View
11.2.1 HVBS-56V Stand – Exploded View 11.2.2 HVBS-56V Stand – Parts List Index No Part No Description Size ....HVBS56M-CSA ... Complete Stand Assembly ................... 1 4-1 ....HVBS56M-S1 ....Left Stand Leg ..................... 1 4-2 ....HVBS56M-S2 ....Right Stand Leg ....................1 4-3 .... -
Page 24: Electrical Connections - Hvbs-56V Band Saw
12.0 Electrical Connections – HVBS-56V Band Saw SQ = Lower (toggle) limit switch S = Electromagnetic switch A = Driver board VR = Variable resistor M = Motor... -
Page 25: Warranty And Service
Accessories; Shop Tools; Warehouse & Dock products; Hand Tools; Air Tools NOTE: JET is a division of JPW Industries, Inc. References in this document to JET also apply to JPW Industries, Inc., or any of its successors in interest to the JET brand. - Page 26 This page intentionally left blank.
- Page 27 This page intentionally left blank.
- Page 28 427 New Sanford Road LaVergne, Tennessee 37086 Phone: 800-274-6848 www.jettools.com...
