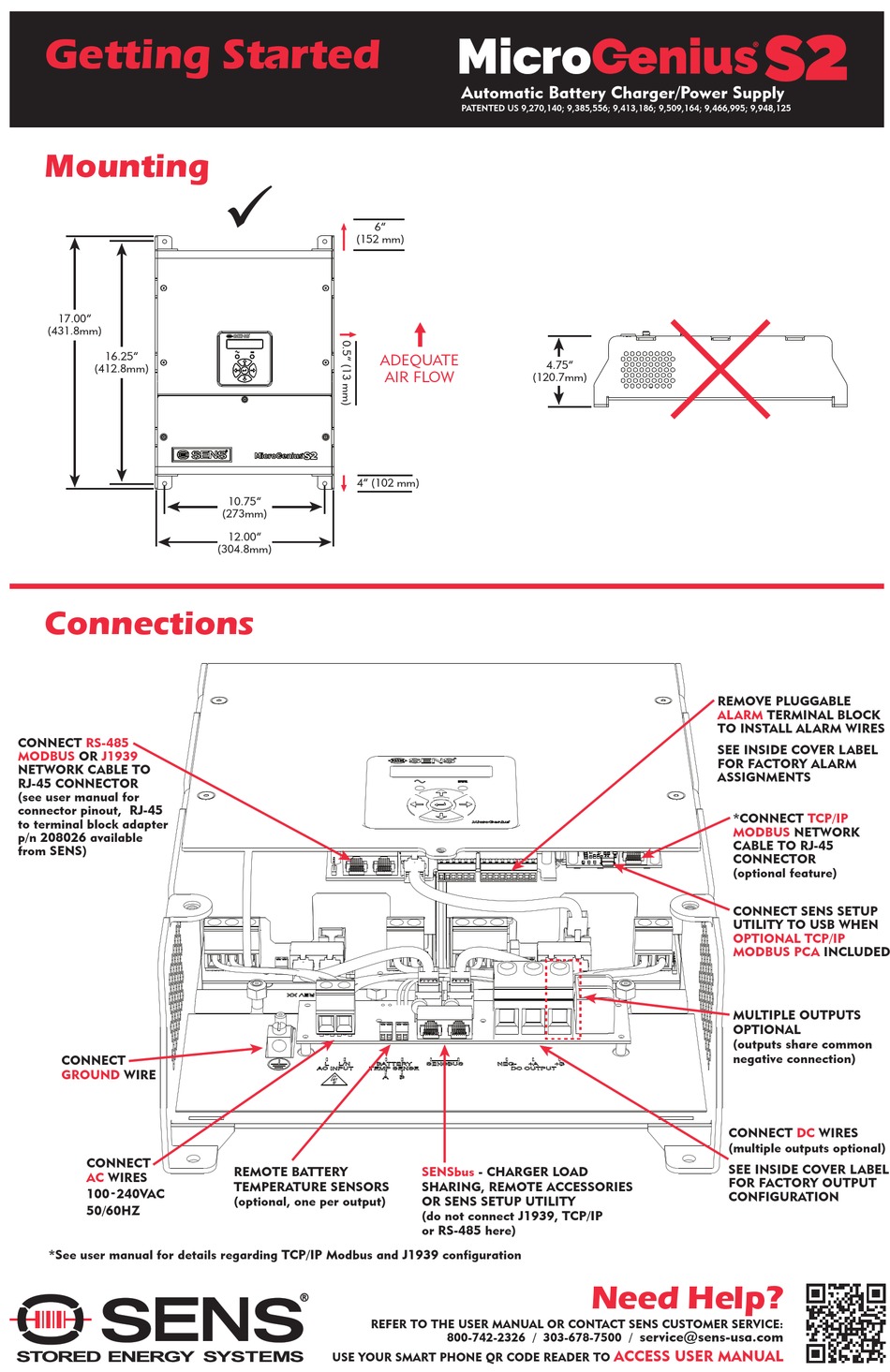

Sens MicroGenius S2 Getting Started

Getting Started

Mounting

17.00"
(431.8mm)
16.25"
(412.8mm)

Connections

CONNECT RS-485
MODBUS OR J1939
NETWORK CABLE TO
RJ-45 CONNECTOR
(see user manual for
connector pinout, RJ-45
to terminal block adapter
p/n 208026 available
from SENS)
CONNECT
GROUND WIRE
CONNECT
AC WIRES
100 - 240VAC
50/60HZ
*See user manual for details regarding TCP/IP Modbus and J1939 configuration

6"
(152 mm)
ADEQUATE
AIR FLOW
4" (102 mm)
10.75"
(273mm)
12.00"
(304.8mm)
REMOTE BATTERY
TEMPERATURE SENSORS
(optional, one per output)
REFER TO THE USER MANUAL OR CONTACT SENS CUSTOMER SERVICE:
USE YOUR SMART PHONE QR CODE READER TO
Automatic Battery Charger/Power Supply
PATENTED US 9,270,140; 9,385,556; 9,413,186; 9,509,164; 9,466,995; 9,948,125
4.75"
(120.7mm)
SENSbus - CHARGER LOAD
SHARING, REMOTE ACCESSORIES
OR SENS SETUP UTILITY
(do not connect J1939, TCP/IP
or RS-485 here)
800-742-2326 / 303-678-7500 /
REMOVE PLUGGABLE
ALARM
TO INSTALL ALARM WIRES
SEE INSIDE COVER LABEL
FOR FACTORY ALARM
ASSIGNMENTS
*CONNECT
MODBUS
CABLE TO RJ-45
CONNECTOR
(optional feature)
CONNECT SENS SETUP
UTILITY TO USB WHEN
OPTIONAL TCP/IP
MODBUS PCA
MULTIPLE OUTPUTS
OPTIONAL
(outputs share common
negative connection)
CONNECT
(multiple outputs optional)
SEE INSIDE COVER LABEL
FOR FACTORY OUTPUT
CONFIGURATION
Need Help?
service@sens-usa.com
ACCESS USER MANUAL
TERMINAL BLOCK
TCP/IP
NETWORK
INCLUDED
DC WIRES
