Sens MicroGenius Getting Started

2. SUPPLIED WITH 6FT AC CORD WITH NEMA 5-15 PLUG.
3. SUPPLIED WITH 6FT DC CORD WITH RING TERMINALS.
D

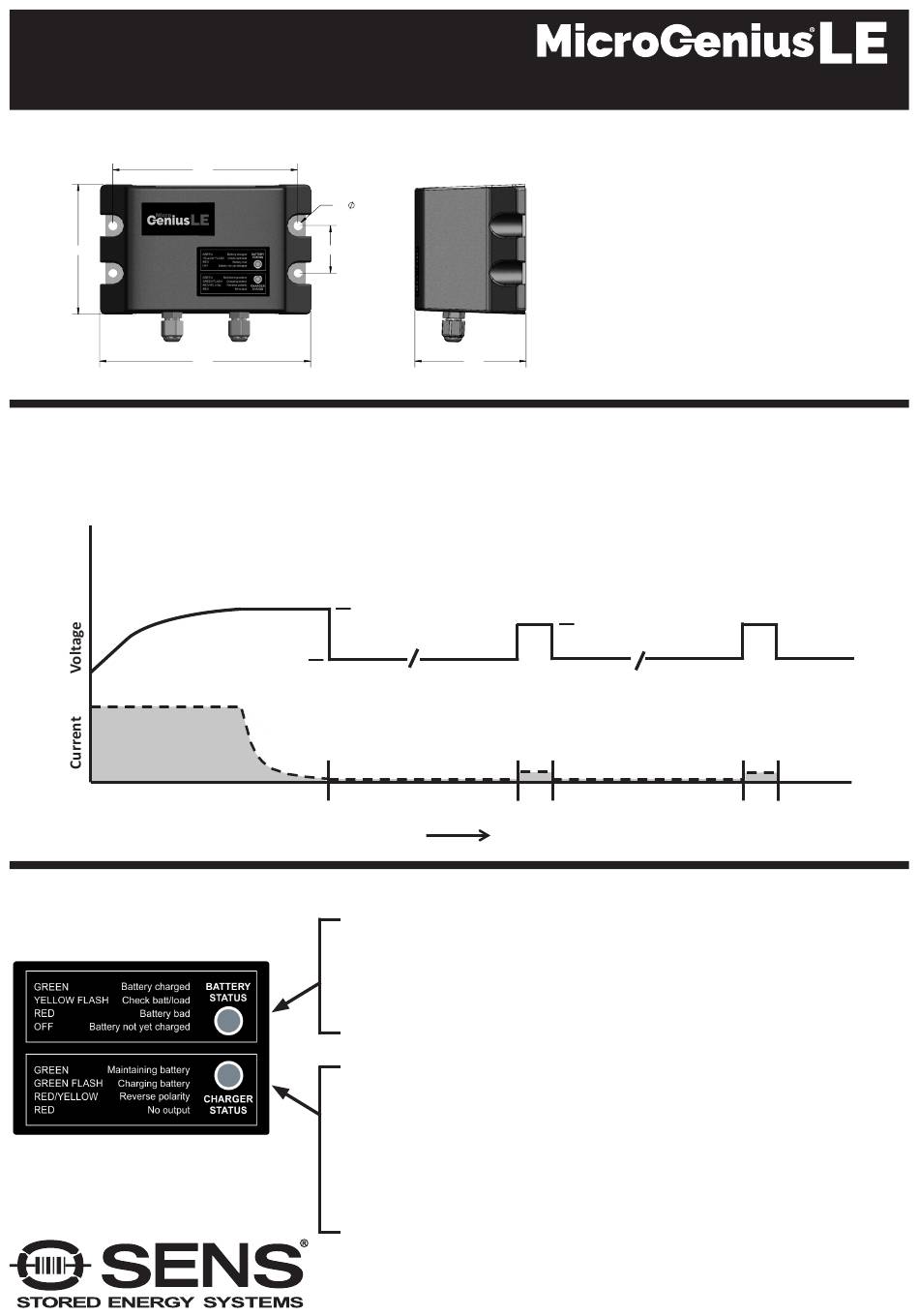

Getting Started
Mounting
C
3.98
B
Dimensions in inches
A
Operation
The charger automatically starts in Boost mode at power-on or after a battery discharge. It remains in Boost mode until the
8 7
battery is fully charged. The charger then shifts to Eco-float mode to lengthen battery life. Refresh mode runs periodically to
insure that the battery remains fully charged. This cycle continues until the next discharge event.
DYNAMIC BOOST
CHARGE MODE
Current accepted
by battery
0
Charger determines time in Boost
charge mode automatically
LEDs/Troubleshooting
5.65
4X .266
1.46
6.46
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN INCHES
1840 INDUSTRIAL CIRCLE
DEFAULT TOLERANCES:
LONGMONT, CO 80501
303-678-7500
ANGLES
WWW.SENS-USA.COM
TWO PLACE DECIMAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE
THREE PLACE DECIMAL
PROPERTY OF STORED ENERGY SYSTEMS, LLC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN
DO NOT SCALE DRAWING
PERMISSION OF STORED ENERGY SYSTEMS, LLC. IS PROHIBITED.
© STORED ENERGY SYSTEMS, LLC
6
14.5/29.0V
12.8/25.6V
YELLOW FLASH - Check battery or load. Boost mode time limit expired indicating exces-
RED/RED FLASH - Battery bad or disconnected. Battery voltage dropped below preset
Note - battery status updated every 100 seconds
GREEN FLASH - Battery is charging in either Boost (steady flash LED) or Refresh mode
RED/YELLOW - Battery is connected backwards. Correct connections and retry.
GREEN/YELLOW - Overvoltage Protection, charger will return to normal operation once

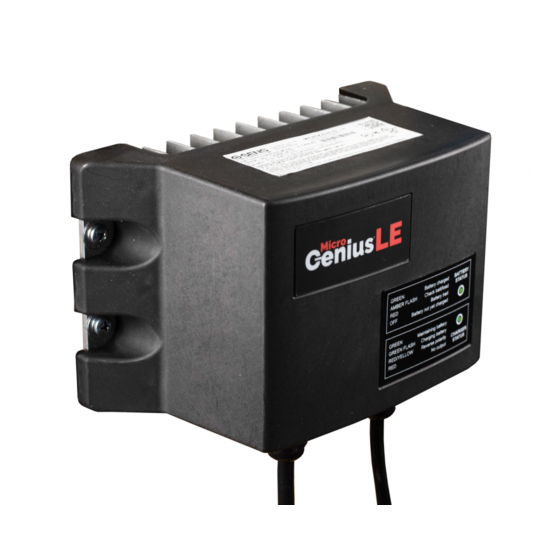

Battery Charger
PATENTED US 9,270,140; 9,385,556; 9,413,186; 9,509,164; 9,948,125
3.41
DESCRIPTION
NAME DATE
DRAWN ERS 8/8/2018
SENS MICROGENIUS LE OUTLINE DRAWING
CHECKED
SIZE
1 DOCUMENT NUMBER
THIRD ANGLE PROJECTION
B
.015
SENS - MGLE
.005
DIMENSIONS & TOLERANCES
PER ASME Y14.5 - 2009
5 4
HELIX HELIX
ECO-FLOAT REFRESH
MODE MODE
~10 hours ~2
hours
Time
GREEN - Battery is charged. Boost cycle complete, charger now in Eco-float.
sive load, battery capacity is too large or battery has an internal short.
threshold within one hour of boost termination. Verify battery
connected. Battery unable to hold charge or has an internal short.
OFF - Battery charging not yet complete.
(2x short flash LED)
GREEN - Maintaining battery in Eco-float mode.
YELLOW - Charger in initial power-on sequence.
RED - No charger output. Verify battery and source voltage are connected.
externally caused over voltage condition is removed.
OFF - AC source not connected. Verify source is connected and has proper
voltage and frequency.
800-742-2326 / 303-678-7500 / service@sens-usa.com
Enclosure rated IP67
Mount vertically for optimal
cooling using #8 - 1/4-20 inch or
M4 - M6 metric screws
Operating Temp -25C to +70C
• 12V, 6A full spec to +50C
• 12V, 10A and 24V, 5A full
spec to +40C
3 2
14.3/28.6V
~10 hours
Need Help?
CONTACT SENS CUSTOMER SERVICE:
D
C
B
A
REV
20
SHEET 1 OF 1
1
~2
hours
