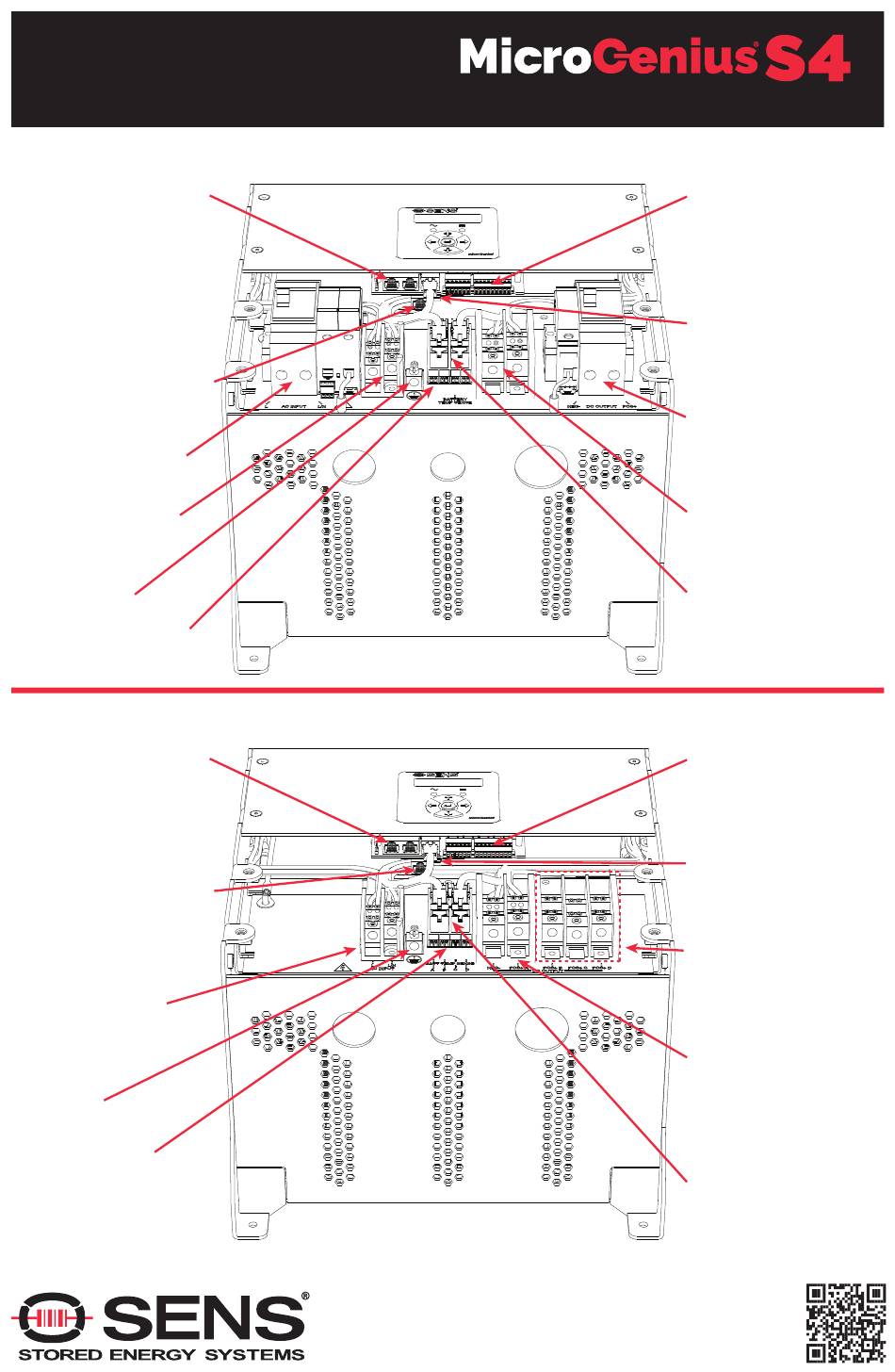

Sens MicroGenius S4 Getting Started

Getting Started
Connections -
CONNECT RS-485 MODBUS
OR J1939 NETWORK CABLE
TO RJ-45 CONNECTOR
(see user manual for
connector pinout, RJ-45 to
terminal block adapter p/n
208026 available from SENS)
*CONNECT TCP/IP MODBUS
NETWORK CABLE TO RJ-45
CONNECTOR
(optional feature)
CONNECT AC WIRES AT
BREAKER TERMINALS
100 - 240VAC, 50/60HZ
DO NOT CONNECT AT
TERMINAL BLOCK WHEN
BREAKER PRESENT
CONNECT
GROUND WIRE
REMOTE BATTERY
TEMPERATURE SENSOR
(connect at leftmost
terminal block)
Connections -
CONNECT RS-485 MODBUS
OR J1939 NETWORK CABLE
TO RJ-45 CONNECTOR
(see user manual for
connector pinout, RJ-45 to
terminal block adapter p/n
208026 available from SENS)
*CONNECT TCP/IP MODBUS
NETWORK CABLE TO RJ-45
CONNECTOR
(optional feature)
CONNECT AC WIRES
AT TERMINAL BLOCKS
100 - 240VAC, 50/60HZ
CONNECT
GROUND WIRE
REMOTE BATTERY
TEMPERATURE SENSORS
(optional, one per output)
*See user manual for details regarding J1939 and TCP/IP Modbus configuration
single output with breakers
single/multiple output, no breakers
REFER TO THE USER MANUAL OR CONTACT SENS CUSTOMER SERVICE:
800-742-2326 / 303-678-7500 /
USE YOUR SMART PHONE QR CODE READER TO
Automatic Battery Charger/Power Supply
PATENTED US 9,270,140; 9,385,556; 9,413,186; 9,509,164; 9,466,995; 9,948,125
Need Help?
ACCESS USER MANUAL
REMOVE PLUGGABLE
ALARM TERMINAL BLOCK
TO INSTALL ALARM WIRES
SEE INSIDE COVER LABEL
FOR FACTORY ALARM
ASSIGNMENTS
CONNECT SENS SETUP
UTILITY TO USB WHEN
OPTIONAL TCP/IP
MODBUS PCA INCLUDED
CONNECT DC WIRES AT
BREAKER TERMINALS
SEE INSIDE COVER LABEL
FOR FACTORY OUTPUT
CONFIGURATION
DO NOT CONNECT AT
TERMINAL BLOCK WHEN
BREAKER PRESENT
SENSbus - CHARGER LOAD
SHARING, REMOTE
ACCESSORIES OR SENS
SETUP UTILITY
(do not connect J1939, TCP/IP
or RS-485 here)
REMOVE PLUGGABLE
ALARM TERMINAL BLOCK
TO INSTALL ALARM WIRES
SEE INSIDE COVER LABEL
FOR FACTORY ALARM
ASSIGNMENTS
CONNECT SENS SETUP
UTILITY TO USB WHEN
OPTIONAL TCP/IP
MODBUS PCA INCLUDED
MULTIPLE OUTPUTS
OPTIONAL
(outputs share common
negative connection)
CONNECT DC WIRES AT
TERMINAL BLOCKS
(multiple outputs optional)
SEE INSIDE COVER LABEL
FOR FACTORY OUTPUT
CONFIGURATION
SENSbus - CHARGER LOAD
SHARING, REMOTE
ACCESSORIES OR SENS
SETUP UTILITY
(do not connect J1939,
TCP/IP or RS-485 here)
