6.

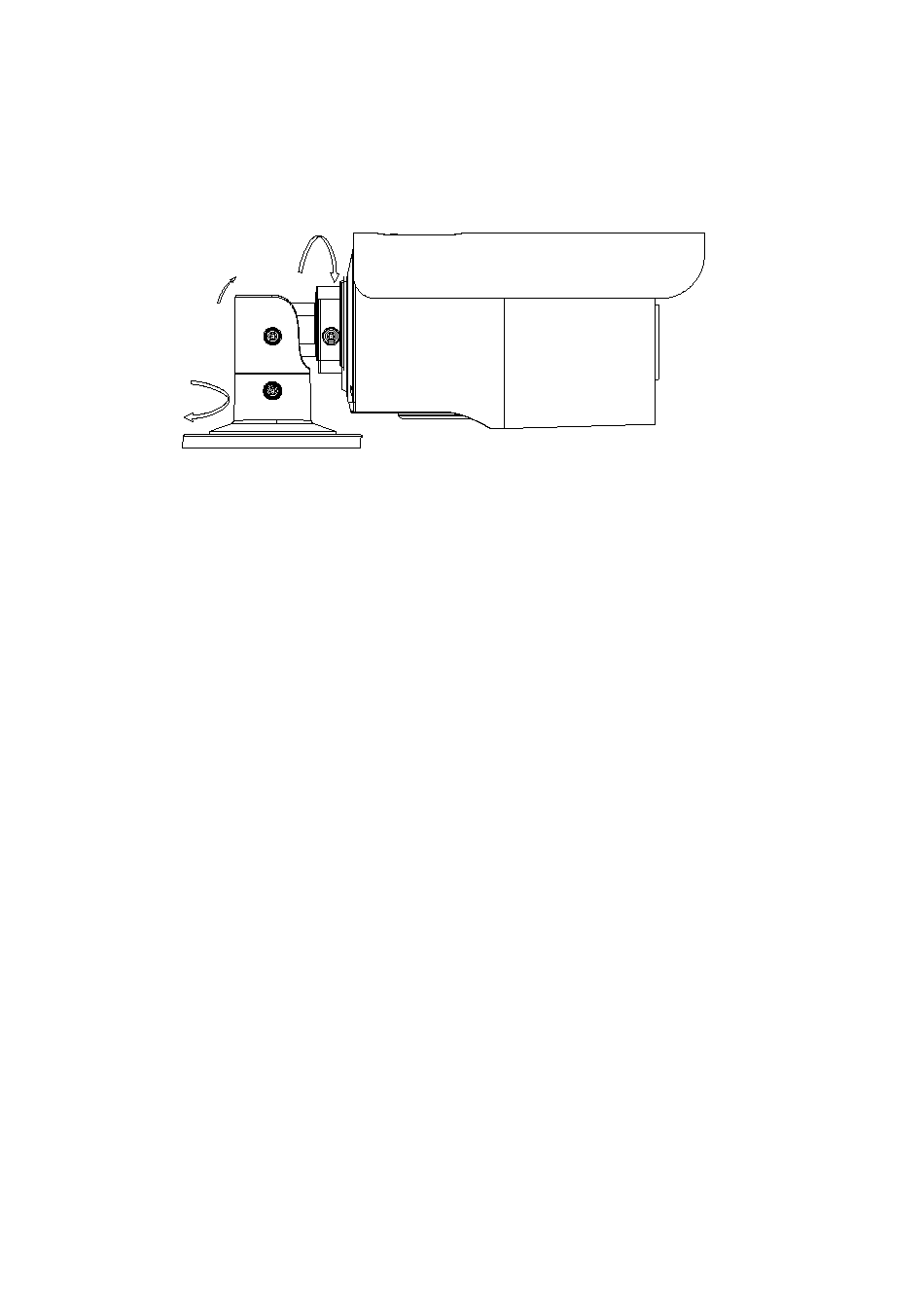

Loosen the three screws and adjust the camera
according to the figure below to get an optimum
angle. Tighten the screw after completing the
adjustment.
90°
360°
7.
Using the zoom and focus buttons on the PTZ
panel of the connected recorder, adjust the
camera's zoom and focus.
Note: The camera has auto-focus capability. When
this feature is enabled, the camera can
automatically adjust itself to achieve the best focus.
Operating temperature range
The camera has a built-in heater that works within
the temperature range of -40 and +60 °C (-40 to
+140 °F). The heater only works at 24 VAC. The
heater is not for de-ice or defog purposes.
10
360°
