TruVision IR Bullet Camera TVB-2203 / TVB-4203 Installation Guide P/N 1072925 • REV A • ISS 10FEB15... -
Page 3: Table Of Contents
Product overview 1 Camera description 3 Installation 4 Programming 8 Setup menu 9 Specifications 10 Regulatory information 11 Product overview This is the TruVision Bullet IR Camera Installation Guide for models TVB-2203/TVB-4203. This guide describes a standard installation. Installation Guide... - Page 4 Package contents: Camera with power 4 M4 screws (4 x and video output 25 mm) and 4 dry wall cables anchors (Ø7.5 x 24.5 mm) for wall or ceiling installation Template Back box Ceiling Mounting 1:Screw Hole for 2:Screw Hole for Bracket Mounting Base...
-
Page 5: Camera Description

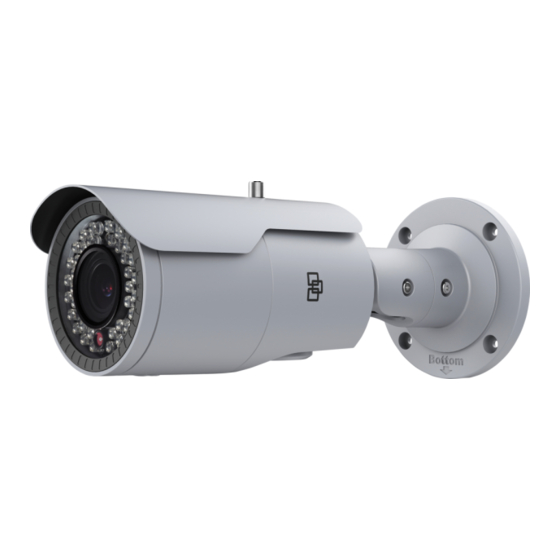

• WEEE and Battery Disposal Camera description Camera Video cable Sunshield Power cable Lens Bracket Back box Installation Guide... -
Page 6: Installation
Installation To install the camera: Using the template, place it level against the mounting surface and mark the position of the mounting holes. Ceiling Mounting 1:Screw Hole for 2:Screw Hole for Bracket Mounting Base Following all local codes, drill and prepare the mounting holes. - Page 7 Route the cables to the cable hole and connect the corresponding cables. Connect a 75 ohm coaxial video cable to the video cable, and connect a 12 VDC power supply to the power cable. Secure the camera to the ceiling or wall with the supplied screws.
- Page 8 Loosen the three camera screws and adjust the camera according to the figure below to get an optimum angle. Tighten the screws after completing the adjustments. Installation Guide...
- Page 9 360° 90° 360° Adjust the zoom screw and focus screw until you get the optimum surveillance angle. Focus Zoom OSD button Use the OSD button to configure the camera parameters. Installation Guide...
-
Page 10: Programming
Programming The camera can be programmed using OSD menus. Once the camera hardware has been installed, you configure the camera by using a TVS-C200 controller (purchase separately). The Setup menu provides access to the camera configuration options. Please refer to the configuration manual for further information on setting up the camera. -
Page 11: Setup Menu
Setup menu Installation Guide... -
Page 12: Specifications
Specifications Power supply 12 VDC Current Max. 420 mA Power consumption Max. 5 W Weight (net) 1350 g (1.97 lb.) Dimensions 105 x 95 x 265.4 mm (4.13 x 3.74 x 10.43 in.) 10 Installation Guide... -
Page 13: Regulatory Information
Regulatory information Copyright: © 2015 United Technologies Corporation. Interlogix is part of UTC Building & Industrial Systems, a unit of United Technologies Corporation. All rights reserved. Trademarks and patents: Trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products. - Page 14 European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info. Contact information: For contact information, see www.interlogix.com or www.utcfssecurityproducts.eu.. Installation Guide...
