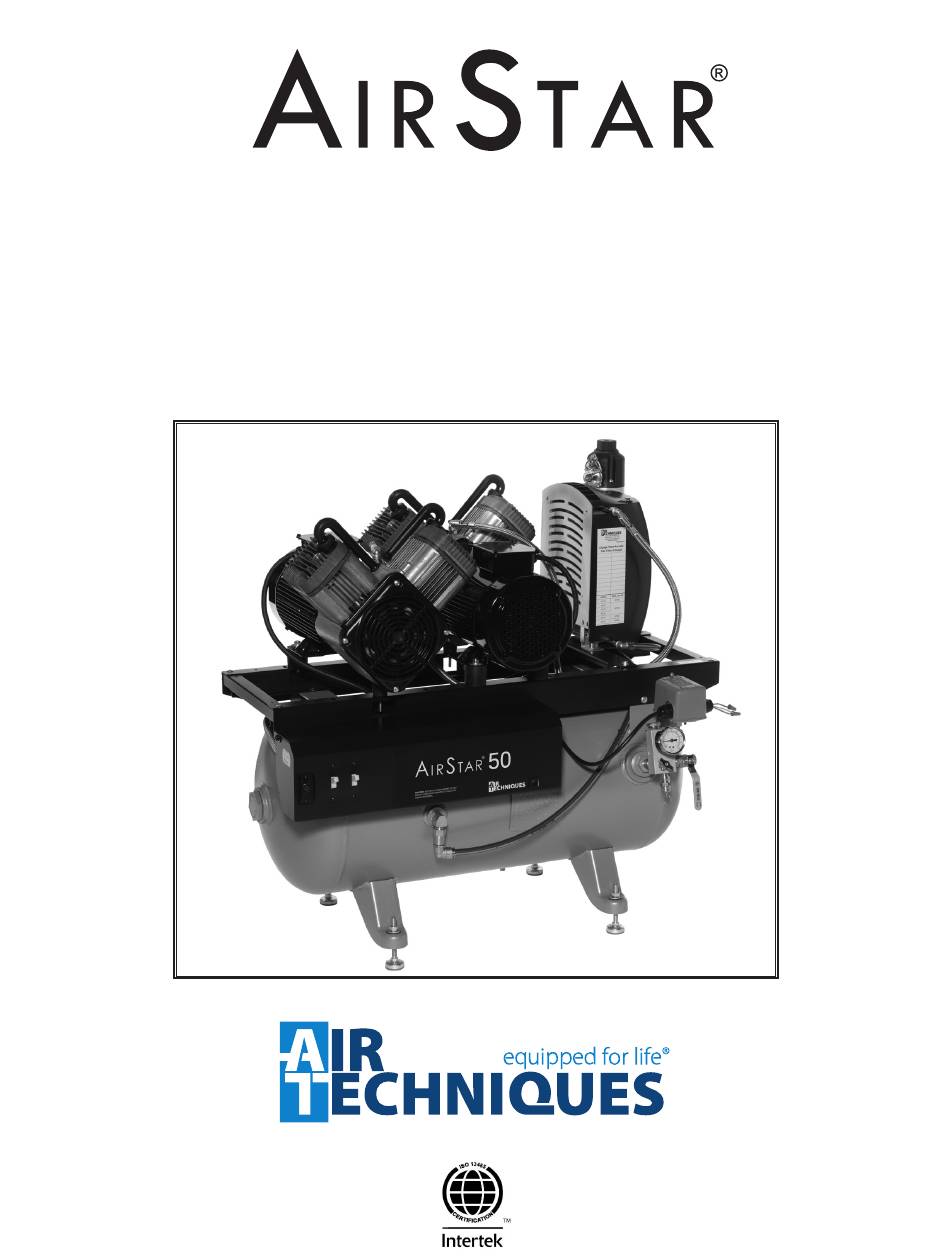

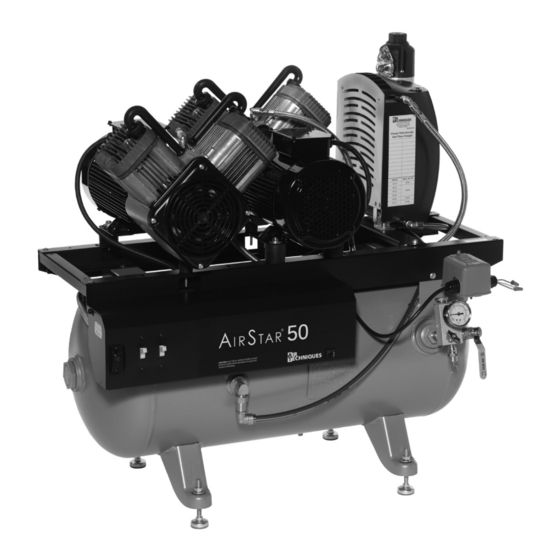

- Page 1 DENTAL AIR SYSTEM AS12, AS22, AS50 AS70, AS12C, AS22C & AS50C International Installation and Operation Manual...
-
Page 2: Table Of Contents
Indicates that the equipment complies with EC REP Schiffgraben 41 the Medical Device Directive 93/42/EEC. 30175 Hannover, Germany Air Techniques, Inc. 1295 Walt Whitman Road Melville, New York, USA 11747- 3062 All AirStar compressors comply with NFPA 99C level 3 requirements Page 2... -
Page 3: Congratulations
RMA issue date . Items returned without an RMA, or included with other products for which an RMA has been issued, may be returned to the customer at the discretion of Air Techniques, lnc . Any item returned under warranty, will be repaired or replaced at our option at no charge provided that our inspection shall indicate it to have been defective . -
Page 4: Key Parts Identification
View B. Right -Side View Supplied Pressure Air Outlet Switch Hose Moisture Monitor Pressure Gauge Drain Valve Pressure 5 Micron Relief Filter Valve Tank Outlet Valve View C. Tank Outlet Assembly Detail View Figure 1. AirStar Parts Location Page 4 Air Techniques, Inc. -
Page 5: Sizing Guide
Note: Compressor motors are designed to run together . Do not run one head at a time unless one head has failed and you are waiting for service . The motor circuit breaker must be kept in the ON position and should not be used as a switch . Air Techniques, Inc. Page 5... -
Page 6: Site Requirements
Protection against harmful ingress of water (5 .3): Ordinary, IPXO Degree of safety in the presence of flammable Not suitable . anesthetics mixture with air or with oxygen or with nitrous oxide (5 .5): Mode of operation (5 .6): 50% Duty Cycle Page 6 Air Techniques, Inc. -
Page 7: Overall Site Requirements
Disconnect Needed when Servicing . Control Cable 18 Gauge 4 Conductor Connect to Pressure Switch . See 24 Volt Circuit Connections . 3/8” FNPT End fitting 1/2” Copper Main Air Line Figure 2. Overall Site Requirements Air Techniques, Inc. Page 7... -
Page 8: Installation Information
I n t e r n a t i o n a l INSTALLATION INFORMATION AIRSTARs are installed by authorized Air Techniques dealer technicians . Please review these installation guidelines to make sure that your AIRSTAR works to capacity for your office . (See Site Requirements, pages 6 &... -
Page 9: Airstar Electrical Connections
Yellow 2 Brown 4 Note 4 Brown 4 Orange 3 Orange 3 Connection Future Use without 2 YEL 24 V Switch 3 ORG See Note 3 4 BRN 24VDC Connections Figure 3. Airstar Electrical Connections Air Techniques, Inc. Page 9... - Page 10 3 minutes, 10 seconds 47 seconds AS22CINT AS50INT & 2 minutes, 50 seconds 42 seconds AS50CINT AS70INT 2 minutes, 40 seconds 40 seconds If the recovery time differ as listed above, call authorized dealer for service. Page 10 Air Techniques, Inc.
- Page 11 AS12, AS22, AS50, AS70, AS12C, AS22C, & AS50C I n t e r n a t i o n a l NOTES Air Techniques, Inc. Page 11...
-
Page 12: Troubleshooting
. Check 24 Volt remote connections . c . Defective circuit breaker . c . Circuit breaker needs to be replaced . Call your authorized Air Techniques dealer for service . 2 . Motor tries to start, cir- a . Voltage too low . If each a . - Page 13 Test heads by turning ONE on at a time. If the motor fails to start, or the circuit breaker trips, the problem may be in that compressor head. Leave the power switch for the defective head in the OFF position. Call your Authorized Air Techniques dealer for service.
-
Page 14: Moisture Monitor And 5 Micron Filter Location
Refer to Figure 4 and check the Service Indicator on the 5-micron Outlet Filter . Red indicates that the filter must be replaced P/N 87168. Green indicates No service is required . Moisture Monitor Service Indicator 5 Micron Filter Figure 4. Moisture Monitor and 5-Micron Filter Location Page 14 Air Techniques, Inc. -
Page 15: Airstar Filter Location
Membrane Dryer Bottom Membrane Filter P/N 86787 Note: Bottom Cover O-ring, P/N 85529, is replaced with the Bottom Membrane Filter & Bowl . See instructions provided with the kit . Figure 5. AirStar Filter Location Air Techniques, Inc. Page 15... -
Page 16: Replacement Parts
REMOTE CONTROL PANEL w/24 V switches 1-Switch Plate Kit 53111 For all AirStars 2-Switch Plate Kit 53251 3-Switch Plate Kit 53250 4-Switch Plate Kit 53133 AS12INT 85180 AS22INT 85962-2M SOUND COVER AS50INT 89523M AS70INT 89574M Page 16 Air Techniques, Inc. -
Page 17: Product Specifications
19 .75 20 .00 20 .50 21 .75 30 .00 32 .00 33 .50 36 .00 With Sound Cover 25 .00 31 .00 36 .50 51 .00 22 .50 22 .25 22 .75 29 .50 Air Techniques, Inc. Page 17... - Page 18 AS12, AS22, AS50, AS70, AS12C, AS22C, & AS50C I n t e r n a t i o n a l NOTES Page 18 Air Techniques, Inc.
- Page 19 AS12, AS22, AS50, AS70, AS12C, AS22C, & AS50C I n t e r n a t i o n a l NOTES Air Techniques, Inc. Page 19...
- Page 20 For over 50 years, Air Techniques has been a leading innovator and manufacturer of dental products. Our priority is ensuring complete satisfaction by manufacturing reliable products and providing excellent customer and technical support. Whether the need is digital imaging, utility room equipment or merchandise, Air Techniques can provide the solution via our network of authorized professional dealers.
