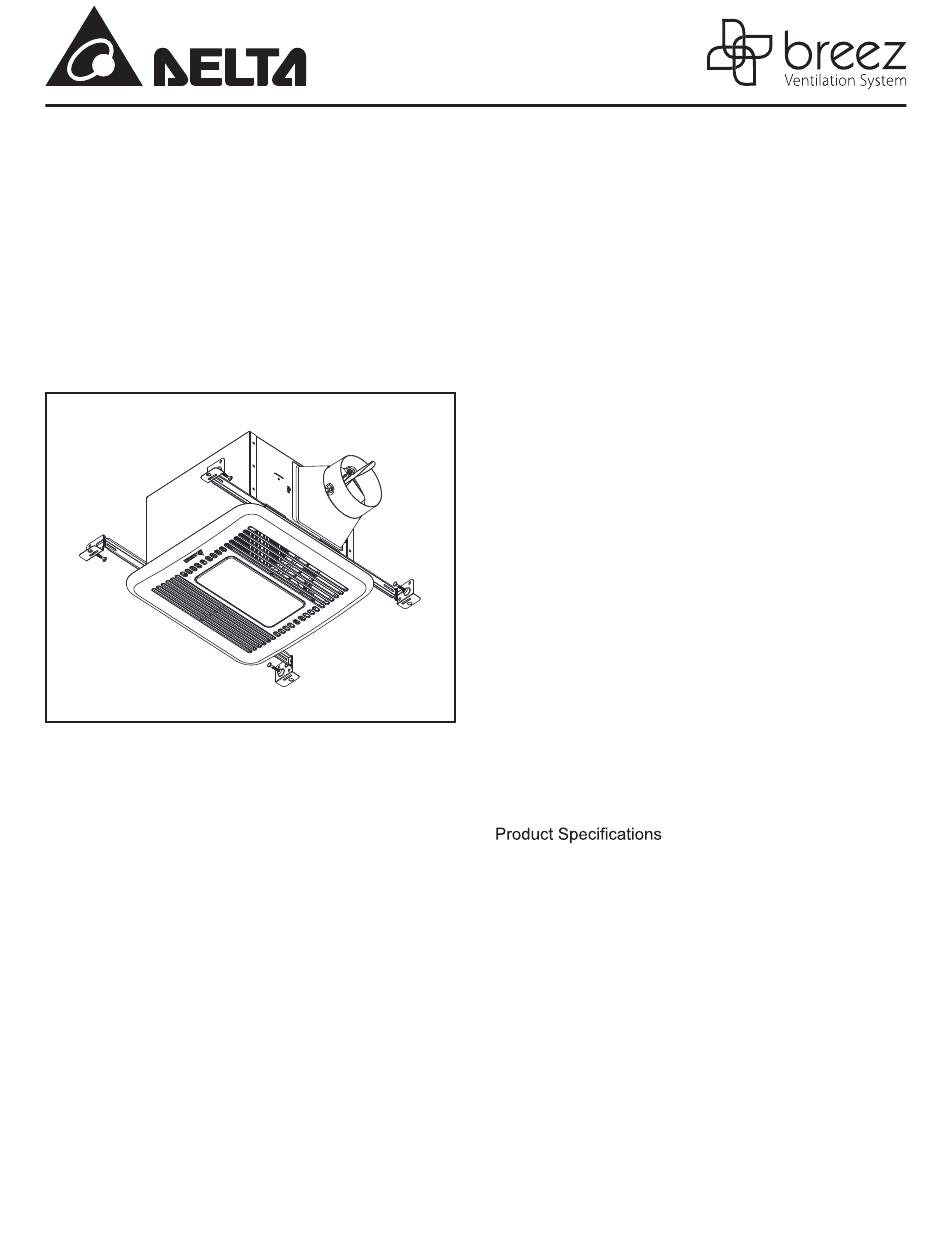

VENTILATION FAN / LED LIGHT / LED NIGHT LIGHT MODEL 110HLEDNL TABLE OF CONTENTS Package Contents General Safety Information Preparation and Wiring Diagrams Assembly Instructions - New Construction Assembly Instructions - Existing Construction Grille Installation Operation Care and Maintenance Troubleshooting... -
Page 2: Package Contents
PACKAGE CONTENTS PART DESCRIPTION ❶ Fan Body ❷ Grille ❸ Suspension bracket Ⅰ 13”(318.5mm) ❹ Suspension bracket Ⅱ 13”(318.5mm) ❺ Duct Connector HARDWARE CONTENTS (Images are to scale) Long Wood Screw ( ∅ 4 x 25mm) Short screw (#8-32x1/4”) Duct Screw (M4x12mm) -
Page 3: General Safety Information
GENERAL SAFETY INFORMATION READ AND SAVE THESE INSTRUCTIONS 7. If this unit is to be installed over a tub or shower, it must GENERAL SAFETY INFORMATION be marked as appropriate for the application and be connected to a GFCI (Ground Fault Circuit lnterrupter) – 1. -
Page 4: Preparation And Wiring Diagrams
Use a roof cap or wall cap that has a built-in damper YELLOW to reduce backdrafts. WHITE NIGHT-LIGHT SWITCH External timer/dimmer switch can be used please GREEN contact Delta Breez customer service and consult with a licensed electrician for compatibility BLUE BLACK YELLOW GROUND WHITE... -
Page 5: Assembly Instructions - New Construction
ASSEMBLY INSTRUCTIONS NEW CONSTRUCTION – ATTACHING TO THE JOIST BEFORE INSTALLATION Turn off power source. Review all safety precautions. 1. Attach the duct connector from the housing can Duct screw(M4X12) inside, and secure using the duct screw (M4x12). Insert tab into from Parts Bag slot in housing Hardware... -
Page 6: Assembly Instructions - Existing Construction
ASSEMBLY INSTRUCTIONS 4. Remove the fan junction box cover a . Using wire nuts (not supplied), connect house wires to fan wires b as shown in the wiring diagram on page 4. Reattach fan junction box cover c . 5. Connect a 4 in. circular duct a (not supplied) and vent to the outside. - Page 7 ASSEMBLY INSTRUCTIONS 2. Measure the opening to ensure it is large enough to accommodate the new fan body (10.25 in. x 10.25 in.). 3. If this fan is not replacing an old fan, be sure to cut a 10.25 in. x 10.25 in. opening for the fan body ❶ . Install from below, no need for suspension brackets (no attic access) 4.
- Page 8 ASSEMBLY INSTRUCTIONS 6. Remove the fan junction box cover a . Using wire nuts (not supplied), connect house wires to fan wires b as shown in the wiring diagram on page 4. Reattach fan junction box cover c . 7. Insert housing can into the ceiling cut out. Secure the housing can from below by using 2 long wood screws through the flange into the wood support and 2 long wood screws through the flange into the...
- Page 9 ASSEMBLY INSTRUCTIONS Install from above with suspension brackets (attic accessible) *ONLY IF UNABLE TO ATTACH DIRECTLY TO JOIST(S) 1. For joist spacing 16 in. - 24in., insert suspension bracket I ❸ and suspension bracket II ❹ into the ❶ Body bracket cover on the duct connector side and the ❸...
-
Page 10: Grille Installation
GRILLE INSTALLATION Insert the LED light connector into the fan body. Slots Celling Spring LED light connector Grille Attach grille ❷ by pinching mounting springs insert into the narrow rectangular slots in fan body. Celling Spring LED light connector Motion sensor Grille connector OPERATION... -
Page 11: Care And Maintenance
CARE AND MAINTENANCE See safety information before proceeding. Routine maintenance should be done at least once a year. • Never use solvents, thinner or harsh chemicals when cleaning the fan. • Do not allow water to enter the motor. • Do not immerse metal parts in water. •... -
Page 12: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION The fan is not turning on 1. Power off 1. Make sure power supply is on. 2. Faulty switch 2. Test or replace switch. 3. Faulty wire connection 3. Check wire in switch box. The fan seems louder 1. -
Page 13: Dimensions
DIMENSIONS PRODUCT SPECIFICATIONS Voltage Frequency Air Flow @0.1"SP Power @ 0.1"SP Max Current Weight Model No. Note Light Spec (Hz) (CFM) (Amps) (lb.) 13W LED, 110HLEDNL / Humidity 14.8 0.48 800 Lumens, VFB110D4HLED3 Sensor 2700K... -
Page 14: Warranty
5. To qualify for warranty service, you must notify Delta Electronics at the address or telephone number below. 6. Delta Electronics shall have no liability to the original owner-user with respect to any defect caused by abuse, misuse, neglect, improper transportation or storage, improper testing, improper installation, improper operation,...
