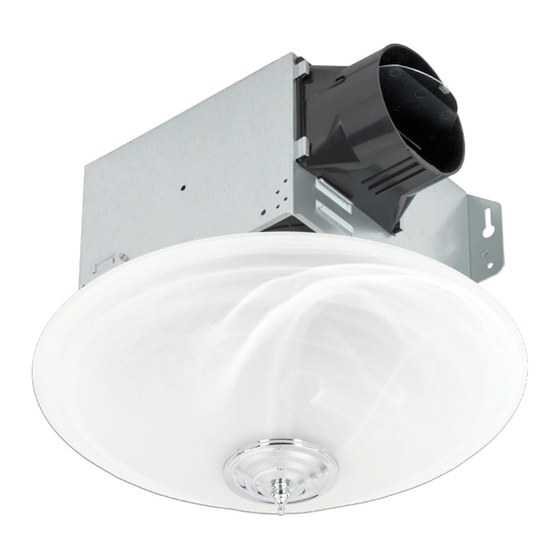

Bath fan / led light
Hide thumbs Also See for Breez GreenBuilder GBR100LED-DECOR:

Advertisement

Quick Links

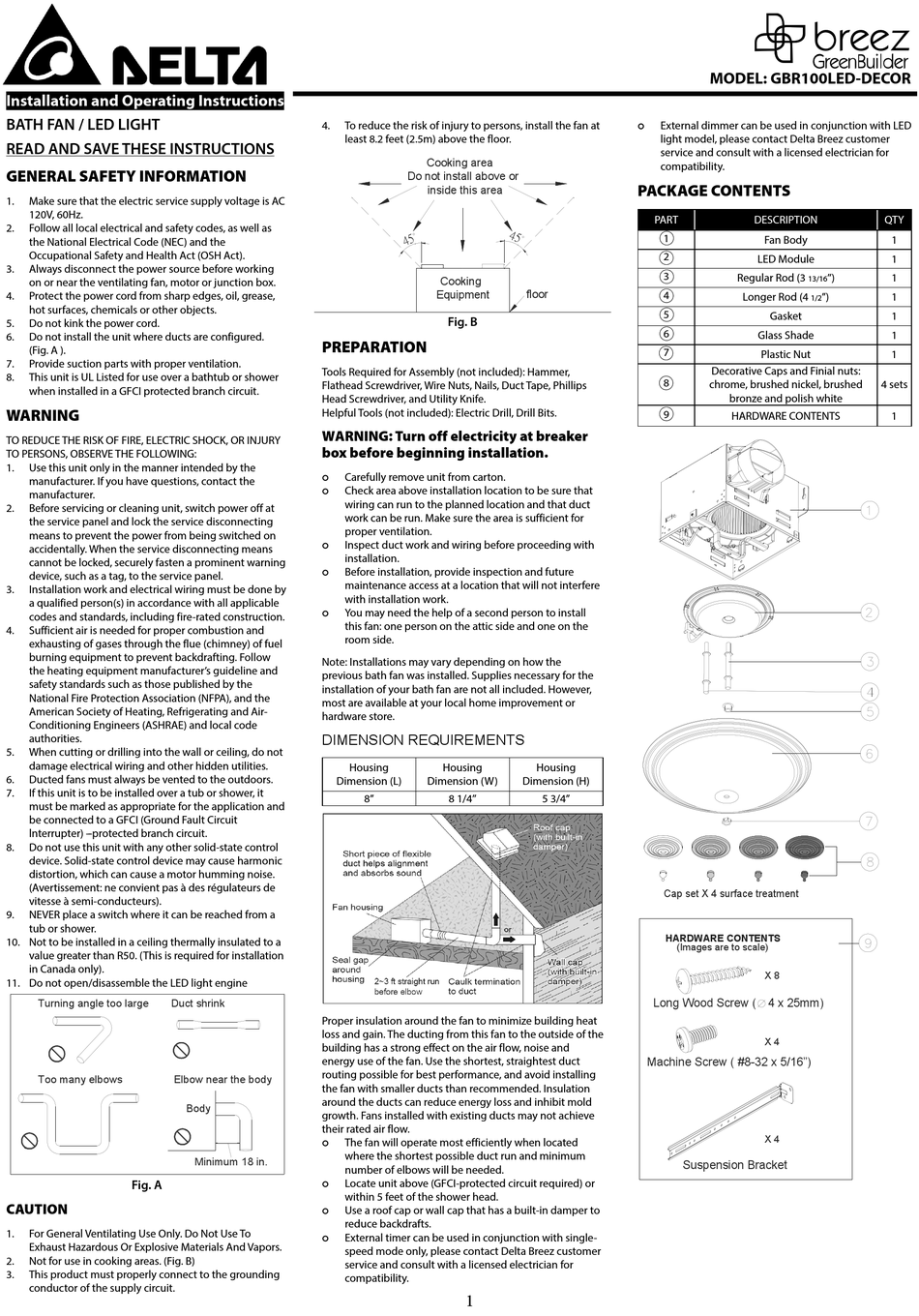

Installation and Operating Instructions
BATH FAN / LED LIGHT
READ AND SAVE THESE INSTRUCTIONS

GENERAL SAFETY INFORMATION

1.
Make sure that the electric service supply voltage is AC
120V, 60Hz.
2.
Follow all local electrical and safety codes, as well as
the National Electrical Code (NEC) and the
Occupational Safety and Health Act (OSH Act).
3.
Always disconnect the power source before working
on or near the ventilating fan, motor or junction box.
4.
Protect the power cord from sharp edges, oil, grease,
hot surfaces, chemicals or other objects.
5.
Do not kink the power cord.
6.
Do not install the unit where ducts are configured.
(Fig. A ).
7.
Provide suction parts with proper ventilation.
8.
This unit is UL Listed for use over a bathtub or shower
when installed in a GFCI protected branch circuit.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY
TO PERSONS, OBSERVE THE FOLLOWING:
1.
Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the
manufacturer.
2.
Before servicing or cleaning unit, switch power off at
the service panel and lock the service disconnecting
means to prevent the power from being switched on
accidentally. When the service disconnecting means
cannot be locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
3.
Installation work and electrical wiring must be done by
a qualified person(s) in accordance with all applicable
codes and standards, including fire-rated construction.
4.
Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of fuel
burning equipment to prevent backdrafting. Follow
the heating equipment manufacturer's guideline and
safety standards such as those published by the
National Fire Protection Association (NFPA), and the
American Society of Heating, Refrigerating and Air-
Conditioning Engineers (ASHRAE) and local code
authorities.
5.
When cutting or drilling into the wall or ceiling, do not
damage electrical wiring and other hidden utilities.
6.
Ducted fans must always be vented to the outdoors.
7.
If this unit is to be installed over a tub or shower, it
must be marked as appropriate for the application and
be connected to a GFCI (Ground Fault Circuit
lnterrupter) -- - protected branch circuit.
8.
Do not use this unit with any other solid-state control
device. Solid-state control device may cause harmonic
distortion, which can cause a motor humming noise.
(Avertissement: ne convient pas à des régulateurs de
vitesse à semi-conducteurs).
9.
NEVER place a switch where it can be reached from a
tub or shower.
10. Not to be installed in a ceiling thermally insulated to a
value greater than R50. (This is required for installation
in Canada only).
11. Do not open/disassemble the LED light engine
Turning angle too large
Duct shrink
Too many elbows
Elbow near the body
Fig. A
CAUTION
1.
For General Ventilating Use Only. Do Not Use To
Exhaust Hazardous Or Explosive Materials And Vapors.
2.
Not for use in cooking areas. (Fig. B)
3.
This product must properly connect to the grounding
conductor of the supply circuit.
4.
To reduce the risk of injury to persons, install the fan at
least 8.2 feet (2.5m) above the floor.
PREPARATION
Tools Required for Assembly (not included): Hammer,
Flathead Screwdriver, Wire Nuts, Nails, Duct Tape, Phillips
Head Screwdriver, and Utility Knife.
Helpful Tools (not included): Electric Drill, Drill Bits.
WARNING: Turn off electricity at breaker
box before beginning installation.
Carefully remove unit from carton.
Check area above installation location to be sure that
wiring can run to the planned location and that duct
work can be run. Make sure the area is sufficient for
proper ventilation.
Inspect duct work and wiring before proceeding with
installation.
Before installation, provide inspection and future
maintenance access at a location that will not interfere
with installation work.
You may need the help of a second person to install
this fan: one person on the attic side and one on the
room side.
Note: Installations may vary depending on how the
previous bath fan was installed. Supplies necessary for the
installation of your bath fan are not all included. However,
most are available at your local home improvement or
hardware store.
DIMENSION REQUIREMENTS
Housing
Dimension (L)
Proper insulation around the fan to minimize building heat
loss and gain. The ducting from this fan to the outside of the
building has a strong effect on the air flow, noise and
energy use of the fan. Use the shortest, straightest duct
routing possible for best performance, and avoid installing
the fan with smaller ducts than recommended. Insulation
around the ducts can reduce energy loss and inhibit mold
Body
growth. Fans installed with existing ducts may not achieve
their rated air flow.
The fan will operate most efficiently when located
where the shortest possible duct run and minimum
Minimum 18 in.
number of elbows will be needed.
Locate unit above (GFCI-protected circuit required) or
within 5 feet of the shower head.
Use a roof cap or wall cap that has a built-in damper to
reduce backdrafts.
External timer can be used in conjunction with single-
speed mode only, please contact Delta Breez customer
service and consult with a licensed electrician for
compatibility.
Cooking area
Do not install above or
inside this area
Cooking
Equipment
floor
Fig. B
Housing
Housing
Dimension (W)
Dimension (H)
8''
8 1/4''
1
MODEL: GBR100LED-DECOR
External dimmer can be used in conjunction with LED
light model, please contact Delta Breez customer
service and consult with a licensed electrician for
compatibility.
PACKAGE CONTENTS
PART
1
2
3
4
5
6
7
Decorative Caps and Finial nuts:
8
chrome, brushed nickel, brushed
9
5 3/4''
Cap set X 4 surface treatment
HARDWARE CONTENTS
(Images are to scale)
Long Wood Screw ( 4 x 25mm)
Machine Screw ( #8-32 x 5/16")
Suspension Bracket
DESCRIPTION
QTY
Fan Body
1
LED Module
1
Regular Rod (3
'')
1
13/16
Longer Rod (4
'')
1
1/2
Gasket
1
Glass Shade
1
Plastic Nut
1
4 sets
bronze and polish white
HARDWARE CONTENTS
1
X 8
X 4
X 4
