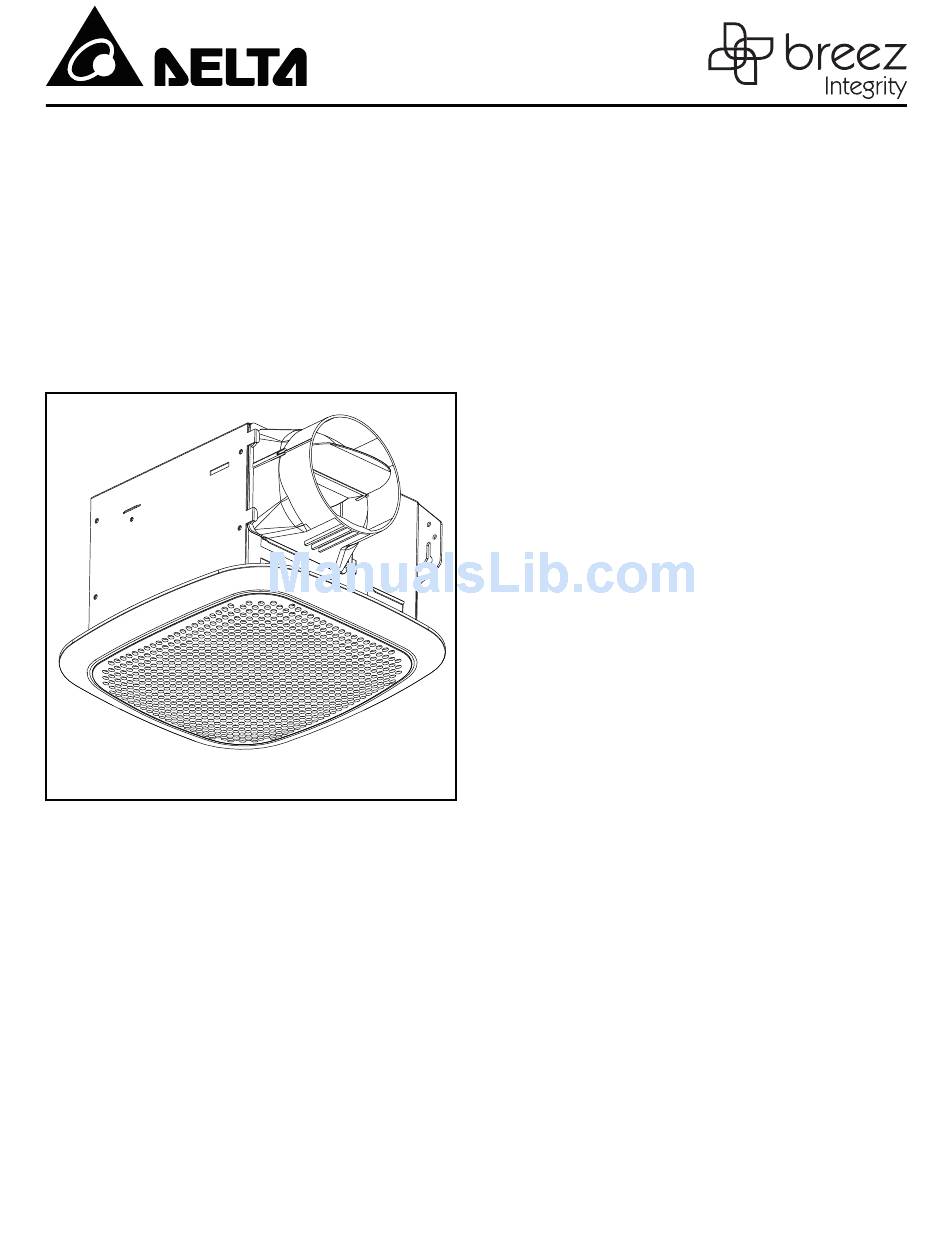

VENTILATION FAN WITH BLUETOOTH SPEAKER MODEL ITG70BT TABLE OF CONTENTS Package Contents General Safety Information Preparation and Wiring Diagrams Assembly Instructions - New Construction Assembly Instructions - Existing Construction Operation Care and Maintenance Troubleshooting Dimensions Product Specifications Warranty READ AND SAVE THESE INSTRUCTIONS... -
Page 2: Package Contents

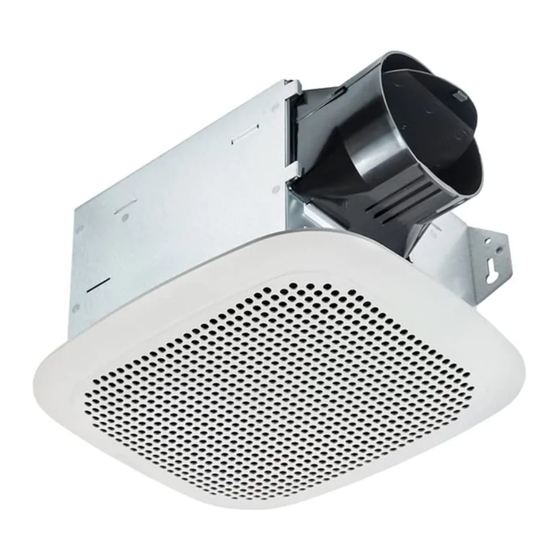

PACKAGE CONTENTS PART DESCRIPTION Fan Housing Grille Duct Connector Bluetooth Speaker Assembly Model: ITG70BT... -
Page 3: General Safety Information
Protection Association (NFPA), and the American Society for Heating Refrigeration and Air Conditioning Engineers Cooking (ASHRAE) and local code authorities. floor Equipment 5. When cutting or drilling into the wall or ceiling, do not Fig. B damage electrical wiring and other hidden utilities. Model: ITG70BT... - Page 4 ® The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Delta Electronics, Inc. is under license. Other trademarks and trade names are those of their respective owners. ®...
-
Page 5: Preparation And Wiring Diagrams
Dimension (H) BLUE BLACK JUNCTION BOX SWITCH BOX GROUND (bare) WHITE ON/OFF SWITCH SWITCH BOX BLACK (purchase separately) WHITE FAN SWITCH BLUE WHITE SPEAKER SWITCH WIRING GREEN SPEAKER PLATE SWITCH SWITCH 120 VAC WIRE NUT LINE IN (NOT INCLUDED) Model: ITG70BT... -
Page 6: Assembly Instructions - New Construction
14AWG is the smallest conductor that shall be used for branch-circuit wiring. Push the wires back through the hole. Reattach the wiring box cover. Model: ITG70BT... -
Page 7: Assembly Instructions - Existing Construction
Turn off power source. Review all safety precautions. 1. Remove existing fan. 2. Measure the opening to ensure it is large enough to accommodate the new fan body in. x 7 in.). Note: 7 inch side of opening should be flush with the joist. Model: ITG70BT... -
Page 8: Duct Connector
7. Install a circular 4 in. duct (not included) and secure it with duct tape or clamps (neither included). 8. Insert the fan housing through the existing hole in the ceiling. The fan housing should be level and perpendicular to the joist or stud. Model: ITG70BT... - Page 9 .Reattach the fan assembly using the thress screws removed in step 5. FAN CONNECTOR SPEAKER CONNECTOR Plug the Micro USB connector into the speaker assembly , and secure the speaker assembly to the holder on the fan unit. Model: ITG70BT...
-
Page 10: Operation
"DeltaBreez ITG", and enter a passkey or PIN (0000) if prompted. 7. When pairing is completed, the blue LED indicator will solid on, you can use the Bluetooth speaker to play music or audio files with your device. Model: ITG70BT... -
Page 11: Care And Maintenance
4. Dampen cloth with dust detergent and wipe the fan ❶ housing . Then wipe dry with a clean cloth. 5. Replace grille ❷ back onto fan housing ❶ . 6. Turn on power source to operate fan again. Model: ITG70BT... -
Page 12: Troubleshooting
The fan is not clearing 1. Be sure a door or window is slightly ajar or opened the room airfow within room 2. Be sure the CFM rating on the fan matches the requirements for your room size. Model: ITG70BT... -
Page 13: Dimensions
DIMENSIONS UNIT: INCH PRODUCT SPECIFICATIONS SPECIFICATIONS Air Flow Max. Fan Power Voltage Frequency Weight Model No. @ 0.1”SP Current @ 0.1”SP (Hz) (lb.) (amps) (CFM) VFB070B4BT1 0.22 ITG70BT Note: Design and specifications subject to change without notice. Model: ITG70BT... -
Page 14: Warranty
6. To qualify for warranty service, you must notify Delta Electronics at the address or telephone number below. 7. Delta Electronics shall have no liability to the original owner-user with respect to any defect caused by abuse, misuse, neglect, improper transportation or storage, improper testing, improper installation, improper operation,...
