Summary of Contents for Cosmo UC30P
-
Page 1: Range Hood

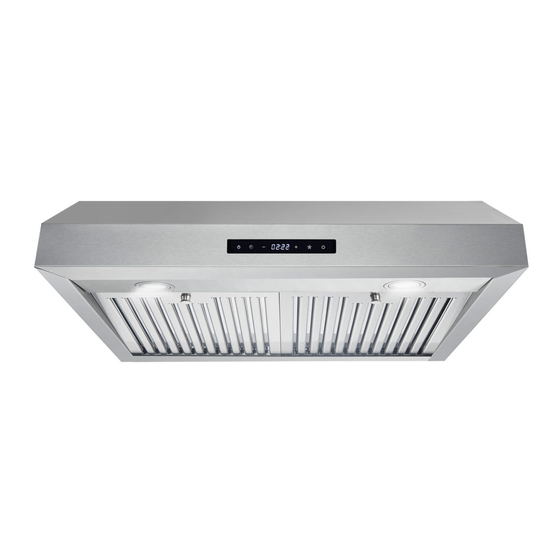

Installation Guide & User's Manual UNDER CABINET RANGE HOOD UC30 UMC30... - Page 2 Thank You Thank you for your purchase. We know that you have many brands and products to choose from and we are honored to know that you have decided to take one of our products into your home and hope that you enjoy it. Our appliances are designed according to the strictest safety and performance standard for the North American market.
-
Page 3: Stainless Steel Baffle Filters
STAINLESS STEEL BAFFLE FILTERS About Your New Filters Stainless Steel Baffle Filters do not need linings or mesh inside of the filters. Our Baffle filters are completely constructed out of stainless steel. The stainless steel construction allows them to be used again after being cleaned or going through the dishwasher. -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read all instructions before using this appliance. Save these instructions for future references Approved for residential appliances For residential use only IMPORTANT SAFETY INSTRUCTIONS WARNING CAUTION GROUNDING INSTRUCTIONS FOR GENERAL VENTILATING USE ONLY. DO NOT USE TO EXHAUST HAZARDOUS OR EXPLOSIVE MATERIALS This appliance must be grounded. -
Page 5: Parts Diagram
PARTS DIAGRAM UC30 / UMC30 6" MAIN PARTS Main body Grease Filters... -
Page 6: Parts Included
PARTS INCLUDED 2 pcs 2 pcs 5 pcs 2 pcs - 5x50 wood screws 2 pcs - Wall Anchors 5 pcs - 5x16 wood screws 6” Round Aluminum Duct PARTS REQUIRED Measuring tape Level Safety gloves Safety goggles Pencil Tape Flathead Phillips screwdriver screwdriver... - Page 7 UC30 / UMC30 29 - 1/2” 9 - 3/4” FRONT VIEW 27 - 1/2” 1” 1” HOOD MOUNTING SCREWS BACK CABINET FRONT 6” 3 1/2” 1 - 1/4” 1 - 1/2” 10 - 3/4” TOP VIEW ELECTRICAL 1” ACCESS HOLE (IN CABINET BOTTOM)
-
Page 8: Pre-Installation Requirements
PRE-INSTALLATION REQUIREMENTS 1. Do not install the Range Hood where there are many dorrs or win- dows in order to avoid effecting the exhaust efficiency caused by air convection. 2. Install the Range hood directly above the cooking surface. The recommended distance between the cooking surface and the bottom of the range is minimum 24”... -
Page 9: Installation Procedures
INSTALLATION PROCEDURES Step 1-3 1. 1. Drill two 8mm holes in position for Wall Anchor (Part B) placement. (See Page 5 for placement location). 2. Tap Wall anchors securely into each of the drilled holes. 3. After Wall anchors have been tapped in place, Insert 5x50 wood screws, but leave 1/4” of the screw sticking out of the wall. - Page 10 Step 6 ELECTRICAL ACCESS HOLE 6. Drill a 6 - 1/4” Round Hole into the bottom of the cabinet. Drill a 1 - 1/2” hole into the bottom of the cabinet for the Electrical Access hole. See Page 5 for hole location according to the diagram (Top View). 6a.
- Page 11 IMPORTANT SAFETY INSTRUCTIONS NOTE: The appliance is not to be used by children or persons with reduced physical, sensory, or mental issues, or lack of experience, and knowledge. Unless, they have been given supervision or instruction. Do not connect the air outlet to chimeny fuels or combustion gas ducts.
- Page 12 Replacing the LED lamp should be performed by a qualified person. Always use an LED light 2W or less. Never wash the control switch with water or it will cause electrical problems for the hood. Never pull the plug out of the power supply with wet hands to avoid the possibility of electric shock.
- Page 13 How to use the Push Button How to use the Push Button COMPATIBLE WITH MODELS: UC30 o use the Push Button Push Button How to use the Push Button sh Button Light - Press to turn light on / off. How to use the Push Button Highest Fan Setting...
- Page 14 Soft Touch Controls UMC30 COMPATIBLE WITH MODELS: (Starts Max Fan Speed)
-
Page 15: Maintenance
MAINTENANCE CAUTION: Never put your hand inside the unit while it is operating. For the best performance clean your unit frequently. CLEANING: 1. Use only mild soap or cleaning solutions to clean the range hoods outer surface. Dry surfaces using a soft cloth. 2. -
Page 16: Troubleshooting
TROUBLESHOOTING CAUTION: ALWAYS UNPLUG UNIT FROM POWER BEFORE SERVICING PROBLEM SOLUTION TOOLS My range hood is noisy. A. Check inside the range hood Phillips Screwdriver for any loose debris and remove. A. The range hood and cook top Phillips Screwdriver My range hood has are too far away from each poor performance.. -
Page 17: Technical Information
TROUBLESHOOTING TECHNICAL INFORMATION CAUTION: ALWAYS UNPLUG UNIT FROM POWER BEFORE SERVICING PROBLEM SOLUTION TOOLS My range hood is noisy. A. Check inside the range hood Phillips Screwdriver for any loose debris and remove. A. The range hood and cook top Phillips Screwdriver My range hood has are too far away from each... -
Page 18: Warranty And Service
B. The maximum liability of the warranty for product replacement or repair shall not exceed the original purchase price of the product. C. Cosmo reserves the right to repair or replace the covered product with a comparable feature model of like kind.
