iHome iBTW38 Instruction Manual

Dual alarm clock stereo speaker system with qi wireless charging
Hide thumbs Also See for iBTW38:
Table of Contents

Advertisement

Quick Links

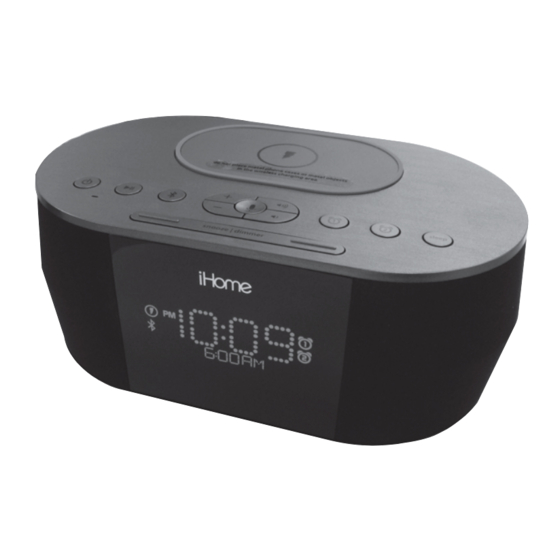

Model: iBTW38
Dual Alarm Clock
Stereo Speaker System
with Qi Wireless Charging
instruction manual
Questions? Contact Customer Service at 1-800-288-2792

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iBTW38 and is the answer not in the manual?

Questions and answers

Pamedla Solleveld
June 14, 2025

How do I setup the radio

0

Subscribe to Our Youtube Channel

Related Manuals for iHome iBTW38

Summary of Contents for iHome iBTW38

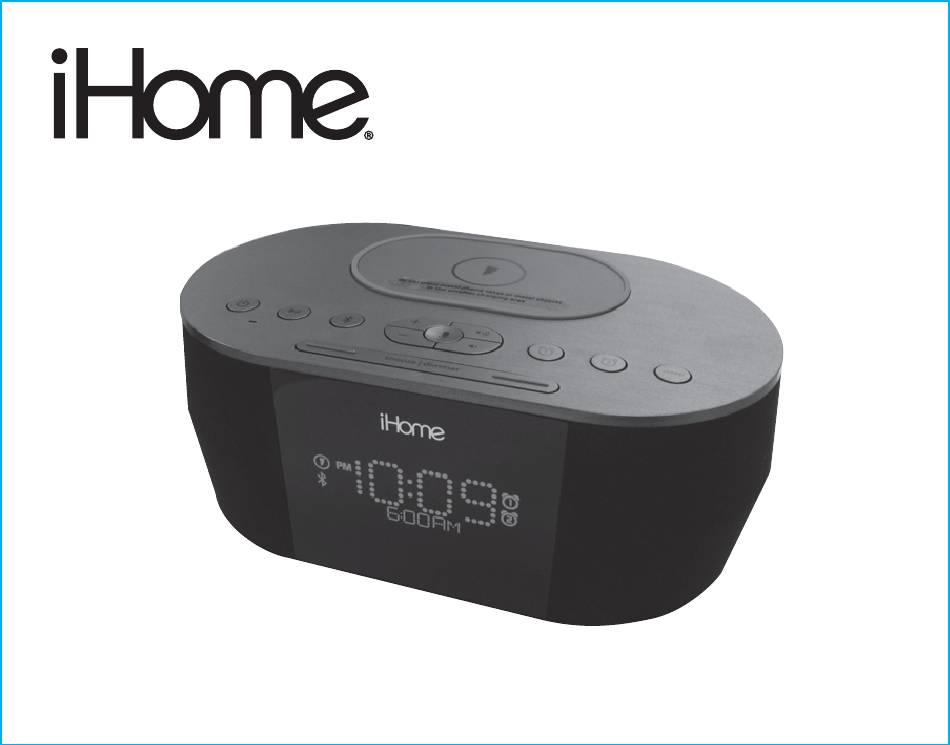

  • Page 1 Model: iBTW38 Dual Alarm Clock Stereo Speaker System with Qi Wireless Charging instruction manual Questions? Contact Customer Service at 1-800-288-2792...

  • Page 2: Maintenance

    Introduction Thank you for purchasing the iHome iBTW38. This product is designed to provide high quality wireless sound for your iPad, iPhone, iPod or other Bluetooth audio device. It will also wirelessly charge compatible devices. This instruction booklet explains the basic operation and care of the unit. Please read it carefully and keep for future reference.
  • Page 3 Included • iBTW38 system • 100V-240V universal AC adapter power adapter iBTW38...
  • Page 4 Meet Your iBTW38 Wireless charging pad Voice/Talk/End Button Alarm 1 Button Alarm 2 Button +/– Settings Buttons Play/Pause Button Sleep Button Power Button Volume Up/ Microphone Volume Down Buttons Bluetooth Pairing Button Snooze/Display Dimmer Button Bottom Back DC Jack...

  • Page 5: Setting Up The Unit

    Using the The Display PM Time Indicator Time Display Wireless Charging Indicator Alarm Active Indicator Bluetooth Low Backup Pairing Battery Indicator Indicator Sleep Mode Indicator Wake to Alarm/Tone Source Indicators Alarm Clock/Sleep Time/Date Indicator Setting Up the Unit Connect the included AC adapter to the DC jack located on the back of the unit and connect the other end to a working wall outlet.

  • Page 6: Setting The Clock

    Using the Setting the Clock Press and hold the Time Set Button located on the back of the unit for 2 seconds until the clock display flashes and a beep sounds. Press the – or + Buttons to adjust the clock to the current time (hold for rapid setting). Make sure you set the correct AM/PM time.

  • Page 7: Previewing The Alarm And Turning The Alarm On/O

    Using the Setting and Using the Alarm (Cont’d) 4. Press the Alarm Button to confirm the alarm schedule. The wake source indicator will flash on the display. Press the – or + Buttons to select the desired wake to alarm source: Bluetooth or tone.

  • Page 8: Sleep Mode

    Using the Setting The Daylight Daving Time (dst) switch This unit has a DST switch on the back of the unit to adjust the time for daylight saving time and standard time. By default, it is set to Auto and will automatically adjust the time at the start and end of daylight saving time.

  • Page 9: Pairing Your Bluetooth Device

    If no device is successfully paired within 3 minutes the iBTW38 will default to previous mode. Once the iBTW38 is paired to a device, it will attempt to autolink when the device is within range (about 33 feet).

  • Page 10: Playing Audio Via Bluetooth

    Using the Playing Audio Via Bluetooth 1. Press the Button to turn the unit ON, or press the Button. “BT” and the Bluetooth icon appear on the display. To turn on in play mode, press the Button. Button on the unit to play audio from your linked Bluetooth device.
  • Page 11 Using the Using Qi Wireless Charging This unit will wirelessly charge Qi compatible wireless charging phones. PMA wireless charging system is not supported. CAUTION: Remove metal protective or magnetic case from phone before charging. When charging phone, do not place magnetic-striped or other metal objects on the charger.

  • Page 12: Charging Devices Via Usb Port

    Using the Charging Devices via USB Port Connect the standard size end of a USB cable (not NOTE: Unit must be included) to the USB Port on back of the unit and connect plugged into working the other end to the charging port on your device.

  • Page 13: Troubleshooting

    Unit doesn’t respond (no sound) • Check that all connections are correct and properly plugged in. • Make sure your device is properly paired with the iBTW38. • Make sure the Power is ON. • Make sure volume is up on your Bluetooth device and on unit.

  • Page 14: Important Safety Instructions

    Servicing – The user should not attempt to service the unit beyond those methods described in the user’s operating instructions. Service methods not covered in the operating instructions should be referred to qualified service personnel. Questions? Visit www.ihome.com or call 1-800-288-2792 Toll Free...

  • Page 15: Fcc Information

    FCC Radiation Exposure Statement FCC ID: EMOIBTW38 IC: 986B-IBTW38 This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device complies with Part 15 of the FCC Rules, operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 16 © 2018 SDI Technologies, Inc. All rights reserved Questions? Visit www.ihome.com or call 1-800-288-2792 Toll Free iBTW38-180316- A Printed in China...
