Summary of Contents for iHome iBT18

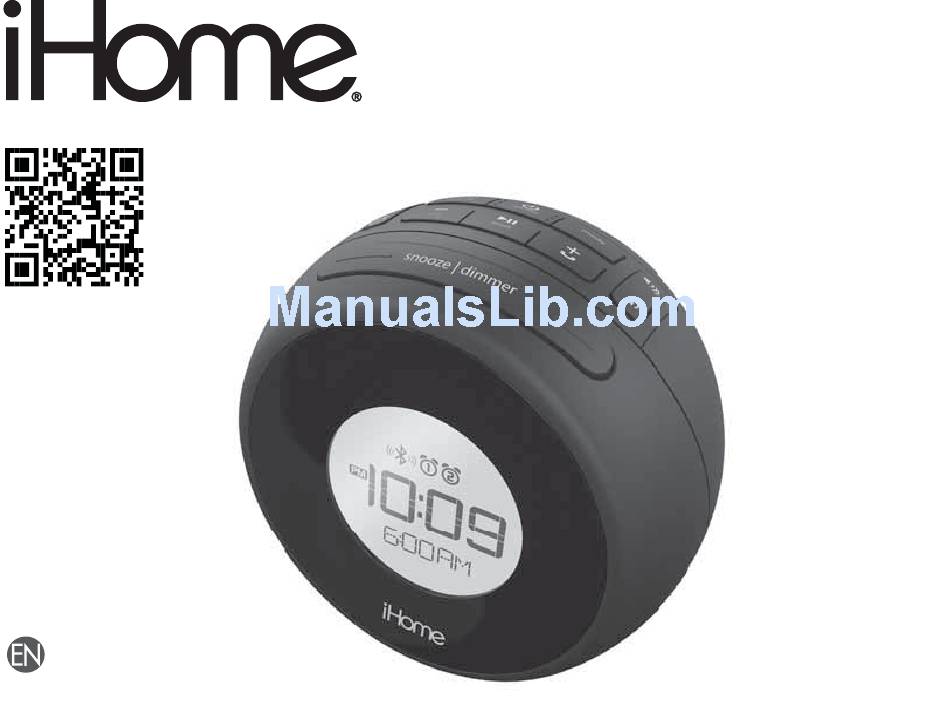

- Page 1 Bluetooth Alarm Clock Speaker with Speakerphone and USB charging instruction manual...
- Page 2 Introduction Thank you for purchasing the iHome iBT18. This product is designed to provide high quality wireless sound for your iPad, iPhone, iPod, computer, or other Bluetooth audio device. This instruction booklet explains the basic operation and care of the unit. Please read carefully and keep for future reference.
-
Page 3: Table Of Contents
Table of Contents Meet Your iBT18 ......................1-3 The Display/Setting Up the Unit ..................4 Setting the Clock ......................5 Setting and Using the Alarm/Previewing Alarm ..............6-7 Snooze/Dimmer Button/Sleep Mode...................8 Pairing Your Bluetooth Device....................9 Playing Audio Via Bluetooth/Using the Speakerphone............10 Playing Audio Via Aux-in/Charging Devices via USB Port .............11... - Page 4 Included • iBT18 system • 100V-240V universal AC adaptor iBT18 adaptor...
-
Page 5: Meet Your Ibt18
Meet Your iBT18 Power/ Alarm Reset Button Mode Button Sleep/ Clock Adjust Button Volume Up Button Alarm 1 Button clock adj alm reset Alarm 2 Button Volume Down Button Minus Settings/ Plus Settings/ End Call Button Answer Call Button... - Page 6 (pull battery tab before use) Model: iBT18 Clock Backup: DC 3V, CR2450 x 1 AC Adaptor: DC 5V, 2A FCC ID: EMOIBT18 IC: 986B-IBT18 Service Number: iBT18-A-A Made in China Mfd & Serviced by SDI Technologies Inc. www.ihome.com Toll Free: 1-800-288-2792 Patents: www.ihome.com/patents...
-
Page 7: The Display/Setting Up The Unit
Using the The Display Bluetooth Pairing Indicator Bluetooth Audio Indicator Alarm Active Indicators Low Backup Battery Indicator Sleep Mode Indicator Aux-in Mode Indicator Time Display PM/AM Indicators Alarm Time/Mode Display Wake to Alarm Source Indicators: Tone, Bluetooth device Setting Up the Unit •... -
Page 8: Setting The Clock
Using the Setting the Clock 1. Press and hold the Sleep/Clock Adjust Button for 2 seconds until the clock display flashes and a beep sounds. 2. Press the – or + Buttons to adjust the clock to the current time (hold for rapid setting). -
Page 9: Setting And Using The Alarm/Previewing Alarm
Using the Setting and Using the Alarms This unit features dual alarms which can be set to different times and alarm sources. Each is set in the same way. Instructions are given as “Alarm Button”; use Alarm 1 Button or Alarm 2 Button to set respective alarms. - Page 10 Using the Setting and Using the Alarms (Continued) 8. Press the – or + Buttons to adjust the alarm volume. Note that the alarm volume setting is stored separately from other volume settings. 9. Press the Alarm Button to confirm the alarm settings and exit alarm setting mode. 2 beeps will confirm alarm setting is complete.
-
Page 11: Snooze/Dimmer Button/Sleep Mode
Using the Snooze/Dimmer Button 1. To program Snooze, press and hold the Snooze/Dimmer Button during normal operation (when no alarm is sounding). 2. Press the – or + Buttons to select the desired snooze time (between 01 and 29 minutes). -
Page 12: Pairing Your Bluetooth Device
4. “iHome iBT18” should appear on your device’s menu. If “Not Paired”, “Not Connected” or similar message appears, select “iHome iBT18” on the device to connect it. If prompted for a password, enter 1234 on your device’s keypad. If no device is paired within 3 minutes, a tone will sound and the unit will revert to its previous mode. -
Page 13: Playing Audio Via Bluetooth/Using The Speakerphone
Using the Playing Audio Via Bluetooth 1. Press the Power Button to turn the unit ON. 2. Press and release the Mode Button as needed until “BT” and the Bluetooth icon appear on the display. 3. Press the Play Pause Button on the unit to play audio from your linked Bluetooth device. -
Page 14: Playing Audio Via Aux-In/Charging Devices Via Usb Port
Using the Listening to Audio via Aux-in 1. Connect one end of the included standard stereo 3.5mm audio cable into the aux-in jack on the back of the unit and the other end into the headphone or output jack of your audio device 2. -
Page 15: Replacing/Installing Backup Batteries
Using the Replacing and Installing Clock Backup Battery Note: The CR2450 lithium battery is included in the unit. Please pull out the battery pull tab before you use the unit. This model is equipped with a battery backup circuit that will maintain the time and alarm time settings in the event of a temporary power interruption (the display is NOT maintained). -
Page 16: Troubleshooting
Unit doesn’t respond (no power) • Check that all connections are correct and properly plugged in. • Make sure your device is properly paired with the iBT18. • Make sure the Power is ON. Unit doesn’t respond (locked up or frozen) •... -
Page 17: Consumer Product Safety Guide
Consumer Product Safety Guide IMPORTANT SAFETY INSTRUCTIONS When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. However, improper use can result in potential electrical shock or fire hazards. Please read all safety and operating instructions carefully before installation and use, and keep these instructions handy for future reference. - Page 18 13. Servicing – The user should not attempt to service the unit beyond those methods described in the user’s operating instructions. Service methods not covered in the operating instructions should be referred to qualified service personnel. Questions? Visit www.ihome.com or call 1-800-288-2792 Toll Free...
-
Page 19: Fcc Information
FCC/IC Information FCC ID:EMOIBT18 FCC Radiation Exposure Statement IC:986B-IBT18 This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions:... -
Page 20: Warranty
Limited 1 Year Warranty iHome Products, a division of SDI Technologies Inc. (hereafter referred to as SDI), warrants this product to be free from defects in workmanship and materials, under normal use and conditions, for a period of one (1) year from the date of original purchase.
