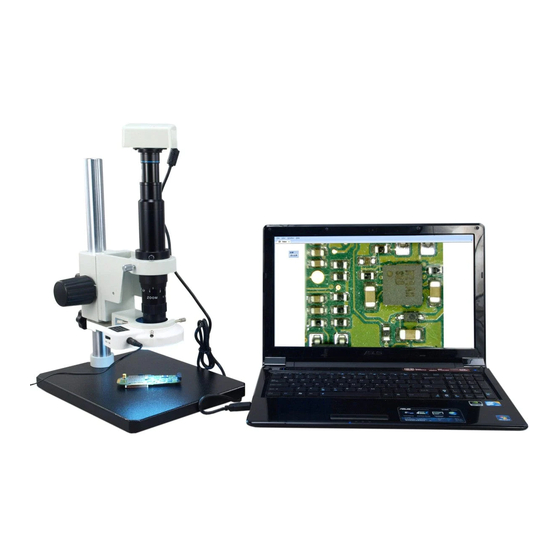

- Page 1 User Manual Industrial Inspection Microscope Model M517 MicroscopeNet.com...
-
Page 2: Table Of Contents
Table of Contents i. Caution……..……………………………………………………………1 ii. Care and Maintenance……….………………………………….….…1 1. Component Illustration………………………….…………………..…2 2. Installation ……………………………………………………………...3 3. Operation...…………………….………………………….…………..4 4. Specifications…………………….…………………………………..5 5. Troubleshooting Guide…..............5... -
Page 3: I. Caution
www.microscopenet.com i. Caution 1. Do not discard the microscope container. The container should be retained should the microscope ever requires reshipment. 2. Keep the instrument out of direct sunlight, high temperature or humidity, and dusty environments. Ensure that the microscope is located on a smooth, level and firm surface. -
Page 4: Component Illustration
www.microscopenet.com 1. Components Illustration 1. Eyepiece 7. Zoom Ring 13. Tightening Knob 2. Eyepiece Adapter 8. Ring Light Rack 14. Focus Knob 3. Eyepiece Tube 9. Thumb Screw 15. Tightening Knob 4. Microscope Body 10. Stand Post 16. Stand Base 5. -
Page 5: Installation
www.microscopenet.com 2. Installation 2.1 Installation of the microscope body 1) Loosen the thumbscrew on the microscope holder. 2) Insert the microscope body into the holder. Be certain that the scale of the zoom ring is facing toward you. 3) Tighten the thumb scale on the holder. 2.2 Installation of the eyepiece 1) Loosen the thumbscrew on the eyepiece tube. -
Page 6: Operation
www.microscopenet.com 3. Operation 3.1 Placing specimen Place the specimen on the center of the stand base, just under the objective. 3.2 Focusing 1) Loosen the tightening knob on the focusing block and move the block up or down so that the distance between the objective and base surface is around 90mm. Then tighten the knob. -
Page 7: Specifications
4. Specifications Model M517 Total Magnification Zoom 7X ~ 90X Eyepiece 1 pair of WF10X/18 and 1 pair of WF20X Zoom 0.7X ~ 4.5X Objectives Zoom ratio 1:6.5 90mm (3-1/2”) Working Distance 160mm with 0.5X auxiliary objective* 265mm with 0.3X auxiliary objective* 4mm ~ 25.7mm...
