Page 1: User Manual

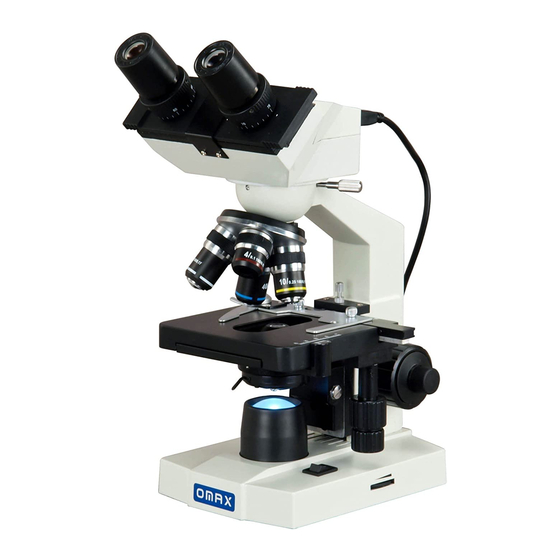

User Manual Digital Compound Binocular LED Microscope Model MD82ES10 MicroscopeNet.com... -
Page 2: Table Of Contents
Table of Contents i. Caution ....................1 ii. Care and Maintenance ................2 1. Components Illustration ................3 2. Installation....................4 3. Operation ....................4 4. Specifications ................... 8 5. Troubleshooting Guide ................9 6. Darkfield Condenser Installation and Operation Instructions ....10... -
Page 3: Caution
www.microscopenet.com i. Caution 1. Open the carton carefully with a knife or paper cutter. Find the “UP” sign and place the Styrofoam container on the side that makes the arrow upward. If the “UP” sign is missing, please open the Styrofoam container gently to prevent any accessory, i.e. objectives or eyepieces, from dropping and being damaged. -
Page 4: Care And Maintenance
www.microscopenet.com ii. Care and Maintenance Do not attempt to disassemble any component including eyepieces, objectives or focusing assembly. Keep the instrument clean; remove dirt and debris regularly. Accumulated dirt on metal surfaces should be cleaned with a damp cloth. More persistent dirt should be removed using a mild soap solution. -
Page 5: Components Illustration
www.microscopenet.com 1 Components Illustration Eyepiece USB Cable Diopter Adjusting Ring Coarse Focus Knob Eyepiece Tube Fine Focus Knob Nosepiece X-Y Stage Moving Knobs Objective Power Switch Slide Holder Brightness Intensity Dial Mechanical Stage Abbe Condenser Light Collector Condenser Lock Thumb Screw Microscope Base Condenser Control Knob Viewing Head w Built-in Camera... -
Page 6: Installation
www.microscopenet.com 2 Installation 2.1 Installation of the eyepieces 1) Remove the protective caps from the eyepiece tubes. 2) Insert the eyepieces into the eyepiece tubes. 2.2 Installation of the glass filter 1) Swing out the color filter holder under the condenser. 2) Place the filter into the holder as shown in Fig. - Page 7 www.microscopenet.com 3.2 Placing specimen 1) Place the slide on the mechanical stage. 2) Use the slide holder to gently secure the slide. 3) Turn the X and Y stage moving knobs to position the specimen in the center of viewing field. Caution: Be sure not to allow an objective to touch a specimen slide when changing objectives.
- Page 8 www.microscopenet.com 3.6 Applying the immersion oil 1) Rotate the objective nosepiece to seat the observing position between the 40X and 100X objectives as shown in Fig. 4 (a). 2) Place a drop of immersion oil on the slide cover as shown in Fig. 4 (b). 3) Rotate the objective nosepiece to seat the 100X objective to the observing position until you hear a “click”...
- Page 9 www.microscopenet.com Adjusting iris aperture diaphragm Swing the iris diaphragm lever (Fig. 5) left or right to adjust the aperture size. Note: The iris diaphragm is designed to adjust the aperture size, not to adjust the brightness although the brightness will be changed when it's adjusted. When aperture is adjusted to smaller size, the contrast will be increased and the depth of field will be increased as well.
-
Page 10: Specifications
4 Specifications General Model MD82ES10 Total Magnification 40X, 80X, 100X, 200X, 400X, 800X, 1000X, 2000X Viewing Head Binocular, inclined 45º , 360º swiveling with Built-in camera Interpupillary Distance Sliding adjustment, 2-3/16” ~ 2-15/16” (55mm ~ 75mm) Diopter Adjustment On both eyepiece tubes... -
Page 11: Troubleshooting Guide
www.microscopenet.com 5 Troubleshooting Guide Problem Cause Solution No electrical power Check power cord connection Lamp does not light when switched on LED or power unit dead Contact seller for service Revolve the nosepiece to click-stop Darkness at the Revolving nosepiece not in click stop position position by swinging the objective periphery correctly into the optical path... -
Page 12: Darkfield Condenser Installation And Operation Instructions
www.microscopenet.com 6 Darkfield Condenser Installation and Operation Instructions 1) Mounting the dry darkfield condenser Rotate the nosepiece and set the 4x objective in Condenser Lock Condenser Holder Thumb Screw position. Loosen and raise the focusing rack stop screw to the highest position.
