- Page 1 User Manual Binocular Compound LED Microscope Model M827L Series MicroscopeNet.com...
-
Page 2: Table Of Contents
Table of Contents Caution ....................1 ii. Care and Maintenance................2 2 Components Illustration ................3 3 Installation ....................4 4 Operation ....................6 5 Specifications ..................10 6 Optional Parts ..................11 7 Troubleshooting Guide ................12... -
Page 3: Caution
www.microscopenet.com i. Caution 1. Open the carton carefully with a knife or paper cutter. Find the “UP” sign and place the Styrofoam container on the side that makes the arrow upward. If the “UP” sign is missing, please open the Styrofoam container gently to prevent any accessory, i.e. -
Page 4: Care And Maintenance
www.microscopenet.com ii. Care and Maintenance 1. Do not attempt to disassemble any component including eyepieces, objectives or focusing assembly. 2. Keep the instrument clean; remove dirt and debris regularly. Accumulated dirt on metal surfaces should be cleaned with a damp cloth. More persistent dirt should be removed using a mild soap solution. -
Page 5: Components Illustration

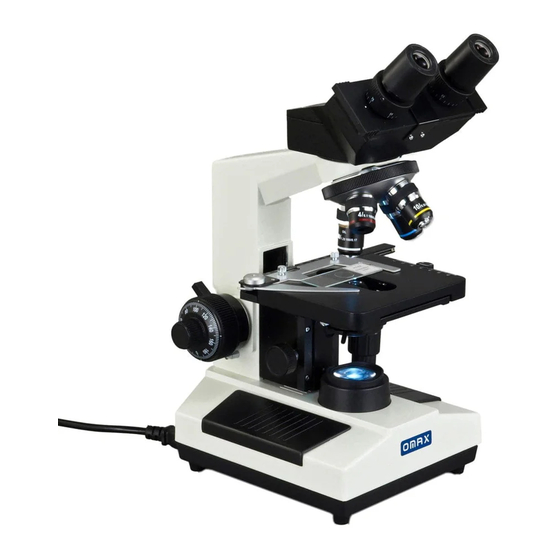

www.microscopenet.com 1 Components Illustration Eyepiece Microscope Base Brightness Intensity Dial Diopter Ring Viewing Head Power Switch Eyepiece Tube Head Thumb Lock Screw Focus Stop Lever Nosepiece Microscope Body Condenser Lock Thumb Knob Objective Focus Tension Ring Condenser Focus Knob Slide Holder Coarse Focus Knob Abbe Condenser Mechanical Stage... -
Page 6: Installation
www.microscopenet.com 2 Installation 2.1 Installation of the binocular viewing head 1) Loosen the head thumb lock screw on the top of the microscope body and remove the plastic cover on the top. 2) Remove the cap on the dovetail of the binocular viewing head. 3) Seat the dovetail completely of the viewing head into the socket on the top of the microscope body and tighten the head thumb lock screw. - Page 7 www.microscopenet.com Color Filter Color Filter Holder Fig.2 2.5 Replacing the fuse 1) Turn off the power switch and disconnect the power cord. 2) Turn over the microscope on its side; find the fuse holder at the bottom of the base. 3) Turn the fuse holder counter-clockwise to take it off, replace the fuse, and then turn it on clockwise.
-
Page 8: Operation
www.microscopenet.com Note: The mirror is only used when there is a power failure or you are in the field and no power is available. 2.7 Installation of the camera (optional, may not included in your package) 1) Take off the eyepiece from the eyepiece tube. 2) Insert the camera into the eyepiece tube, and then connect the camera to a computer via USB2.0 cable. - Page 9 www.microscopenet.com 3.4 Adjusting eyepiece diopter 1) Rotate the 10X objective into position. 2) Rotate the diopter rings on the eyepiece tubes until its numerical value is the same as your interpupillary distance, for example, 70 in the figure (See Fig. 6). 3) Close your left eye and bring the specimen into focus following the focusing procedures in 3.5.
- Page 10 www.microscopenet.com Fig.8 Caution (important): When you use the 100X objective to observe the specimen, you have to finish observing the specimen with the 4X, 10X, 40X objectives. When you use the 100X objective to observe the specimen, you have to apply the immersion oil on the top of the slide cover.
- Page 11 www.microscopenet.com 3.9 Adjusting focus tension The focus tension has been pre-set at the factory. If the mechanical stage drops by itself, rotate the tension adjustment ring (Fig. 10) situated between the coarse focus knob and microscope body on the power switch side until the tension is in maintained.
-
Page 12: Specifications
4 Specifications Model M827L series Total Magnification 40X, 100X, 400X, 1000X Viewing Head Binocular, 45º inclined, 360º swiveling Interpupillary Distance Sliding adjustment, 2-3/16" ~ 2-15/16" (55mm~75mm) Diopter Adjustment On both eyepiece tubes Eyepieces 1 pair of WF10X/18 Objective Tube Length... -
Page 13: Optional Parts
www.microscopenet.com 5 Optional Parts (The optional parts may be included in some models or sold separately.) 1) Cameras Model Resolution Operating System Software MS Windows A1502 640 x 480 (0.3MP) Mac OS X 10.6-10.8 A3513U 1280 x 1024 (1.3MP) A3520U 1600 x 1200 (2.0MP) Included MS Windows... -
Page 14: Troubleshooting Guide
www.microscopenet.com 6 Troubleshooting Guide GENERAL PROBLEMS Problem Cause Solution No electrical power Check power cord connection Lamp does not light LED or power unit dead Replace LED light when switched on Fuse blown out Replace fuse Revolve the nosepiece to click-stop Revolving nosepiece not in click stop Darkness at the position by swinging the objective...
