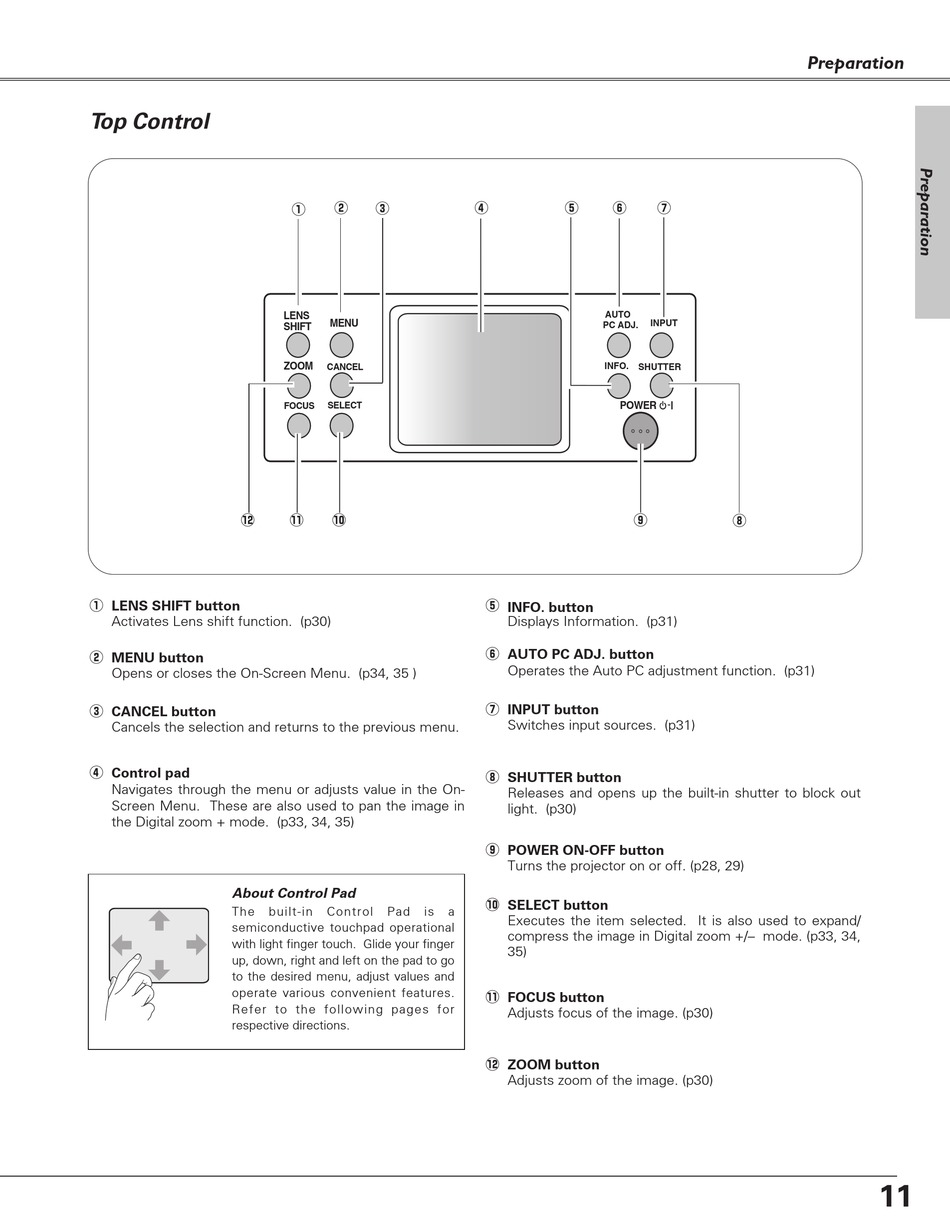

Top Control

!2
q LENS SHIFT button
Activates Lens shift function. (p30)
w MENU button
Opens or closes the On-Screen Menu. (p34, 35 )
e CANCEL button
Cancels the selection and returns to the previous menu.
r Control pad
Navigates through the menu or adjusts value in the On-
Screen Menu. These are also used to pan the image in
the Digital zoom + mode. (p33, 34, 35)
About Control Pad
The built-in
semiconductive touchpad operational
with light finger touch. Glide your finger
up, down, right and left on the pad to go
to the desired menu, adjust values and
operate various convenient features.
Refer to the following pages for
respective directions.
w e
q
LENS
MENU
SHIFT
ZOOM
CANCEL
FOCUS SELECT
!1 !0
Control Pad is a
r t y
AUTO
INPUT
PC ADJ.
INFO.
SHUTTER
POWER
o
t INFO. button
Displays Information. (p31)
y AUTO PC ADJ. button
Operates the Auto PC adjustment function. (p31)
u INPUT button
Switches input sources. (p31)
i SHUTTER button
Releases and opens up the built-in shutter to block out
light. (p30)
o POWER ON-OFF button
Turns the projector on or off. (p28, 29)
!0 SELECT button
Executes the item selected. It is also used to expand/
compress the image in Digital zoom +/– mode. (p33, 34,
35)
!1 FOCUS button
Adjusts focus of the image. (p30)
!2 ZOOM button
Adjusts zoom of the image. (p30)
Preparation
u
P
i
11
