Sanyo M-1060C Instruction Manual page 3

Compact cassette recorder
Hide thumbs


Advertisement

7. Cassette compartment
8. Battery compartment (back panel)
9. Tape counter and reset button (M-1110C only)
10. Record button (REC)
11. Play button (PLAY)
12. External DC 3V jack (EXT DC 3V)
13. Fast forward/Cue button (FFWD/CUE)
14. Rewind/Review button (REW/REV)
15. Stop button (STOP)
16. Pause switch (PAUSE)
POWER
AC adaptor
Connect the included AC adaptor (Part No. 645 016 1018)
to the EXT DC 3V jack (Fig. 2). (The batteries are automati-
cally disconnected.)
The centre pin of the EXT DC 3V jack is positive (+).
AC 120V
EXT DC3V
-E2-

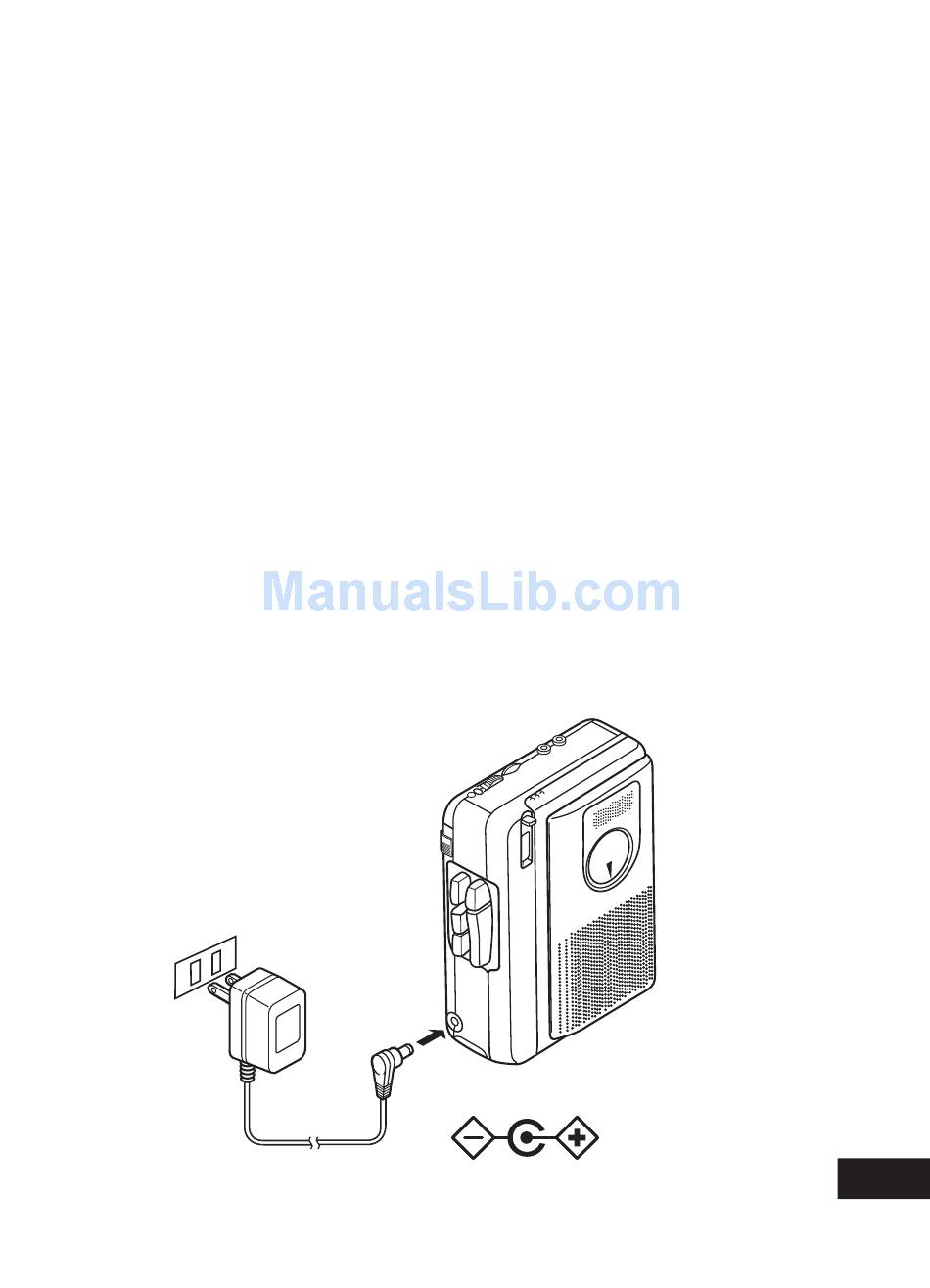

Fig. 2
