Sanyo MGP17 Service Manual

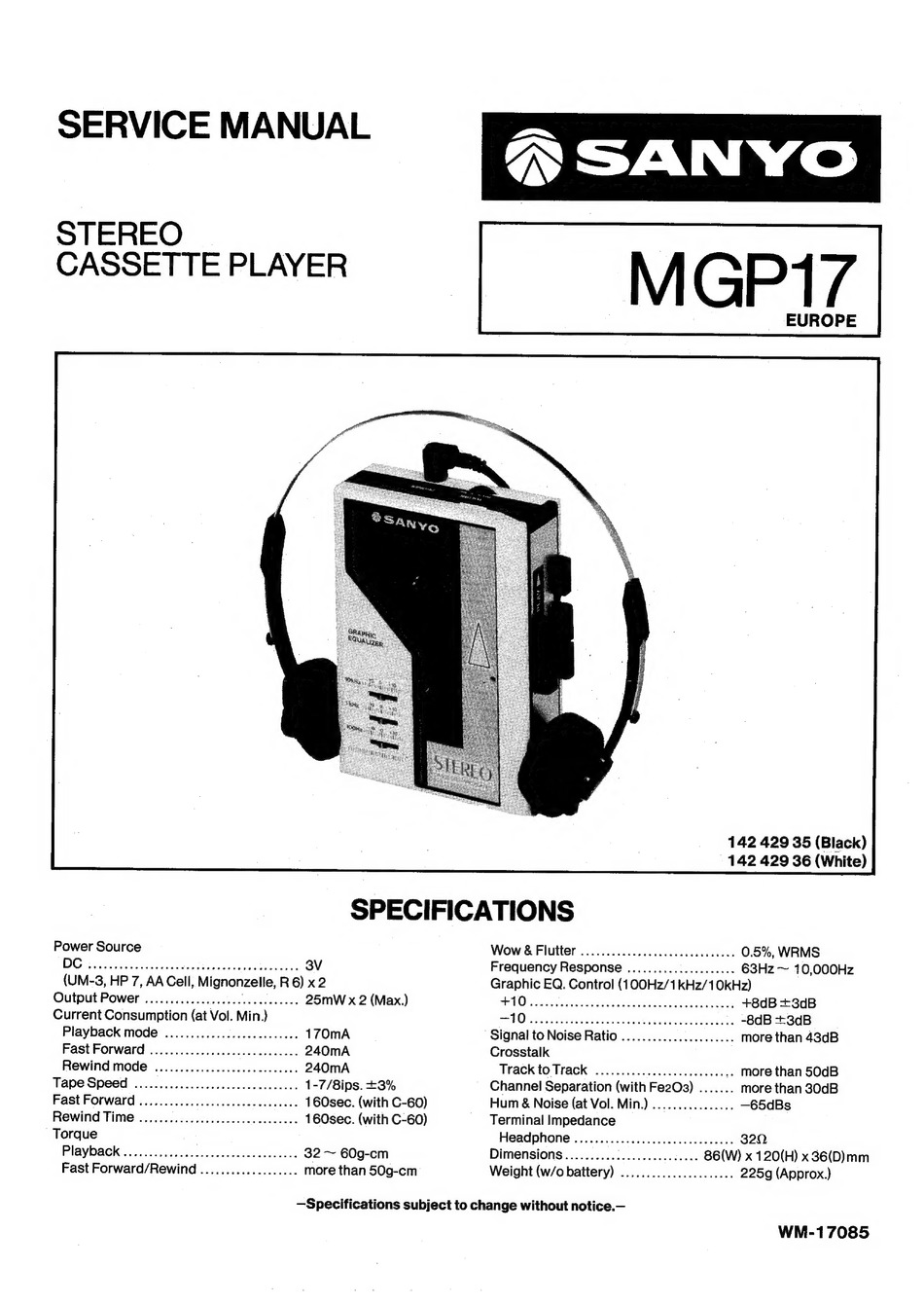

SERVICE MANUAL
STEREO
CASSETTE PLAYER
SANYO
MGP17
EUROPE
142 429 35 (Black)
142 429 36 (White)
SPECIFICATIONS
Power Source
DG snttinoxan Sach dhiSectn alee dees' 3V
(UM-3, HP 7, AA Cell, Mignonzelle, R 6) x 2
Output Power ..............cebeccceeseecees 25mW x 2 (Max.)
Current Consumption (at Vol. Min.)
Playback mode ............0.....cceceeee 170mA
Fast Forward .............cc.ccceceseacees 240mA
Rewind mode ....................cceceees 240mA
Tape Speed ooo... cece cee eceeeeeeeeeees 1-7/8ips. +3%
Playback .........c.ccccsceceseeceeeueeeees 32 ~ 60g-cm
Wow & Flutter ................cceeseeeseeeee 0.5%, WRMS
Frequency Response ..................... 63Hz ~ 10,000Hz
Graphic EQ. Control (100Hz/1kHz/10KHz)
UO assacsidavicagserdsedes eget secede sectors +8dB +3dB
Ove Sits 8 Shes behets Ponts ieeeteasee ce -8dB +3dB
Signal to Noise Ratio ..........0.0.........
more than 43dB
Crosstalk
Track to Track ........................... more than 50dB
Channel Separation (with Fe2O3) ....... more than 30dB
Hum & Noise (at Vol. Min.) ...........2.... —65dBs
Terminal Impedance
Headphone ................ccccceeeceeeaes 320,
Dimensions ...............0.e.cccaeas 86(W) x 120(H) x 36(D)mm
Weight (w/o battery) .............0.....008 225g (Approx.)
—Specifications subject to change without notice.—
WM-17085
