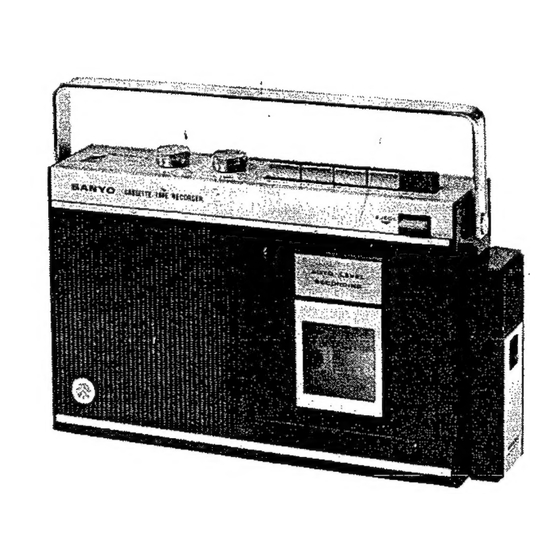

Portable Cassette Recorder
SERVICE
MANUAL
SANYO
ELECTRIC
CO.,
LTD.
INTERNATIONAL
DIVISION :
SANYO
ELECTRIC
TRADING
CO.,
LTD.
OSAKA,
JAPAN
'SPECIFICATIONS
Recording system
AC bias, double track
Frequency response
50 to 10,000 Hz
.
Erasing system
DC erase
Transistors |
25B303
x I
2SB187
x 1
Tape speed
1-7/8 ips. (4.8 cm/sec.)
2SB186 x 1
2SB405 x 2
Recording (playback)
2SB185
x 1
,
time
1 hour (C-60)
Diodes
1S188
x 1
181849
x 2
Rewind and fast
Thermistor
SDT-06
x 1
forward time
1' 45" (C-60)
Speaker
4" (10 cm) P. D. S. 8Q
Output power
1.5W max.
Power source
AC; 120/200/240 V, 50/60Hz multivoltage
Wow and flutter
0.3% RMS
DC; 6V, "C''-size (UM-2) batt.
x 4
Signal to noise ratio
40dB
Dimensions
6-7/16"(W) x 2-13/16 "(L) x 6-3/16"(H
Terminals
MIC.
10KQ
Weight
4.8 lbs.
AUXIN
270KQ
Accessories
Microphone, audition cassette, AC cord
EXT SP
82
DISASSEMBLEY
INSTRUCTION——
To remove the amplifier and mechanism from the cabinet:
1. Pull out the Tone and Volume control knobs.
2. Place the recorder front side down and remove the
screw
from
the center of the cabinet back.
CABINET
BACK
PUSH
STRAIGHT
Jf
, AND LIFT UP
3. Depressing the cabinet bottom with both thumbs, open'
the
FOR CABINET BACK
REMOVAL
FIRST TAKE OFF
THIS SCREW
back cabinet.
See Fig. 1 below.
ll
-
PUSH STRAIGHT
AND. LIFT UP
CABINET
FRONT
Fig 1.
