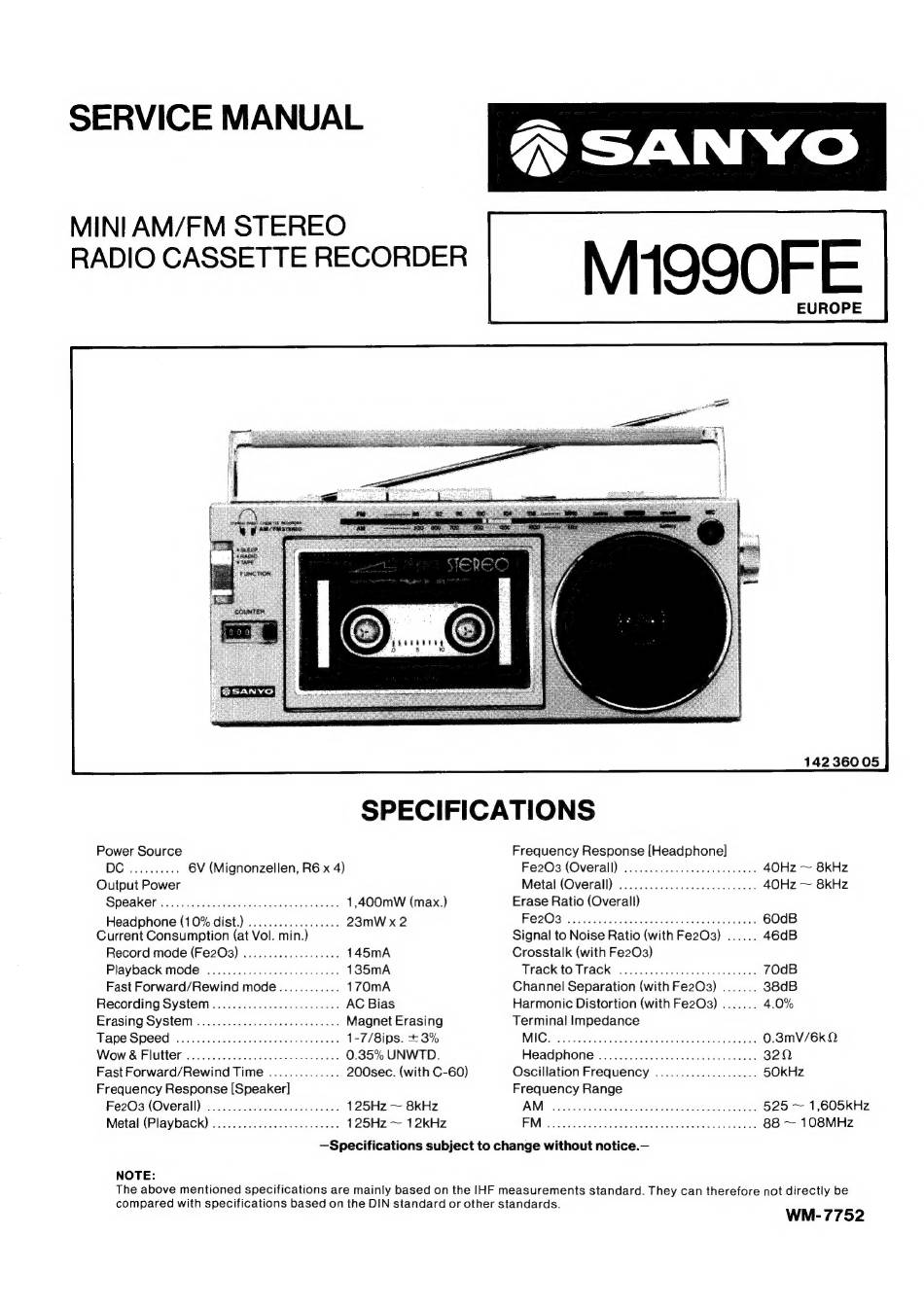

Sanyo M1990FE Service Manual

SERVICE MANUAL p~ |
qe SANYO
MINI AM/FM STEREO
RADIO CASSETTE RECORDER MISSOFE
EUROPE
©)
® 5 wm >
142 36005
SPECIFICATIONS
Power Source Frequency Response [Headphonel
DC ica 6V (Mignonzellen, R6 x 4) Fe203 (Overall) ...............ccce cee eee 40Hz ~ 8kHz
Output Power Metal (Overall) .................00.000c ee 40Hz ~ 8kHz
Sp6ak@ls ye cheapie cache ig ti eakwoked toaad ote 1,400mW (max.) Erase Ratio (Overall)
Headphone (10% dist.) .............0064. 23mW x 2 F208 ..... cece ieee eee eee eeetaeseneeeens 60dB
Current Consumption (at Vol. min.) Signal to Noise Ratio (with Fe2O3) ...... 46dB
Record made (Fe203) ................665 145mA Crosstalk (with Fe2O3)
Playback mode .....................0006- 135mA Track tO Track 2.0... eee cece eee 70dB
Fast Forward/Rewind mode............ 170mA Channel Separation (with Fe2O3) ....... 38dB
Recording System ...................0..56. AC Bias Harmonic Distortion (with Fe2O3) ....... 4.0%
Erasing System .................6.0 senses Magnet Erasing Terminal Impedance
Tape Speed si62c00eiscees essed tees 1-7/8ips. +3% MIGin ds sscevsnnititadas ventaheeteated coasntels 0.3mV/6kQ
Wow & Flutter ............... cc cece cece ee eee 0.35% UNWTD. Headphone .............ccceeee cece cece eee 320
Fast Forward/Rewind Time .............. 200sec. (with C-60) Oscillation Frequency .................... 50kKHz
Frequency Response [Speaker] Frequency Range
Fe2O3 (Overall) ...............ccce eee ee ee 125Hz ~ 8kHz BM os shecdomcostent. ft tan atta samasbanbaetan' 525 ~ 1,605kHz
Metal (Playback) ......................... 125Hz ~ 12kHz EM iio dtateitaee oN wah ade eeu 88 ~ 108MHz
—Specifications subject to change without notice.—
NOTE:
The above mentioned specifications are mainly based on the IHF measurements standard. They can therefore not directly be
compared with specifications based on the DIN standard or other standards.
WM- 7752
