Balluff BIC 1I0-IAA50-M30MI3-SM4A4A User Manual

IO-Link System
BIC 1I0-IAA50-M30MI3-SM4A4A,
BIC 2I0-IAA50-M30MI3-SM4A5A
BIC 2I0-IAA50-M30MI3-BPX04-002-M45A
Safety Informations
Intended use
This guide describes the Balluff Inductive Coupling
System BIC ... for the use in industrial environment
consisting of Base unit and Remote unit.
The electrical power is provided to the Remote unit via
air gap. Simultaneously data are transmitted in IO-Link
format.
The Base unit communicates via IO-Link protocol with
the host IO-Link master unit. The Remote unit is working
as a virtual IO-Link master unit to the connected IO-Link
device.
Read this operating guide thoroughly before
startup!
These sensors may not be used in
applications where the safety of persons
depends on device function (not a safety
component per the EU Machine Directive).
Caution!
Risk of burning on hot surfaces!
The active surface heats up even under
normal operating conditions.
Keep away hands and objects from the active
surface.
Avoid contact of metal objects on the active
surface. Fire hazard!
Approved personnel
Installation and startup are permitted only by trained
specialists.
Improper Use
Damage resulting from unauthorized actions or improper
use is not covered under the warranty and liability
provisions.
Obligations of the operator!
The equipment is an EMC Class A product. Such
devices may cause RF noise radiation. The operator
must take appropriate measures to account for this.
The operator is responsible for observing the locally
prevailing safety regulations.
Fault conditions
When defects and non-clearable faults occur in the
device, it must be taken out of service and secured
against unauthorized use.
1

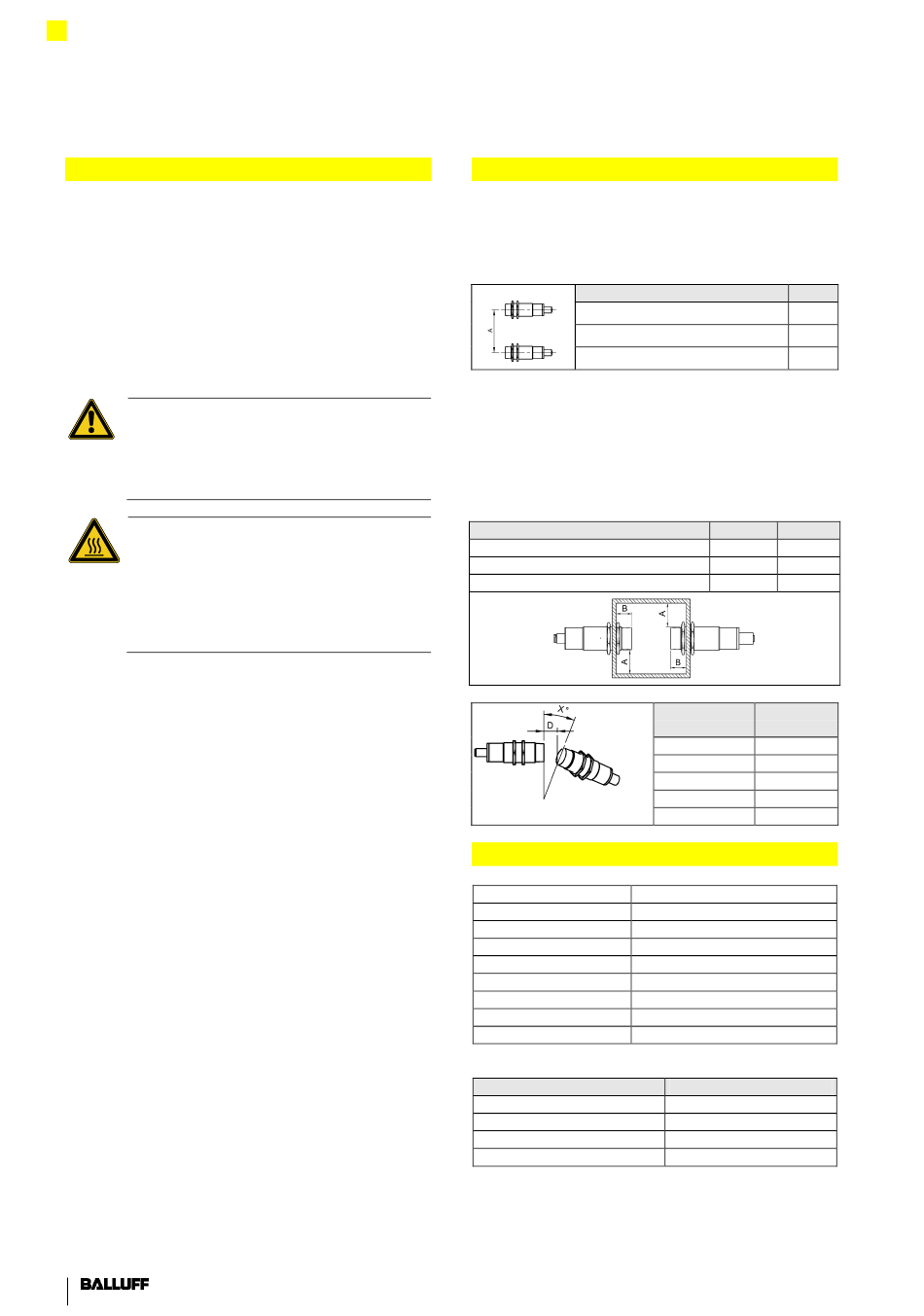

Installation
Mutual interference
To prevent mutual interference from other Base or
Remote units, maintain the following separation
distances.
BIC 1I0-IAA50...SM4A4A
BIC 2I0-IAA50...SM4A5A
BIC 2I0-IAA50-M30MI3-BPX04-002-M45A
Installation in metal
When installing in metal the specified minimum distances
from the surrounding sides of the metallic object must be
maintained, since otherwise the transmission distance
between Base and Remote will change. The
transmission distance can also be affected by the type of
metal.
Type
BIC 1I0-IAA50...SM4A4A
BIC 2I0-IAA50...SM4A5A
BIC 2I0-IAA50-M30MI3-BPX04-002-M45A
IO-Link Communication
Transmission rate COM2 (38,4 kBaud)
Frame type 1
Min cycle time 3 ms
Process data cycle < 200 ms
SIO Mode no
IO-Link Revision 1.0
Masterporttyp A
Processdata in 11
Processdata out 0
Errors
Error Code
device application error
0x80
device application error
0x80
Type A (mm)
100
100
100
A (mm) B (mm)
30 20
30 20
30 20
Distance D Angle X
in mm in °
1 18°
2 12°
3 10°
4 5°
5 0°
Additional Code
Index not available
0x11
SubIndex not available
0x12
