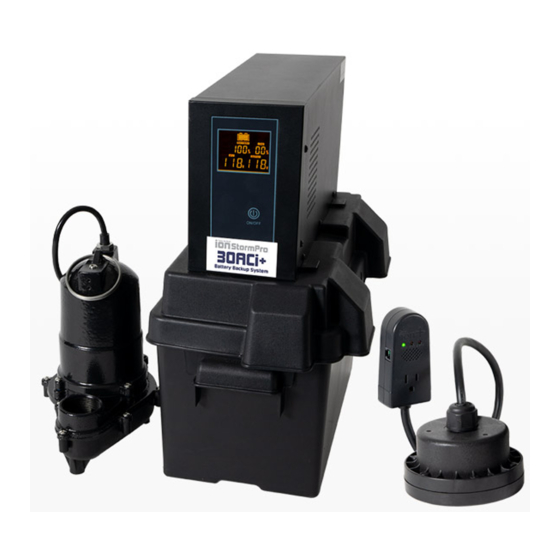

30ACi+, 30ACi Deluxe,
35ACi+ and 35ACi Deluxe
Battery Backup System
30ACi+
2
1
4
5
30ACi+
1. 600 va Inverter, PN: TW20313
2. Battery Box, PN: EP0----300
3. WC33M, PN: M5235033MN
4. Ion+ Switch/Alarm, PN: iNP20306
5. Ion Pipe Mount Bracket, PN: iN-SPB-1
6. Battery Leads, PN: TW20354
30ACi Deluxe
2
1
4
30ACi Deluxe
1. 600 va Inverter, PN: TW20313
2. Battery Box, PN: EP0----300
3. (2) WC33M, PN: M5235033MN
4. Ion Genesis, PN: iNG2-10-1B
5. Battery Leads, PN: TW20354
OPERATION MANUAL
Dated: 02/10/2015
Document Name: 30-35ACi+&Deluxe_OM
35ACi+
3
6
35ACi+
35ACi Deluxe
3
4
35ACi Deluxe
5
2
1
4
5
1. 800 va Inverter, PN: TW20315
2. Battery Box, PN: EP0----300
3. BA33M, PN: HP20180
4. Ion+ Switch/Alarm, PN: iNP20306
5. Ion Pipe Mount Bracket, PN: iN-SPB-1
6. Battery Leads, PN: TW20354
2
1
1. 800 va Inverter, PN: TW20315
2. Battery Box, PN: EP0----300
3. (2) BA33M, PN: HP20180
4. Ion Genesis, PN: iNG2-10-1B
5. Battery Leads, PN: TW20354
Register your product at www.sumpro.com
Page 1 of 12
3
6
3
5
Advertisement
Table of Contents
Related Manuals for ION ION 30ACi+
Summary of Contents for ION ION 30ACi+
- Page 1 3. WC33M, PN: M5235033MN 3. BA33M, PN: HP20180 4. Ion+ Switch/Alarm, PN: iNP20306 4. Ion+ Switch/Alarm, PN: iNP20306 5. Ion Pipe Mount Bracket, PN: iN-SPB-1 5. Ion Pipe Mount Bracket, PN: iN-SPB-1 6. Battery Leads, PN: TW20354 6. Battery Leads, PN: TW20354...
-
Page 2: Important Safety
30ACi+, 30ACi Deluxe, OPERATION MANUAL 35ACi+ and 35ACi Deluxe Dated: 02/10/2015 Document Name: 30-35ACi+&Deluxe_OM Battery Backup System Page 2 of 12 FAILURE TO HEED ABOVE CAUTIONS COULD ntroductIon RESULT IN INJURY OR DEATH. Reasonable care and safe methods should be practiced. -
Page 3: Battery Safety
30ACi+, 30ACi Deluxe, OPERATION MANUAL 35ACi+ and 35ACi Deluxe Dated: 02/10/2015 Document Name: 30-35ACi+&Deluxe_OM Battery Backup System Page 3 of 12 Personal Precautions CAUTION: The electrolyte is a dilute sulfuric CAUTION: Someone should be within the acid that is harmful to the skin and eyes. It is range of your voice to come to your aid when electrically conductive and corrosive. -
Page 4: Maintenance
30ACi+, 30ACi Deluxe, OPERATION MANUAL 35ACi+ and 35ACi Deluxe Dated: 02/10/2015 Document Name: 30-35ACi+&Deluxe_OM Battery Backup System Page 4 of 12 of their capacity used before recharge. Available 2. Push and hold the Power button on the front of in many sizes and types, be sure to use at least a the inverter for 3 –... - Page 5 From this point, measure up to find the On level, see Figure B on this page. The Ion+® switch does not operate like a standard pressure switch. There are no contacts to wear out, Factory-set ranges for Ion+...
- Page 6 30ACi+, 30ACi Deluxe, OPERATION MANUAL 35ACi+ and 35ACi Deluxe Dated: 02/10/2015 Document Name: 30-35ACi+&Deluxe_OM Battery Backup System Page 6 of 12 anel The inverter has two battery leads coming out from the back of the inverter, with a grey Anderson connector on the end, a MCB (main circuit breaker), pump output socket (120 volt) and a power cord to connect with AC power (120 volt).
- Page 7 30ACi+, 30ACi Deluxe, OPERATION MANUAL 35ACi+ and 35ACi Deluxe Dated: 02/10/2015 Document Name: 30-35ACi+&Deluxe_OM Battery Backup System Page 7 of 12 30ACi+/30ACi Deluxe System Performance Curve echnIcal pecIfIcatIonS 30ACi+/30ACi Deluxe Inverter Specifications Mains A.C. Lower Voltage Limit 90 VAC ± 5V Output Voltage with Full Load 110 - 120V ±...
-
Page 8: Troubleshooting
30ACi+, 30ACi Deluxe, OPERATION MANUAL 35ACi+ and 35ACi Deluxe Dated: 02/10/2015 Document Name: 30-35ACi+&Deluxe_OM Battery Backup System Page 8 of 12 run for 1 - 10 minutes to keep the internal arranty IS electronics cool. 2. Inverter Mode but No Power 1. - Page 9 30ACi+, 30ACi Deluxe, OPERATION MANUAL 35ACi+ and 35ACi Deluxe Dated: 02/10/2015 Document Name: 30-35ACi+&Deluxe_OM Battery Backup System Page 9 of 12 b. Possible loose AC output connection. e. Inlet holes in pump base are clogged. Remove pump and clean the openings. i.
- Page 10 Note that, being an electronic switch, you will not hear a clicking sound. iii. If the pump does not turn on, the Ion+ switch/alarm may have to be replaced. iv. If the pump does turn on, continue to Register your product at www.sumpro.com...
- Page 11 30ACi+, 30ACi Deluxe, OPERATION MANUAL 35ACi+ and 35ACi Deluxe Dated: 02/10/2015 Document Name: 30-35ACi+&Deluxe_OM Battery Backup System Page 11 of 12 oteS Register your product at www.sumpro.com...
- Page 12 Coverage and Term. Metropolitan Industries, Inc. (“Metropolitan”) warrants to the original purchaser (the “Buyer”) of each Ion® product (the “product”), that any part thereof which proves to be defective in material or workmanship within three (3) years from date of manufacture, will be replaced at no charge with a new or remanufactured part, F.O.B.
