Summary of Contents for Osram LMS134R2

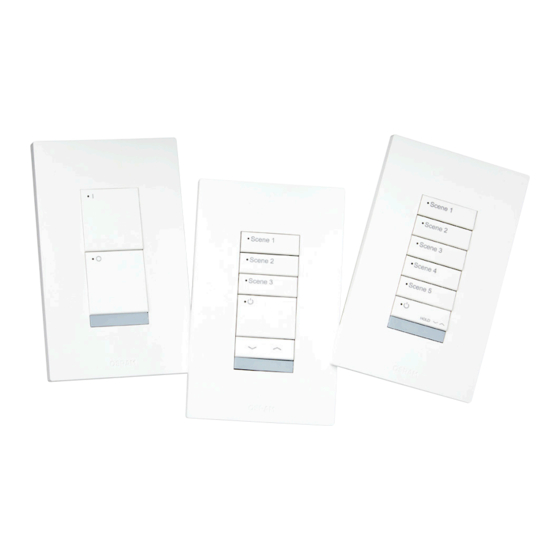

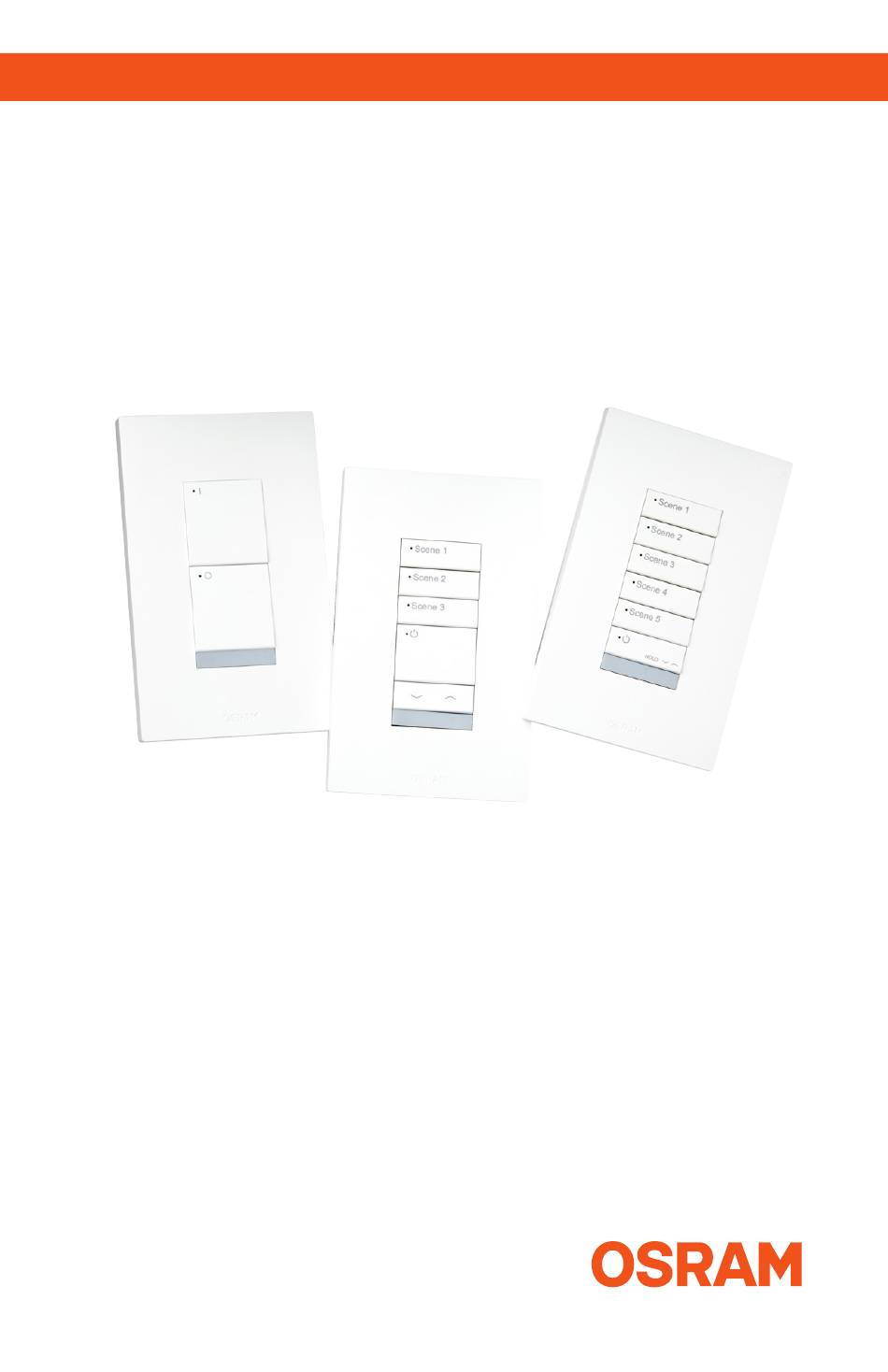

- Page 1 Wireless Wallstations Wiring and installation manual Light is OSRAM...
- Page 2 Equipment should be mounted in locations and at heights where it will not readily be subjected to tampering by unauthorized personnel. — The use of accessory equipment is not recommended by OSRAM as it may cause an unsafe condition. Note —...
- Page 3 Battery slots Wallstation - Rear view Wallstation Installation Electrical Metal Device Box: Install the mounting bracket using the supplied screws. Ensure that the OSRAM logo and SINGLE GANG labels are facing up. Mounting bracket J-Box...
- Page 4 Wallstation Installation (continued) Low Voltage Device Box: Mounting bracket Old Work Low Voltage Mounting Bracket Place the wallstation assembly into the mounting plate and push gently until ‘clicks’ are heard. This confirms that the pieces are secured.
- Page 5 Multi-gang WS installations require multi-gang decorator wall plates. Remove the button assembly from the OSRAM wall plate. This can be achieved by pressing the wall plate with your thumbs near the button assembly while grasping the OSRAM Wall Plate.
- Page 6 Decorator Plate Installation (continued) Orient the mounting bracket such that the DECORATOR and MULTI GANG labels are facing up. Insert the wallstation button assembly into the mounting plate until ‘clicks’ are heard. Clicks confirm that the pieces are secured. Install the mounting bracket using the supplied screws. Install the decorator plate using screws supplied with the decorator plate.
- Page 7 Installation Notes Consult the OSRAM website for the most up-to-date version of the wireless system design guide and install this product according to the guidelines. The Wireless Wallstation is to be installed in dry, indoor locations ONLY. Do not install the Wireless Wallstation in damp locations. Damp locations are defined...
- Page 8 Wilmington, MA 01887 USA 888-531-7573 www.osram.us/ds OSRAM is a registered trademarks of OSRAM GmbH. ENCELIUM EXTEND is a registered trademark of OSRAM SYLVANIA Inc. ENCELIUM EDGE is a trademark of OSRAM SYLVANIA Inc. Specifications subject to change without notice.. LMS134R2 4-18...
