V.b) Main screen view and description

The user operates the controller using buttons located next to the display.
4

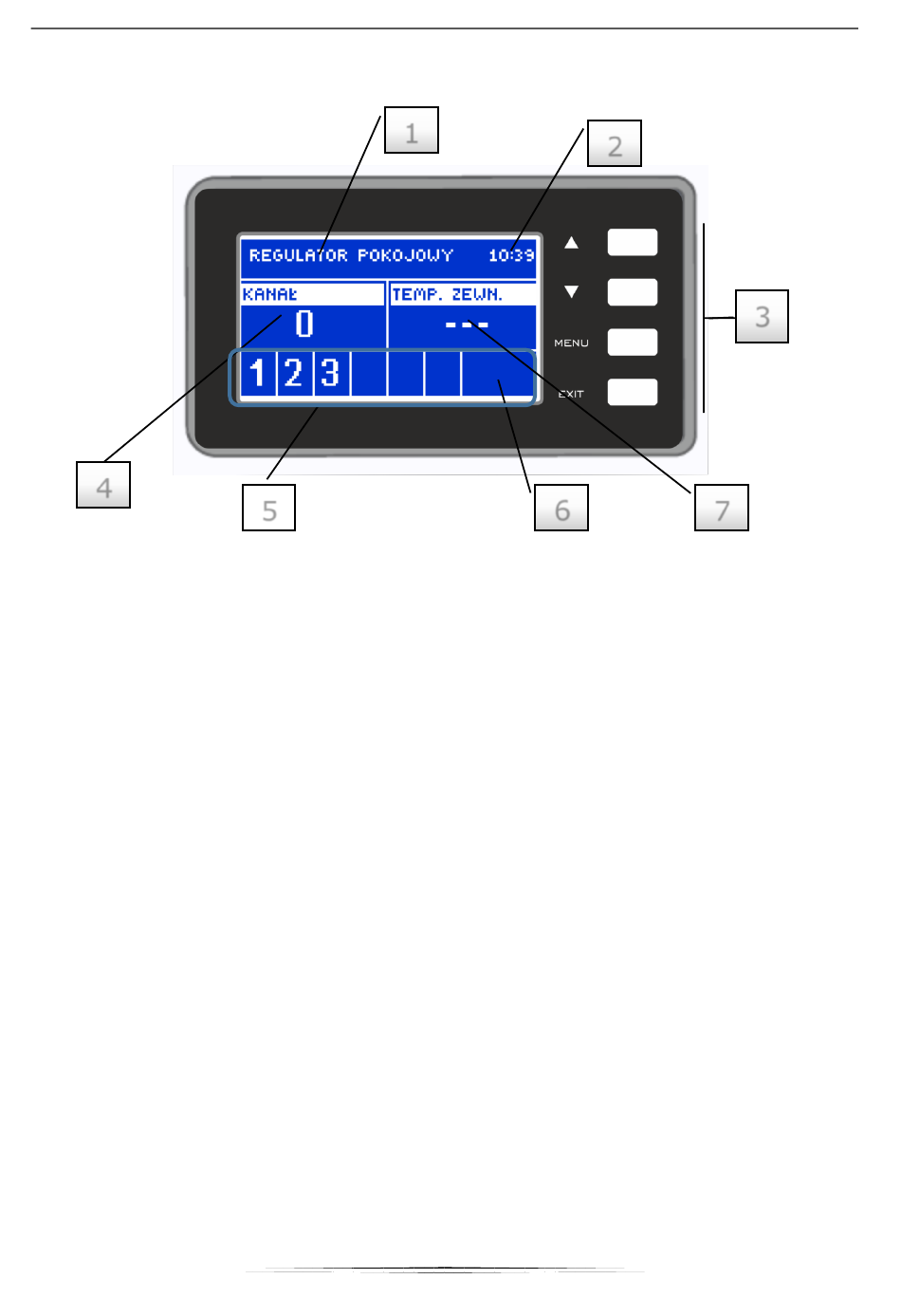

1. Information about active master room regulator (ST-285)
2. Current time
3. Buttons used to navigate
4. Current communication channel
5. Information about the zones:
A digit displayed on the screen refers to the room regulator which reports
insufficient/sufficient room temperature. If the digit is flashing, the room temperature is
too low – the valves are open. If a digit is not displayed, there is no signal from the room
regulator assigned to this number.
6. Information about active built-in valve
V.c) Controller functions – main menu.
Due to a great number of functions offered by the controller, the menu is divided into
Main menu and Fitter's menu.
1
5
2
6
9
3
3
7
