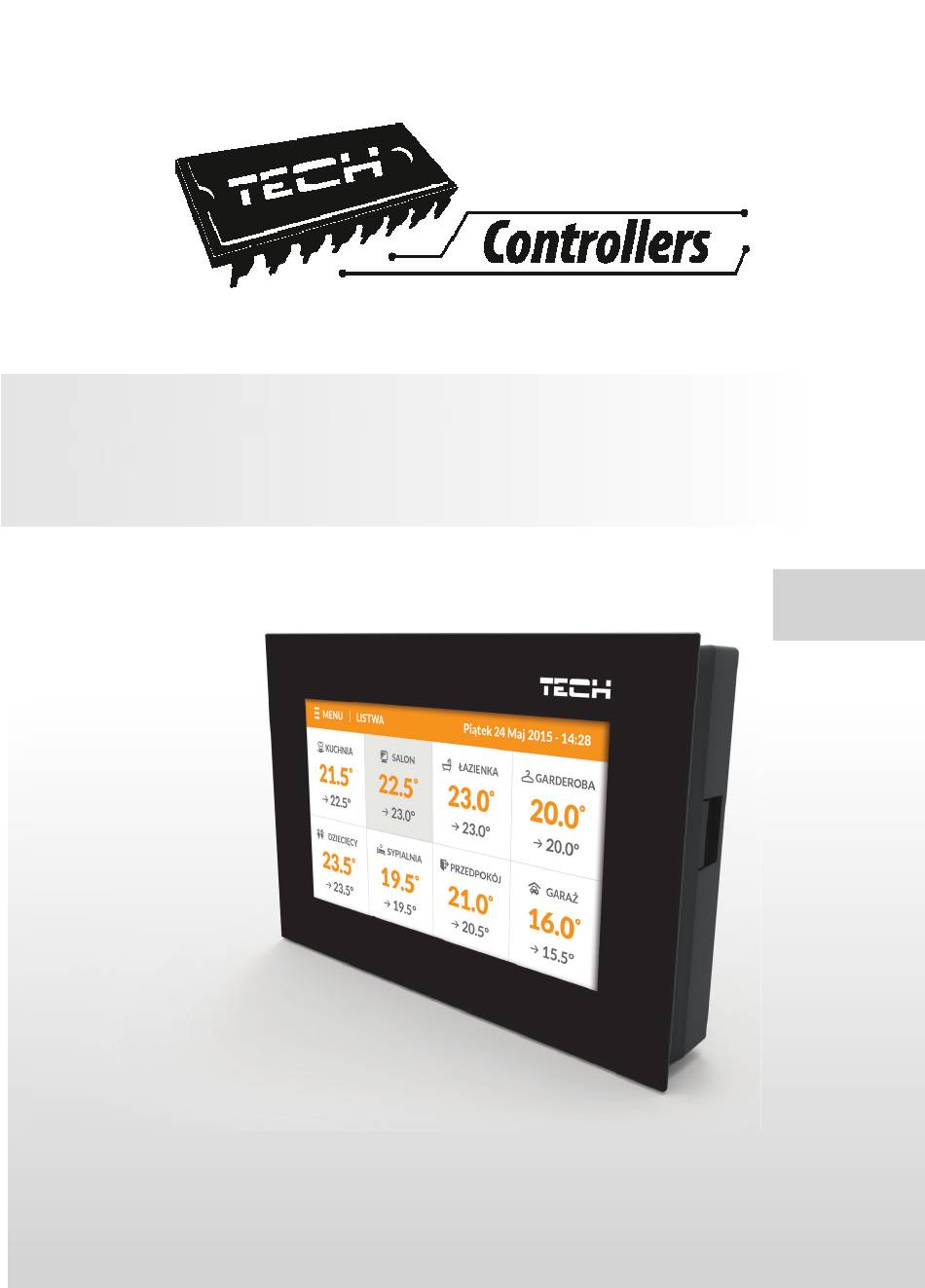

- Page 1 www.tech-controllers.com...
-
Page 2: Table Of Contents
User’s manual Table of Contents Safety Description III. Installation How to use the controller Controller operation modes V.a) Schedule V.b) Manual mode How to manage zones VI.a) Schedule settings VI.b) Operation VII. Controller menu VII.a) Time settings VII.b) Screen settings VII.c) Alarm clock settings VII.d) Protections... -
Page 4: Safety
User’s manual I. Safety Before using the device for the fi rst time the user should read the following regulations carefully. Not obeying the rules included in this manual may lead to personal injuries or controller damage. The user’s manual should be stored in a safe place for further reference. -
Page 5: Description

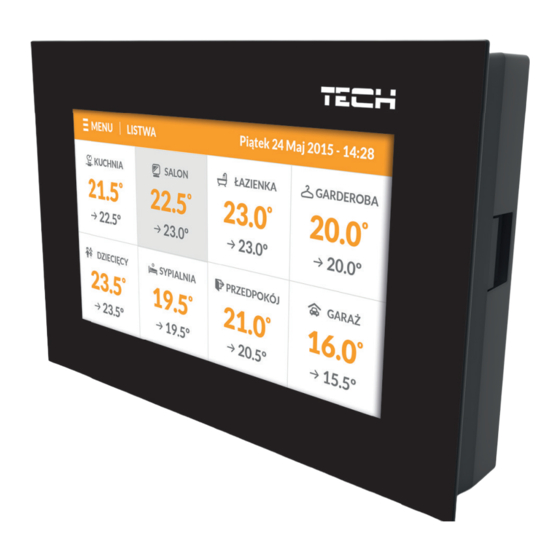

Description M-7 is intended for cooperation with L-7 external controller. It enables the user to control the devices of the underfl oor heating system. M-7 off ers the possibility of changing the pre-set temperature in each zone, setting up a weekly schedule or deactivating the zone altogether. -
Page 6: Installation
User’s manual III. Installation The controller should be installed by a qualifi ed person. WARNING Risk of fatal electric shock from touching live connections. Before working on the controller switch off the power supply and prevent it from being accidentally switched WARNING Incorrect connection of wires may damage the regulator! PORT... -
Page 7: How To Use The Controller
How to use the controller How to use the controller 1. Enter the controller menu 2. Current time and date 3. Status of particular zones: 4. Zone number 5. Current zone temperature 6. Pre-set zone temperature... -
Page 8: Controller Operation Modes
User’s manual Controller operation modes V.a) Schedule Once a particular schedule has been activated, the pre-set temperature depends on pre- defi ned settings. It is possible to assign separate pre-set temperature values to the maximum of 3 time periods (see: Schedule settings). In order to change the schedule, tap on the area of the screen displaying information about current operation mode (area number 2... -
Page 9: V.b) Manual Mode
V.b) Manual mode Tap on the pre-set temperature in order to activate manual mode – defi ne the pre-set temperature and how long it will apply in a given zone. Use ▲ and ▼ to adjust the pre-set temperature, or drag the temperature slider (displayed on the left-hand side of the screen). -
Page 10: How To Manage Zones
User’s manual How to manage zones M-7 is a master room regulator – it enables the user to edit most parameters of other zones. In order to edit a given zone parameters, tap on the area of the screen with zone status information. -
Page 11: Vi.a) Schedule Settings
VI.a) Schedule settings M-7 room regulator off ers two types of schedules – local and global. Global schedules are available in all zones – in each zone only one such schedule may be activated. The global schedule settings apply automatically in all remaining zones where a given global schedule is active. -
Page 12: Vi.b) Operation
User’s manual Time period editing screen enables the user to adjust the pre-set temperature and the time limits of the period with the accuracy of 15 minutes. If the time periods overlap, they are marked with red colour. Such settings cannot be confi... -
Page 13: Controller Menu
VII. Controller menu Tap on MENU icon in the main screen to enter the controller menu. -
Page 14: Vii.a) Time Settings
User’s manual VII.a) Time settings Tapping on this icon opens up a screen enabling the user to set the time, date and defi ne the time limits for daytime and nighttime (Day from... and Night from...). VII.b) Screen settings Tap on this icon to adjust the screen settings to individual needs. -
Page 15: Vii.c) Alarm Clock Settings
It is possible to upload up to 8 photos. When uploading new photos, the old ones are automatically removed from the controller memory. • Idle time This function is used to defi ne the time after which the screensaver is activated. •... -
Page 16: Vii.e) Language
VIII. Protections M-7 room temperature regulator signalizes all alarms which occur in L-7 external controller. In the event of alarm, the room regulator sends a sound signal and the display shows the same message as the external controller. If the internal sensor is damaged, the following alarm appears: ‘Room temperature sensor damaged’. - Page 17 EU Declaration of conformity Hereby, we declare under our sole responsibility that M-7 manufactured by TECH, headquartered in Wieprz Biała Droga 31, 34-122 Wieprz, is compliant with: • Directive 2014/35/EU of the European Parliament and of the Council of February 26, 2014 on the harmonisation of the laws of Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits (EU Journal of Laws L 96, of 29.03.2014, p.
- Page 18 User’s manual...
- Page 20 TECH Spólka z ograniczoną odpowiedzialnością Sp.k. Biała Droga 31 34-122 Wiperz SERWIS 34-652 Bulowice ul. Skotnica 120 Tel.: +48 33 8759380, +48 33 3300018 +48 33 8751920, +48 33 8704700 Fax. +48 33 8454547 serwis@techsterowniki.pl Monday - Friday 7:00 - 16:00...
