Summary of Contents for TECH ST-670
- Page 2 Pellet loader – user's manual TECH Declaration of Conformity No. 73/2012 Hereby, we declare under sole responsibility that the ST-670 230V 50Hz thermoregulator manufactured TECH, headquartered in Wieprz 1047A, 34-122 Wieprz, is compliant with the Regulation by the Ministry of Economy. (Journal of Laws Dz.U.

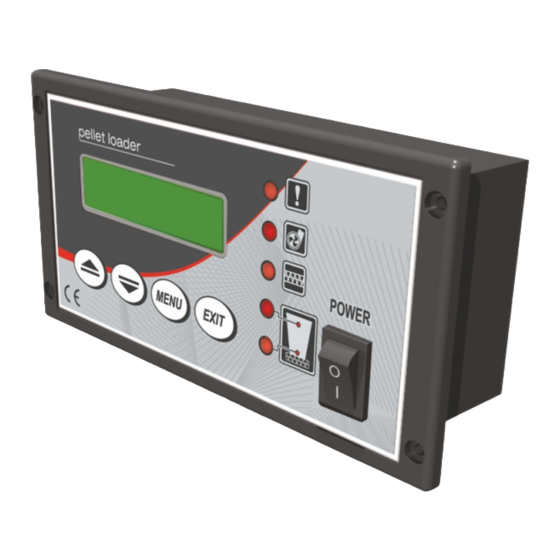

- Page 4 Pellet loader – user's manual I. OpisDescription Pellet loader controller is intended for maintenance of a proper biofuel (pellet) level in pellet boiler hoppers with maximum measuring sensors of 3.5 m. Controller operation involves a control of the biofuel level in the hopper.
- Page 5 TECH II. Controller functions This chapter describes the controller functions, methods for changing the settings and navigation through the menu. II.a) Main page The main page is shown in the LCD display during normal operation with the following data displayed on it: current time ●...
- Page 6 Pellet loader – user's manual II.f) Language This function is used to select the language version of the controller menu. III. Protections To ensure safe and failure-free operation, the controller is equipped with a number of protections. When an alarm occurs the buzzer goes off and a corresponding message appears in the display.
- Page 7 TECH TECHNICAL DATA Specification Unit. Power supply 230V/50Hz +/-10% Power consumption Ambient temperature 5÷50 Feeder output load Feeder additional output load Fuse insert IV.a) Assembly NOTE: Installation should be performed by a properly qualified technician! Do not install the unit with the power on (make sure that the...
