wtw DIQ/S 182 Operating Manual

Measuring system for 2 digital sensors, with 4 current outputs
Hide thumbs
Table of Contents

Advertisement

Quick Links

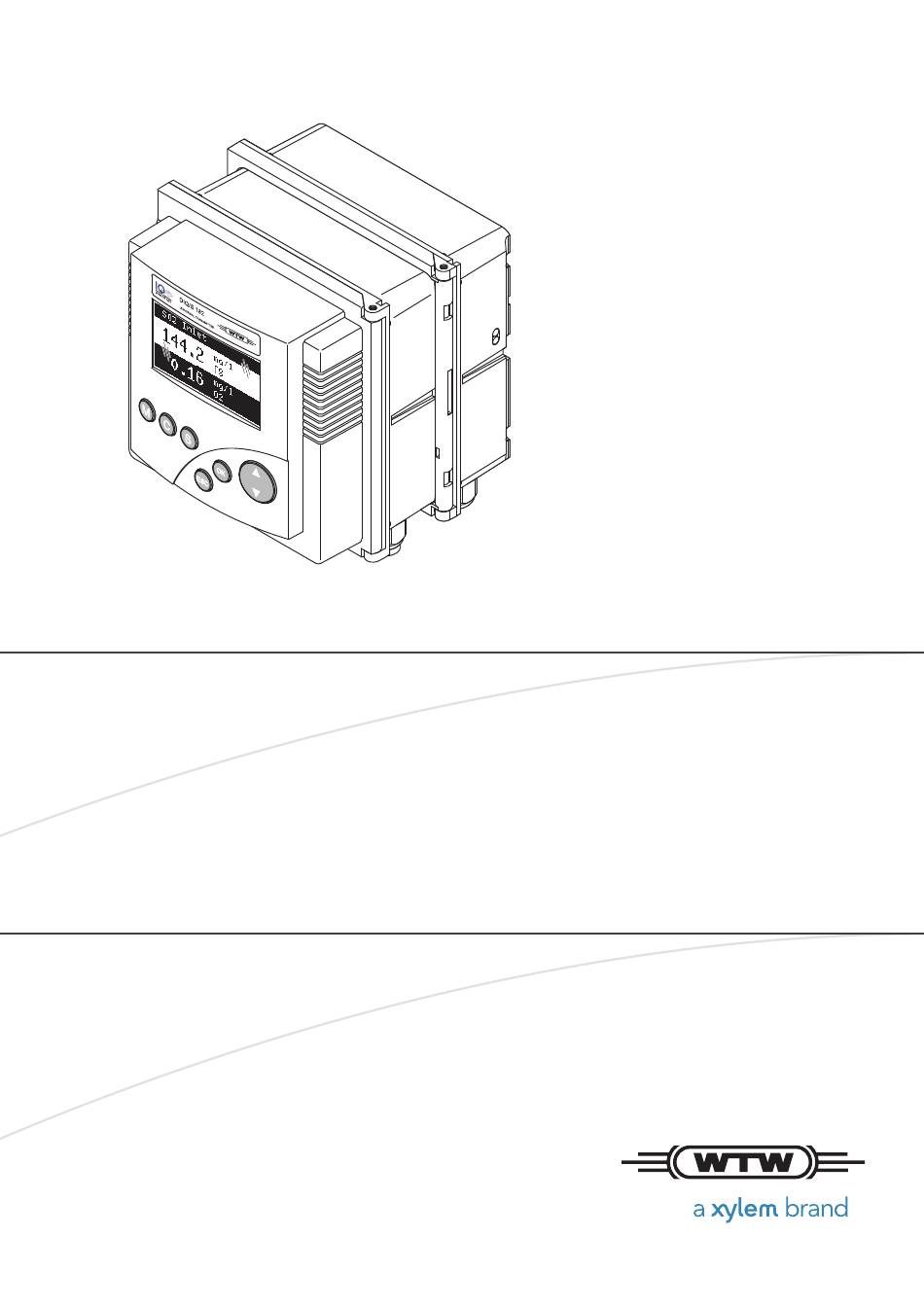

OPERATING MANUAL
ba75559e05 12/2014
System 182 XT
DIQ/S 182 + DIQ/CR3
MEASURING SYSTEM FOR 2 DIGITAL SENSORS, WITH 4 CURRENT OUTPUTS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIQ/S 182 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for wtw DIQ/S 182

Summary of Contents for wtw DIQ/S 182

  • Page 1 OPERATING MANUAL ba75559e05 12/2014 System 182 XT DIQ/S 182 + DIQ/CR3 MEASURING SYSTEM FOR 2 DIGITAL SENSORS, WITH 4 CURRENT OUTPUTS...
  • Page 2 IQ S DIQ/S 182 XT ENSOR © Copyright Weilheim 2014, WTW GmbH Reprinting - even as excerpts - is only allowed with the explicit written authorization of WTW GmbH, Weilheim.. Printed in Germany. ba75559e05 12/2014...
  • Page 3 DIQ/CR3 Main components Fig. 1-1 Main components Scope of delivery The DIQ/S 182 Universal Transmitter is delivered with an attached DIQ/CR3 combination output module. Note Usage of the DIQ/CR3 is possible in conjunction with the System 182 only. Operating manual...
  • Page 4 100... VOLTAGE 240V AC + REC1 - SENSORNET 1 NETZ/MAINS AUXILIARY Fig. 3-1 Terminal strip of the DIQ/S 182 in the set DIQ/S 182 XT £ £ 240V AC 240V AC 0/4...20mA £ £ 24V AC DC 2A AC...
  • Page 5 Outputs of the DIQ/CR3 Fig. 3-4 Submenus in the SETTINGS menu of the DIQ/S 182 XT The relay outputs and current outputs of the DIQ/S 182 and DIQ/CR3 have the same functions and setting options. Checking the status of the outputs The current states of all outputs can be called up via the measured value and status display.
  • Page 6 Outputs of the scope of delivery DIQ/S 182 XT DIQ/S 182 XT 3 - 4 ba75559e05 12/2014...
  • Page 7 OPERATING MANUAL ba75499e09 12/2014 DIQ/S 182 System 182 CONTROLLER (DIQ/S 182)
  • Page 8 DIQ/S 182 System 182 © Copyright Weilheim 2014, WTW GmbH Reprinting - even as excerpts - is only allowed with the explicit written authorization of WTW GmbH, Weilheim.. Printed in Germany. ba75499e09 12/2014...

  • Page 9: Table Of Contents

    DIQ/S 182 (Line power version) ........
  • Page 10 Outputs of the DIQ/S 182 ........
  • Page 11 DIQ/S 182 ........
  • Page 12 Contents System 182 0 - 4 ba75499e09 12/2014...

  • Page 13: Overview

    Structure and function The System 182 is a modular, multiparameter measuring system. The control and operation unit of the system is the DIQ/S 182 Universal Transmitter with integrated power pack. It has three relay outputs and two current outputs to be connected to existing process control systems.
  • Page 14 For quick orientation, the states of all relay and current outputs are clearly indicated on the display. Compressed air-driven The DIQ/S 182 Universal Transmitter is prepared for the compressed cleaning system air-driven, time-controlled sensor cleaning function. For this, a DIQ/ CHV valve module and if necessary a CH cleaning head is required per sensor (both available as accessories).

  • Page 15: Behavior Of The System In The Case Of Power Failure

    System 182 Overview Behavior of the system in the case of power failure  The system configuration remains stored permanently. It consists of the following settings: – Sensor settings – Settings and links of relay outputs – Settings and links of current outputs –...
  • Page 16 Overview System 182 1 - 4 ba75499e09 12/2014...

  • Page 17: Safety

    The following documents provide additional information, which you should observe for your safety when working with the measuring sys- tem:  Operating manuals of other components of the DIQ/S 182 system (power packs, controller, accessories)  Safety datasheets of calibration and maintenance equipment (e.g.

  • Page 18: Safe Operation

    ECHNICAL DATA User qualification Target group The DIQ/S 182 system was developed for online analysis. Some maintenance activities, e.g. changing the membrane caps in D.O. sensors, require the safe handling of chemicals. Thus, we assume that the maintenance personnel is familiar with the necessary precautions to take when dealing with chemicals as a result of their professional training and experience.
  • Page 19 WARNING A circuit (except for the power supply connections), that is connected to an DIQ/S 182 component, must not feed any voltages or currents that are not allowed. It has to be made sure that the circuit at any time meets all requirements of a Limited circuit or Limited Power as well as of SELV (Safety Extra Low Voltage).
  • Page 20 Safety System 182 2 - 4 ba75499e09 12/2014...

  • Page 21: Installation

    Basics of the installation 3.2.1 Requirements of the measurement location The measurement location must meet the environmental conditions specified in section 9.1 DIQ/S 182. 3.2.2 Additional MIQ power supply modules The power pack of the Universal Transmitter supplies enough power for most combinations of sensors.
  • Page 22 Installation System 182 2nd sensor 1st sensor ® TriOxmatic 700 IQ (SW) ® TriOxmatic 701 IQ ® TriOxmatic 702 IQ FDO 70x IQ (SW) ® TetraCon 700 IQ (SW) ® AmmoLyt 700 IQ ® NitraLyt 700 IQ Plus VARiON 700 IQ (with NH4-N or NO3-N) ®...

  • Page 23: Safety Requirements On The Electrical Installation

    System 182 Installation Safety requirements on the electrical installation Electrical equipment (e.g. motors, contactors, cables, lines, relays) must meet the following requirements:  Conformity with national regulations (e.g. NEC, VDE and IEC)  Suitability for the electrical conditions at the installation site –...
  • Page 24  internal device-related protective measures and  external protective measures of the installation environment. The internal device-related protective measures are already integrated in the WTW online measuring technology as so-called 'lightning protection' (see chapter 9 T ECHNICAL DATA The external protective measures of the installation environment can...
  • Page 25 System 182 Installation electric field lines in the area of the MIQ module through an advantageous development of the electrical field lines in the area of the MIQ module and promote the dissipation of the surge via the mounting construction. 6 The mains voltage for supplying the measuring system must comply with overvoltage category II.

  • Page 26: Connecting System Components

    The back of the Universal Transmitter or an MIQ module is attached to the lid of an MIQ module (page 3-8). DIQ/S 182 Select this variant if an MIQ Module MIQ module is already permanently installed, e.g. to a wall.
  • Page 27 System 182 Installation only may be mounted per stack in addition to the Universal Transmitter. NOTE In the case of panel mounting, the front module must be installed individually in the switch cabinet aperture first. Only then can any MIQ modules be added (variant 2). NOTE The terminator switch on the terminal strip of all MIQ modules in the System 182 must be set to "Off".

  • Page 28: Variant 1: Stack Expansion Forwards

    System 182 3.5.2 Variant 1: Stack expansion forwards Preparing the stack mounting MIQ module DIQ/S 182 Fig. 3-1 Preparing MIQ modules for stack mounting (variant 1) Remove the covers from the drilled mounting holes (pos. 1 and 3 in Fig. 3-1).
  • Page 29 Transmitter with the two plastic tapping screws (pos. 6). On the Universal Transmitter, remove the two countersunk screws (pos. 7 in Fig. 3-2) and swing open the lid. Premounting the ISO DIQ/S 182 blind nuts Fig. 3-3 Premounting the ISO blind nuts (variant 1) Insert the cheese-head screws (pos.
  • Page 30 Installation System 182 Stacking the MIQ modules MIQ module DIQ/S 182 Fig. 3-4 Stacking the MIQ modules (variant 1) MIQ module DIQ/S 182 Fig. 3-5 Closing the enclosure (variant 1) Attach the prepared Universal Transmitter to the lid of the MIQ module.

  • Page 31: Variant 2: Stack Expansion Backwards

    System 182 Installation 3.5.3 Variant 2: stack expansion backwards Preparing the stack MIQ module DIQ/S 182 mounting Fig. 3-6 Preparing the MIQ modules for stack mounting (variant 2) Remove the covers from the drilled mounting holes (pos. 1 and 3 in Fig. 3-6).
  • Page 32 Installation System 182 Note Only use the plastic tapping screws supplied for attaching the contact base. They ensure the correct fit. Attach the contact base (pos. 6 in Fig. 3-7) on the Universal Transmitter with the two plastic tapping screws (pos. 7). Premounting the ISO MIQ module blind nuts...
  • Page 33 System 182 Installation Stacking the MIQ modules MIQ module DIQ/S 182 Fig. 3-9 Stacking the MIQ modules (variant 2) DIQ/S 182 MIQ module Fig. 3-10 Closing the enclosure (variant 2) Attach the prepared MIQ module to the back of the Universal Transmitter.

  • Page 34: Distributed Mounting

    Installation System 182 Close the MIQ module and fix it with the two countersunk screws (pos. 5 in Fig. 3-10). 3.5.4 Distributed mounting General information For the locally separated connection between Universal Transmitter and MIQ modules and between MIQ modules the following cables can be used: ...
  • Page 35 System 182 Installation  Phillips screwdriver  Small screwdriver. Preparing the cable Cut off the cable to the required length. ends Remove approx. 45 mm of cable insulation (in the case of the SNCIQ/UG earth cable, remove both the inner and outer insulation).
  • Page 36 Installation System 182 Select a free SENSORNET connection. At the same time, look out for the SENSORNET designation on the label on the bottom of the enclosure. SENSORNET SNCIQ SACIQ SNCIQ/UG Fig. 3-12 Connecting cables (example of Universal Transmitter) Screw a cable gland (pos. 1 in Fig. 3-12) with the sealing ring (pos.
  • Page 37 System 182 Installation Terminal designation: SENSORNET 1 Filler stranded wire (SNCIQ...) or black (SACIQ) green SNCIQ(/UG) or SACIQ Fig. 3-13 SENSORNET connection Connect the cable ends to the terminal strip. At the same time, look out for the designations of the terminals (red / shield / green).

  • Page 38: Connecting Iq Sensors

    3.5.5 Connecting IQ sensors Sensors can be connected to all free SENSORNET connectors in the 182 system. The DIQ/S 182 Universal Transmitter has a SENSORNET connector. With the DIQ/JB branching module you can connect two sensors to the Universal Transmitter (see section 3.7 and installation examples in section 3.12).
  • Page 39 System 182 Installation SACIQ Fig. 3-14 Connecting the SACIQ cable with the IQ sensor NOTE For further instructions on the mounting of IQ sensors at the application location, please see the respective manuals (immersion depths, etc.). ba75499e09 12/2014 3 - 19...

  • Page 40: On Site Mounting Of The Universal Transmitter And Miq Modules

    On site mounting of the Universal Transmitter and MIQ Modules 3.6.1 General information The DIQ/S 182 and the DIQ and MIQ modules have a comprehensive program of mounting accessories, which can be used to adapt the installation to the most varied requirements.

  • Page 41: Mounting On A Mounting Stand With The Ssh/Iq Sun Shield

    System 182 Installation 3.6.2 Mounting on a mounting stand with the SSH/IQ sun shield  SSH/IQ sun shield (see chapter 10 A Materials required CCESSORIES AND OPTIONS  4 mm set screw wrench Tools  Phillips screwdriver. Mounting the sun shield on a mounting stand Fig.
  • Page 42 Installation System 182 Premounting the ISO blind nuts Fig. 3-16 Mounting the sun shield: Premounting the ISO blind nuts Remove the two countersunk screws (pos. 5 in Fig. 3-16) and swing open the lid. Insert the cheese-head screws (pos. 6 in Fig. 3-16) with the plastic washers in the drilled mounting holes and loosely screw in the ISO blind nuts (pos.
  • Page 43 System 182 Installation Mounting the Universal Transmitter on the sun shield Fig. 3-17 Mounting the Universal Transmitter on the SSH/IQ sun shield Position the Universal Transmitter on the sun shield and fix it into place with the two screws (pos. 6 in Fig. 3-16). Close the lid and fix it with the two countersunk screws (pos.

  • Page 44: Mounting Under The Sd/K 170 Sun Shield

    Installation System 182 3.6.3 Mounting under the SD/K 170 sun shield The SD/K 170 sun shield can be mounted directly on a wall, on a mounting stand or on a railing. The MR/SD 170 mounting kit is also required for mounting on a mounting stand or railing. NOTE How to mount the sun shield at the installation location is described in the instructions for the sun shield or mounting kit.

  • Page 45: Panel Mounting

    Maximum thickness 3 mm 34.5 Fig. 3-19 Mounting aperture in the switch panel (dimensions in mm) NOTE The space required on the panel for DIQ/S 182 is given in the dimension drawings in section 9.5. ba75499e09 12/2014 3 - 25...
  • Page 46 Installation System 182 Mounting the Universal Transmitter in the panel Fig. 3-20 Mounting the Universal Transmitter in the panel Insert the Universal Transmitter in the panel aperture from the front. Slightly unscrew the screws (pos. 2 and 3) of the two angle brackets (pos.

  • Page 47: Top Hat Rail Mounting

    System 182 Installation 3.6.5 Top hat rail mounting  THS/IQ kit for top hat rail mounting (see chapter 10 A Materials required CCESSORIES AND OPTIONS  Phillips screwdriver. Tools Mounting the Universal Transmitter on a top hat rail Fig. 3-21 Mounting the Universal Transmitter on a top hat rail Screw the clamping assembly (pos.

  • Page 48: Using Diq Modules (Accessories)

    ENSOR sensor connection cable, e.g. to connect a sensor that is located far- ther away to the Universal Transmitter  To connect a second sensor to the DIQ/S 182 Universal Transmit- ter. Fig. 3-22 DIQ/JB open. The DIQ/JB module has seven potential free terminals. To extend or...

  • Page 49: Installation Of The Diq Modules

    3.7.3 Installation of the DIQ modules The DIQ module enclosure is designed like a commercial connection socket and can be mounted directly on a wall. For mounting on a WTW mounting stand, WTW provides the MS/DIQ mounting set. It contains a pipe clip for the mounting stand and provides enough space for two DIQ modules.

  • Page 50: Electrical Connections: General Instructions

    Cable glands All electric cables are fed from below via prepared openings in the enclosure of the DIQ/S 182 and the MIQ modules. Cable glands with different clamping ranges are included with the DIQ/S 182 to provide sealing between the cable and enclosure as well as for strain relief.
  • Page 51 Otherwise, there is a danger that areas safe to contact could come into contact with dangerous voltages. This could result in life threatening electric shock when working with the DIQ/S 182. Always cut off any wires that are not in use as closely as possible to the cable gland.

  • Page 52: Connecting The Voltage Supply

    System 182. The interrupt facility must – be installed in the vicinity of the DIQ/S 182 Universal Transmitter, easily accessible by the user, and – be labeled as the interrupt facility for the DIQ/S 182 Universal Transmitter.
  • Page 53 System 182 Installation Strip the cable insulation for approx. 45 mm. Bare the wires of phases L and N and fit them with wire end sleeves. If present, cut off the ground wire at the end of the cable sheath. Fig.
  • Page 54 Installation System 182 Connecting the power Open the enclosure of the Universal Transmitter. line Fig. 3-26 Inserting the supply line. Screw a cable gland (pos. 1 in Fig. 3-26) with sealing ring (pos. 2) into the enclosure below the power supply connection. Loosen the coupling ring (pos.
  • Page 55 System 182 Installation Terminal designation: 100... 240V AC NETZ/MAINS Fig. 3-27 Line power connection. NOTE The complete assignment of the terminal strip is shown in section 3.13. Connect phases L and N to the terminal strip. Make sure that the cable assignment agrees with the specification on the terminal label under the terminal strip.

  • Page 56: Diq/S 182/24V (24 V Version)

    System 182. The interrupt facility must – be installed in the vicinity of the DIQ/S 182 Universal Transmitter, easily accessible by the user, and – be labeled as the interrupt facility for the DIQ/S 182 Universal Transmitter.
  • Page 57 System 182 Installation Fig. 3-28 Prepared 24 V AC/DC line. Connecting the 24 V AC/ Open the enclosure of the Universal Transmitter. DC line Fig. 3-29 Inserting the 24V AC/DC line Screw a cable gland (pos. 1 in Fig. 3-29) with sealing ring (pos. 2) into the enclosure below the 24 V AC/DC connection.
  • Page 58 Installation System 182 Terminal designation: 24V AC DC EINGANG INPUT POWER Fig. 3-30 24 V AC/DC connection. NOTE The complete assignment of the terminal strip is shown in section 3.13. Connect wires 1 and 2 to the terminal strip. Make sure that the cable assignment agrees with the specification on the terminal label under the terminal strip.

  • Page 59: Connections To The Relay And Current Outputs

    System 182 Installation 3.10 Connections to the relay and current outputs 3.10.1 General installation instructions WARNING If external electrical circuits that are subject to the danger of physical contact are incorrectly connected to the relay contacts, there may be a danger of life threatening electric shock. Electrical circuits are regarded to be subject to the danger of physical contact when there are voltages higher than the Safety Extra Low Voltage (SELV).
  • Page 60 Installation System 182 Connecting lines to the Open the enclosure of the Universal Transmitter. terminal strip Fig. 3-31 Inserting lines NOTE The complete assignment of the terminal strip is shown in section 3.13. Screw a cable gland (pos. 1 in Fig. 3-31) with the sealing ring (pos.

  • Page 61: Usage Of The Auxiliary Voltage

    NOTE The auxiliary voltage must not be used for other purposes. Connection scheme for one sensor with compressed air cleaning Terminal strip HILFS- SPANNUNG DIQ/S 182 AUXILIARY VOLTAGE Valve control line Terminal strip DIQ/CHV VERTEILER...
  • Page 62 Installation System 182 Separating plate Relais contact Auxiliary voltage output Bridge Valve control line NOTE Installation examples with one and two sensors with compressed air cleaning can be found in section 3.12. 3 - 42 ba75499e09 12/2014...

  • Page 63: Commissioning

    System 182 Installation 3.11 Commissioning Start checklist and Before starting the system, carry out the system check using the follow- system start ing checklist. Always carry out the check  before the initial commissioning  before any further commissioning if the system has been previously extended or modified.

  • Page 64: Installation Examples

    Installation System 182 3.12 Installation examples 3.12.1 Connecting two sensors without compressed air cleaning Maximum total cable length SNCIQ(/UG) plus SACIQ = 250 m DIQ/S 182(/24V) DIQ/S 182(/24V) SNCIQ(/UG) SNCIQ(/UG) DIQ/JB SACIQ SACIQ SACIQ SACIQ Sensor 2 Sensor 1 Sensor 2...
  • Page 65 System 182 Installation Shield / Filler stranded wire Connection scheme of the DIQ/JB SNCIQ(/UG) Terminal strip DIQ/JB green green green SACIQ SACIQ black black Sensor 2 Sensor 1 ba75499e09 12/2014 3 - 45...

  • Page 66: Connecting Two Sensors With Compressed Air Cleaning

    Installation System 182 3.12.2 Connecting two sensors with compressed air cleaning Maximum total cable length DIQ/S 182(/24V) SNCIQ(/UG) plus SACIQ = 250 m SNCIQ(/UG) Valve control line 1 Valve control line 2 DIQ/CHV 2 DIQ/JB DIQ/CHV 1 SACIQ SACIQ Sensor 2...
  • Page 67 System 182 Installation Variant: Terminal strip HILFS- HILFS- SPANNUNG SPANNUNG DIQ/S 182 AUXILIARY AUXILIARY VOLTAGE VOLTAGE X11 X10 X11 X10 Valve control line 1 Terminal strip DIQ/CHV 1 VERTEILER VENTIL DISTRUBUTION VALVE Valve control line 2 Terminal strip DIQ/CHV 2...

  • Page 68: Connection Of A Sensor That Is Located At A Distance

    Installation System 182 3.12.3 Connection of a sensor that is located at a distance (without compressed air cleaning) Maximum total cable length DIQ/S 182(/24V) SNCIQ(/UG) plus SACIQ = 250 m SNCIQ(/UG) DIQ/S 182 DIQ/JB SNCIQ(/UG) SACIQ SACIQ Sensor Shield / Filler stranded wire...

  • Page 69: Figures Of The Terminal Strips

    System 182 Installation 3.13 Figures of the terminal strips DIQ/S 182 £ £ £ 240V AC 240V AC 240V AC 0/4...20mA 0/4...20mA £ £ £ 2A AC 2A AC 2A AC HILFS- SPANNUNG AUXILIARY 100... VOLTAGE 240V AC + REC -...
  • Page 70 Installation System 182 3 - 50 ba75499e09 12/2014...

  • Page 71: Operation

    Operation Operating elements Display Toggle switch Key pad Fig. 4-1 Operating elements of the DIQ/S 182 Functions Function Switches directly to the measured value display from all operating situations Starts calibration of the sensor selected in the measured value display...

  • Page 72: Measured Value And Status Display

    Operation System 182 Measured value and status display With the key you switch to the last selected measured value and status display from any operating situation. Entries that are not com- pleted are ignored while doing so. By pressing once again you cyclically switch between further dis- play options.
  • Page 73 System 182 Operation  Select the PROPERTIES menu with . With this menu you can put sensors in the maintenance condition and prompt important data (calibration data, error messages, operating states, software ver- sions, etc.).  Open the SETTINGS menu with Special The following displays inform you of special states of sensors sensor conditions...

  • Page 74: Working With The Settings Menu

    Operation System 182 Working with the SETTINGS menu NOTE All settings in the SETTINGS menu can be protected by a password against unauthorized changing. For more detailed information on password protection, see section 4.6. 4.3.1 Selection menus Pressing switches from the measured value display to the SET- TINGS menu (main menu).

  • Page 75: Setting Tables

    System 182 Operation 4.3.2 Setting tables In the setting tables, you make the actual settings. Two lines together represent each setting. The name of the setting is in the upper line on the left side of the display. The corresponding value is in the line below on the right side.

  • Page 76: Entry Mode

    Operation System 182 4.3.3 Entry mode In the entry mode, you can change individual values or enter a charac- ter string. Depending on the value type, change a value as follows  Fixed values of a selection list (e.g. sensor measuring ranges): This is the most frequent form of an entry.
  • Page 77 System 182 Operation  Numerals: Entering numerals is made in the same way as entering characters. The following numerals can be entered: 0..9-. Entering" -" or "." is only allowed where it makes sense, e.g. "-" at the first position only. Save and quit On principle, all settings done in the entry mode are only taken over after you selected the Save and quit item in the relevant setting table...

  • Page 78: Properties Menu

    Operation System 182 PROPERTIES menu 4.4.1 Overview Pressing switches from the measured value display to the PROP- ERTIES menu. In the PROPERTIES menu, you can prompt calibration data and vari- ous information on system components. Moreover, you can switch on and off the maintenance condition of a sensor.

  • Page 79: Maintenance Condition

    System 182 Operation 4.4.2 Maintenance condition When an IQ sensor is calibrated, cleaned, serviced or repaired, the maintenance condition for the relevant IQ sensor should always be switched on. In the maintenance condition  apart from the measured value display, the system does not react to the current measured value or the condition of the selected IQ sensor ...
  • Page 80 Operation System 182 Recommended Switch on the maintenance condition for the IQ sensor. The proceeding for cleaning, measured value display flashes. maintenance and repair Pull the sensor out of the sample. Carry out the cleaning, maintenance or repair (removal and replacement) of the sensor.

  • Page 81: Sensor Status Sxx

    System 182 Operation 4.4.3 Sensor status Sxx In the SENSOR STATUS Sxx menu you can prompt the following infor- mation on a sensor:  Type and series number  Software status  Error and info messages ("log book")  Data of the last calibration (only for sensors that can be calibrated) Fig.
  • Page 82 Operation System 182 Calibration data You can view the data of the last calibration under the Cal menu item. Sensors that have not yet been calibrated do not have this menu item. The symbol in the Cal line quotes the validity state: = valid = invalid The content and form of the calibration data depend on the sensor type.
  • Page 83 System 182 Operation Structure of the Type number message code Type Category Fig. 4-10 Message code Pos. Information Explanation  Info message (I) Category  Error message (E)  Calibration (C) Type  Installation and commissioning (I)  Instructions for service and repair (S) ...
  • Page 84 Operation System 182 Select the Log... menu item and press The log book is displayed. Highlight the message to be acknowledged and press . The detailed message text is displayed. Scroll through the text with the toggle switch Press . Thus you acknowledge the message (). Press once again.

  • Page 85: Calibration Of Sensors

    System 182 Operation Calibration of sensors NOTE Sensors can be protected by a password against unauthorized calibration. For more detailed information on password protection, see section 4.6. General proceeding Switch to the measured value display with Select the sensor to be calibrated with (in the single display, the sensor being displayed is always selected at the same time).
  • Page 86 Operation System 182 Confirm the calibration data with . Calibration is completed with this. The following display message describes the further steps to put the sensor into operation again. Putting the sensor into Confirm with . The display returns to the measured value operation after display (the measured value flashes as the sensor is still in the calibrating...

  • Page 87: Passwords

    System 182 Operation Passwords You can assign and activate two passwords for the System 182.  Settings password protects all settings in the SETTINGS menu. If the password is active, all settings can be viewed but not changed. The password query appears on leaving a setting table with the Save and quit command.
  • Page 88 Operation System 182 4 - 18 ba75499e09 12/2014...

  • Page 89: The Settings Menu

    System 182 The SETTINGS menu The SETTINGS menu Overview of the SETTINGS menu Pressing switches from the measured value display to the SET- TINGS menu (main menu). To view these menu items, scroll down with Fig. 5-1 Submenus in the SETTINGS menu The individual submenus are described in the following paragraphs.

  • Page 90: Sensor S01/S02

    English. To activate the selected system language for this component, a software update of the component is required. Contact WTW. Sensor S01/S02 In this menu, you can assign a name of your choice to a sensor and adjust the sensor so it optimally meets the requirements of your application (measured parameter, measuring range, etc.).

  • Page 91: System

    System 182 The SETTINGS menu ignored. Inactive sensor datasets An inactive dataset for an IQ sensor arises if the Universal Transmitter receives no signals from an already registered IQ sensor. The Error display appears on the measured value display instead of a measured value.
  • Page 92 The SETTINGS menu System 182  Pressure/Altitude This setting is important if you want to carry out D. O. measurements with the System 182. (adjustable range: 500 ... 1100 mbar or 0 ... 5955 m altitude).  Settings Here you can configure the password for the settings. For details on the passwords refer to section 4.6.

  • Page 93: Outputs

    System 182 Outputs Outputs Outputs of the DIQ/S 182 The DIQ/S 182 Universal Transmitter has three relays outputs and two current outputs.  System monitoring Functions for relay outputs  Sensor monitoring  Limit indicator  Frequency controller  Pulse-width output ...

  • Page 94: Linking And Adjusting: General Proceedings

    Outputs System 182 Linking and adjusting: general proceedings 6.2.1 Linking outputs Linking options You have the following options of linking outputs:  Sensor S01 The output is linked with sensor 01  Sensor S01 The output is linked with sensor 02 ...

  • Page 95: Deleting A Link With An Output

    System 182 Outputs 6.2.2 Deleting a link with an output If you no longer need a link you can erase the link. Proceeding: erasing a Open the SETTINGS menu with link Using , select and confirm the Relay output Rx menu item (corresponding to relay 1, 2 or 3) or mA output Cy (corresponding to current output 1 or 2).

  • Page 96: Setting Outputs

    Outputs System 182 6.2.3 Setting outputs Proceeding: setting an Open the SETTINGS menu with output Using , select and confirm the Relay output Rx menu item (corresponding to relay 1, 2 or 3) or mA output Cy (corresponding to current output 1 or 2). Confirm the selection Set output with The setting table of the output is displayed.

  • Page 97: Basic Information On Relay Functions

    System 182 Outputs Basic information on relay functions In this chapter, you will find general basic information concerning the following relay functions:  Monitoring (see section 6.3.1)  Limit indicator (see section 6.3.2)  Proportional output (see section 6.3.3) 6.3.1 Monitoring When using a relay for monitoring, a relay action (Open, Close) occurs when certain states occur.
  • Page 98 Outputs System 182 Monitoring limiting Measured values using one or two value relays Relay 1 Hysteresis UL Hysteresis LL Relay 2 Time Fig. 6-1 Switching points for relays with the function of a limit indicator Upper limit value (relay 1) exceeded Selected switching delay t1 for relay 1 expired Relay 1 switches Hysteresis for upper limiting value (relay 1) undercut...

  • Page 99: Proportional Output

    System 182 Outputs 6.3.3 Proportional output In the case of proportional output, a relay switches cyclically on and off in a defined measured value range (proportional range). At the same time, the relay switches with a:  duration of operation that corresponds to the measured value (pulse-width output, see page 6-9) or ...
  • Page 100 Outputs System 182 Switching frequency f or Output with one relay Pulse width Proportional band Measured value Fig. 6-2 Output with one relay Output with two relays Switching frequency f or Pulse width Proportional bands Relay 1 and 2 Measured value Relay 1 Relay 2 Fig.
  • Page 101 System 182 Outputs Pulse width output The output via the pulse width is used, e.g. for controlling valves. Pulse-width regulation changes the duration of operation (t ) of the output signal. Depending on the position of the measured value in the proportional range, the relay is operated for a longer or shorter period.
  • Page 102 Outputs System 182 Frequency output Switching frequency output is used, e.g. for controlling dosing pumps. In contrast to the pulse-width output, not the pulse width is modulated with frequency output but the switching frequency of the output signal. Depending on the position of the measured value in the proportional range, the relay is switched more often or less often.
  • Page 103 System 182 Outputs Characteristic curves Through the selection of the Start value and End value, the proportional output can be operated with a positive or negative characteristic curve.  Positive characteristic curve: Select the End value to be greater than the Start value. The turn-on duration or frequency increases with an increasing mea- sured value (see page 6-12).
  • Page 104 Outputs System 182 Positive characteristic The proportional output range begins above the initial value. If the pro- curve portional range is undercut or exceeded, the selected behavior comes into force. Pulse width v [%] Cycle duration T Of f Proportional band Time Measured value 2...
  • Page 105 System 182 Outputs Negative characteristic The proportional output range begins below the initial value. If the pro- curve portional range is undercut or exceeded, the selected behavior comes into force. Fig. 6-10 Pulse width output Switching frequency f [1/min] Maximum switching frequency 50 % of maximum switching frequency...

  • Page 106: Setting Table For Relays

    Outputs System 182 Setting table for relays 6.4.1 Functions and settings To set a relay its function has to be selected first. Then the relevant setting table is displayed: Relay function and Function Setting table relevant setting tables No function The relay output is not used.

  • Page 107: System Monitoring

    Settings Selection Explanations Power failure The Power failure On function monitors the supply voltage in DIQ/S 182. If the voltage falls below a critical value, the relay switches. Collective error The Collective error On function simultaneously monitors the proper function of all sensors.

  • Page 108: Sensor Monitoring

    Outputs System 182 6.4.3 Sensor monitoring Function The Sensor monitoring function enables to monitor sensor errors and the maintenance condition. In order to set up the Sensor monitoring function for a relay output, the relay output must be linked with a sensor (see section 6.2.1). Settings Setting Selection...

  • Page 109: Limit Indicator

    System 182 Outputs 6.4.4 Limit indicator Function The characteristic of the limit indicator is laid down in the Limit value UL, Limit value LL, Hysteresis UL and Hysteresis LL settings. The fundamentals of the function are described in the introductory chapter (see section 6.3.2).

  • Page 110: Frequency Controller

    Outputs System 182 6.4.5 Frequency controller Function The characteristic of the frequency output is laid down in the Start value, End value, Frequency (f) min. and Frequency (f) max. settings. The fundamentals of the function are described in the introductory chapter (see section 6.3.3).

  • Page 111: Pulse-Width Output

    System 182 Outputs 6.4.6 Pulse-width output Function The characteristic of the pulse width output is laid down in the Start value, End value, Pulse width (v) min. and Pulse width (v) max. set- tings. The fundamentals of the function are described in the introduc- tory chapter (see section 6.3.3).

  • Page 112: Sensor Controlled

    Outputs System 182 6.4.7 Sensor controlled With the Sensor controlled function, the relay is controlled by a linked sensor.  Controller version from 2.80 Requirements  Sensor that transmits signals to trigger a cleaning cycle, e.g. UV/VIS sensor Settings Setting Selection/Values Explanation Pulse length...
  • Page 113 System 182 Outputs 6.4.8 Cleaning Function The Cleaning function enables the time controlled automatic start of the sensor cleaning function with the aid of a relay of the Universal Transmitter. The relay controls the DIQ/CHV valve module and switches on or off the compressed air for the CH sensor cleaning head. In order to set up the Cleaning function for a relay output, the relay output must be linked with a sensor (see section 6.2.1).

  • Page 114: Cleaning

    Outputs System 182 Settings Setting Selection/Values Explanation Reference time (h) 0 ... 23 h Time at which a cleaning cycle is Reference time 0 ... 60 min started. Further (min) cleaning cycles will be performed at the times specified by the cleaning interval.
  • Page 115 System 182 Outputs Example Setting Result Reference time (h): Reference time: 12:00 hours Reference time This specifies the following (min): Hours (h) start times: Interval unit: 04:00, 12:00 and 20:00 hours Cleaning interval: t1a t1b relay condition closed open 00:00 04:00 12:00 20:00...

  • Page 116: Manual Control

    Outputs System 182 Canceling the cleaning A running cleaning cycle is canceled:  Automatically – If the sensor switches to the inactive condition during the cleaning cycle  Manually – By pressing – By switching on the maintenance condition Each time the cleaning cycle is canceled, the relay opens immediately. If the cleaning cycle is canceled automatically, the outputs linked to the sensor are released immediately.

  • Page 117: Setting Tables For Current Outputs

    System 182 Outputs Setting tables for current outputs 6.5.1 Functions and settings To set a current output its function has to be selected first. Then the relevant setting table is displayed: Function of current Function Setting table outputs and relevant No function The current output is not used.
  • Page 118 Outputs System 182 I -> OFL/UFL Error Current values outside the range between Start value and End value are considerd as errors. The current output reacts as specified under Behavior at error (see below). Limitation The current at the output is limited to the Start value or End value.
  • Page 119 System 182 Outputs 6.5.3 PID controller Function With the PID controller function, you can use an output as a controller output. The controller can be configured as a Proportional controller with a switchable Integral and Derivative controller part (PID controller). The control mode of the PID controller is described by the following equation: ...

  • Page 120: Pid Controller

    Outputs System 182 By activating or deactivating the Integral (ti) and Derivative (td) controller part, the following controller types can be configured: Controller type td [s] ti [s] P controller PI controller 1 to 9999 PD controller 1 to 9999 PID controller 1 to 9999 1 to 9999...
  • Page 121 System 182 Outputs  Feedback control of the D. O. concentration Application example  Sensor: TriOxmatic 700 IQ (measuring range: 0 ... 60 mg/l) Control parameters Value Nominal value 4 mg/l 10 % of the measuring range or 6 mg/l Imin 8 mA Imax...
  • Page 122 Outputs System 182 Within the proportional band, a concentration increase by 1 mg/l causes a decrease of the current output by 1 mA. If, for example, the measured concentration is 5 mg/l, 11 mA are output: ⋅ − mg/l mg/l Controller mg/l ⋅...
  • Page 123 System 182 Outputs Setting Selection/Values Explanation 0 ... 20 mA Current value on the output if the measured value equals the Nominal value 0 ... 9999 s Hold-back time: Integral part of the controller (0 = not effective) 0 ... 9999 s Reset time: Derivative part of the controller...

  • Page 124: Fixed Current Value

    Outputs System 182 6.5.4 Fixed current value Function With the Fixed current value function, you can test the operativeness of the instruments connected to the outputs: output different current val- ues to the output and, while doing so, check the behavior of the con- nected instrument.

  • Page 125: Behavior Of Linked Outputs

    System 182 Outputs Behavior of linked outputs 6.6.1 Behavior in case of error For linked relay outputs or current outputs, you can determine the behavior of the outputs in case of errors. Depending on the use of the output, the behavior in case of errors is set in the following menus: Output menu Limit indicator...
  • Page 126 Outputs System 182 6 - 34 ba75499e09 12/2014...

  • Page 127: Maintenance And Cleaning

    Component Maintenance IQ sensors Depending on the type of sensor (see the component operating manual of the sensor) DIQ/S 182, No maintenance required DIQ modules, MIQ modules Cleaning DIQ/S 182, Clean components mounted in the open of gross contamination as DIQ modules, necessary.
  • Page 128 Maintenance and cleaning System 182 7 - 2 ba75499e09 12/2014...

  • Page 129: What To Do If

    What to do if ... Information on errors Log book The DIQ/S 182 system performs a comprehensive cyclical self test during operation. While doing so, the system identifies all states that deviate from normal operation and enters corresponding messages in the log book (information or error message).

  • Page 130: Replacing System Components

     DIQ/CHV  Cables (SNCIQ, SACIQ). WARNING If the DIQ/S 182 Universal Transmitter is opened and the MIQ/PS power supply module is operating, there is a danger to life due to possible hazard of electric shock from line voltage. Before...
  • Page 131 System 182 What to do if ... Note The current calibration data of the IQ sensor is always stored in the sensor. If an IQ sensor is connected that is ready for operation and calibrated, this can be used immediately without the need for recalibration.
  • Page 132 What to do if ... System 182 Note It is always possible to replace components and assign a substitute if the software state of the substitute component is as high or higher as the software version of the original component. Otherwise the component may not be recognized by the Universal Transmitter.

  • Page 133: Technical Data

    Technical data DIQ/S 182 Dimensions Front view: Side view: 144.0 43.0 52.2 11.0 Rear view: 16.5 115.0 70.0 Stack mounting: 137.0 Fig. 9-1 Dimension drawing of the DIQ/S 182 (dimensions in mm) Test marks cETLus, CE ba75499e09 12/2014 9 - 1...
  • Page 134 Weight Approx. 0.7 kg Type of protection – IP 66 – corresponds to NEMA 4X The DIQ/S 182 Universal Transmitter is not suitable for Conduit Connection Ambient conditions Temperature Operation - 20 °C ... + 55 °C (- 4 ... 131 °F) Storage - 25 °C ...
  • Page 135 System 182 Technical data Electrical data Supply Nominal voltage:24 V AC/DC ± 10 % DIQ/S 182/24V protective low voltage (24 V AD/DC version) SELV (Safety Extra Low Voltage) AC frequency:50/60 Hz according to DIN IEC 60038 Connection:2 pin Line cross-section of connections: Europe:1.5 ...
  • Page 136 Relay functions Programmable as: – Opener or closer – Limit monitor – Monitoring of the warning and error signals of the DIQ/S 182 – Proportional frequency output – Proportional pulse width output Current outputs Output Galvanically separated from the sensors...
  • Page 137 System lightning Extended protective characteristics as protection opposed to EN 61326 FCC, class A NOTE Any combination of the DIQ/S 182 with IQ S products in a ENSOR user-specific system achieves the listed EMC characteristics. Instrument safety Applicable norms – EN 61010-1 –...

  • Page 138: Miq Modules

    Technical data System 182 MIQ modules NOTE Technical data on special MIQ modules are given in the respective operating manuals. Dimensions 144,0 52,2 Front view: Side view: 115,0 11,0 70,0 16,5 Rear view Stack mounting: Fig. 9-2 Dimension drawing of MIQ module (dimensions in mm) 9 - 6 ba75499e09 12/2014...
  • Page 139 System 182 Technical data Mechanical Maximum number of 2 plus Universal Transmitter DIQ/S 182 construction MIQ modules in a module stack Enclosure material Polycarbonate with 20 % glass fiber Weight Approx. 0.5 kg (type-dependent) Type of protection – IP 66 –...

  • Page 140: Diq/Jb

    Technical data System 182 DIQ/JB Dimensions DIQ/JB Fig. 9-3 Dimension drawing of DIQ/JB (dimensions in mm) Mechanical Enclosure material Polystyrene construction Weight Approx. 0.2 kg Type of protection IP 66 Electrical connections (7 passive, potential free terminals for line extension or branching) Terminals Terminal type Screw-type terminal strip...

  • Page 141: Diq/Chv

    System 182 Technical data DIQ/CHV Dimensions DIQ/CHV Fig. 9-4 Dimension drawing of DIQ/CHV (dimensions in mm) Mechanical Enclosure material Polystyrene construction Weight Approx. 0.3 kg Type of protection IP 66  1 x valve switching contact Electrical connections  4 x potential-free terminals to connect interface lines Terminal strip inside the enclosure: (HILFLSKONTAKTE) VENTIL...
  • Page 142 Technical data System 182 Valve circuits Switching voltage Approx. 22 V Max. switching current Approx. 40 mA NOTE The valve may only be operated with the auxiliary voltage of the DIQ/ S 182 Universal Transmitter. Compressed air Required air quality Dry, free of dust and oil Operating pressure Max.

  • Page 143: Space Required By Mounted Components

    System 182 Technical data Space required by mounted components Wall mounting and top hat rail mounting Wall mounting top hat rail mounting Space required for screwdriver Fig. 9-5 Space required for wall and top hat rail mounting: (dimensions in mm) Panel mounting Panel mounting Space required...
  • Page 144 Technical data System 182 9 - 12 ba75499e09 12/2014...

  • Page 145: Accessories And Options

    Set for mounting of the DIQ/S 182 or an THS/IQ 480 050 MIQ module on a 35 mm top hat rail according to EN 50022 NOTE Other accessories for the System 182 are given in the WTW catalog or on the Internet. ba75499e09 12/2014 10 - 1...
  • Page 146 Accessories and options System 182 10 - 2 ba75499e09 12/2014...

  • Page 147: Index

    Log book ........... 8-1 open ..........4-13 Structure ........... 4-12 Date/time ........... 5-3 Delivery condition ........5-4 Dimensions DIQ/S 182 ........... 9-1 Maintenance activities ......7-1 DIQCHV ..........9-9 Maintenance condition DIQJB ..........9-8 automatic activation ......4-10 MIQ modules ........9-6 during calibration ......
  • Page 148 Index System 182 Distributed mounting ......3-14 Target group ..........2-2 Terminal strips (figures) ......3-49 Time ............5-3 Operating elements ........4-1 Toggle switch ..........4-1 Types of installation .........3-20 Password Calibration .........4-17 Settings ..........4-17 PID controller (mA output) .......6-27 Power failure ..........1-3 Pulse width output (relay) ......6-19 Relay Behavior in case of error ....6-33 Behavior in non-operative condition ..6-33...

  • Page 149: Appendix (Store Separately If Required)

    System 182 Appendix (store separately if required) Appendix (store separately if required) 12.1 Forgotten the password? Proceeding: Open the SETTINGS menu with prompting the password Depending on the password to be prompted, use to select and confirm the menu item, Settings Calibrate .
  • Page 150 Appendix (store separately if required) System 182 12 - 2 ba75499e09 12/2014...
  • Page 152 Anwendungskompetenz, unterstützt durch eine Tradition der Innovation, bekannt sind. Weitere Informationen darüber, wie Xylem Ihnen helfen kann, finden Sie auf xyleminc.com Wissenschaftlich-Technische Werkstätten GmbH Dr.-Karl-Slevogt-Straße 1 D-82362 Weilheim Germany Tel: +49 881 183-0 Fax: +49 881 183-420 E-Mail: info@wtw.com Internet: www.wtw.com...
  • Page 153 OPERATING MANUAL ba64107e12 09/2014 P o w IQ S ENSOR MIQ/CR3; DIQ/CR3 COMBI OUTPUT MODULE IQ S ENSOR...
  • Page 154 IQ S MIQ/CR3; DIQ/CR3 ENSOR © Copyright Weilheim 2014, WTW GmbH Reprinting - even as excerpts - is only allowed with the explicit written authorization of WTW GmbH, Weilheim.. Printed in Germany. ba64107e12 09/2014...
  • Page 155 MIQ/CR3; DIQ/CR3 List of contents MIQ/CR3; DIQ/CR3 - List of contents Overview ........1-1 How to use this component operating manual .
  • Page 156 List of contents MIQ/CR3; DIQ/CR3 4.6.3 Fixed current value .....4-37 Checking the status of the outputs ....4-38 Behavior of linked outputs .

  • Page 157: Overview

    MIQ/CR3; DIQ/CR3 Overview Overview How to use this component operating manual Structure of the IQ Sensor Net Operating Manual IQ S ENSOR operating manual System Operating Manual (Ring Binder) IQ Sensor MIQ Module MIQ Terminal Operating Operating Operating Manual Manual Manual Component Operating Manuals Fig.

  • Page 158: Features Of The Combi Output Module

    Overview MIQ/CR3; DIQ/CR3 Features of the combi output module General characteristics The combi output module has three current outputs and three relay outputs. You can link current outputs and relay outputs to sensors. The linked current outputs and relay outputs can, for example, be used to monitor sensors or to output measurement data.

  • Page 159: Safety Instructions

    MIQ/CR3; DIQ/CR3 Safety instructions Safety instructions This operating manual contains special instructions that must be followed during the installation of the combi output module. Thus, it is essential for the operator to read this component operating manual before carrying out any work with the system. In addition to this manual, the S chapter of the IQ S system operating manual...

  • Page 160: Authorized Use

    Safety instructions MIQ/CR3; DIQ/CR3 Authorized use The authorized use of the combi output module consists of providing relay and current outputs in the IQ S ENSOR Please observe the technical specifications according to chapter 6 . Only operation according to the instructions in this ECHNICAL DATA operating manual is authorized.

  • Page 161: Installation

    MIQ/CR3; DIQ/CR3 Installation Installation Scope of delivery The scope of delivery of the combi output module is listed in the chapter of the system operating manual. NSTALLATION Safety requirements on the electrical installation Electrical equipment (e.g. motors, contactors, cables, lines, relays) must meet the following requirements: ...
  • Page 162 Software requirements for use of the functions, PID controller, Manual control and Fixed current value:  MIQ/CR3: from version 2.30 up Note It is possible to update the software if your components have older software versions. Please contact WTW. 3 - 2 ba64107e12 09/2014...

  • Page 163: Electrical Connections: General Instructions

    MIQ/CR3; DIQ/CR3 Installation Electrical connections: General instructions Cable glands All electric cables are fed from below via prepared openings in the enclosure of the module. Cable glands with different clamping ranges are included with the module to provide sealing between the cable and enclosure as well as for strain relief.

  • Page 164: Connections To The Relay And Current Outputs

    Installation MIQ/CR3; DIQ/CR3 General installation Observe the following points when attaching connecting wires to the instructions terminal strip  Shorten all wires to be used to the length required for the installation  Always fit all the ends of the wires with wire end sleeves before connecting them to the terminal strip ...
  • Page 165 MIQ/CR3; DIQ/CR3 Installation switched with the aid of several relays (example three-phase current driven pumps). Always switch multiphase consumers via a protective relay.  After the output module has been installed, it may only be opened if all external voltages have been switched off beforehand.
  • Page 166 Installation MIQ/CR3; DIQ/CR3 Screw the cable gland (pos. 1 in Fig. 3-1) with the sealing ring (pos. 2) into the module housing. Loosen the coupling ring (pos. 3 in Fig. 3-1). Feed the line through the cable gland in the module housing. Connect the wires to the terminal strip.

  • Page 167: Settings

    MIQ/CR3; DIQ/CR3 Settings Settings The combi output module has three relays outputs and three current outputs.  Relay outputs operate as openers or closers.  Current outputs provide a current that depends on the measured value. On the terminal or Universal Transmitter, you can ...

  • Page 168: Basic Information On Relay Functions

    Settings MIQ/CR3; DIQ/CR3 Basic information on relay functions In this chapter, you will find general basic information concerning the following relay functions:  Monitoring (see section 4.1.1)  Limit indicator (see section 4.1.2)  Proportional output (see section 4.1.3) 4.1.1 Monitoring When using a relay for monitoring, a relay action (Open, Close) occurs when certain states occur.

  • Page 169: Limit Indicator

    MIQ/CR3; DIQ/CR3 Settings 4.1.2 Limit indicator With a limit indicator, a relay switches when a specified limiting value is exceeded or undercut. Limit indicators can be used in the following way:  Monitoring a limiting value using a relay: when a limiting value (upper or lower limiting value) is exceeded or undercut, a relay switches.
  • Page 170 Settings MIQ/CR3; DIQ/CR3 Monitoring limiting Measured values using one or two value relays Relay 1 Hysteresis UL Hysteresis LL Relay 2 Time Fig. 4-1 Switching points for relays with the function of a limit indicator Upper limit value (relay 1) exceeded Selected switching delay t1 for relay 1 expired Relay 1 switches Hysteresis for upper limiting value (relay 1) undercut...

  • Page 171: Proportional Output

    MIQ/CR3; DIQ/CR3 Settings 4.1.3 Proportional output In the case of proportional output, a relay switches cyclically on and off in a defined measured value range (proportional range). At the same time, the relay switches with a:  duration of operation that corresponds to the measured value (pulse-width output, see page 4-7) or ...
  • Page 172 Settings MIQ/CR3; DIQ/CR3 Switching frequency f or Output with one relay Pulse width Proportional band Measured value Fig. 4-2 Output with one relay Output with two relays Switching frequency f or Pulse width Proportional bands Relay 1 and 2 Measured value Relay 1 Relay 2 Fig.
  • Page 173 MIQ/CR3; DIQ/CR3 Settings Pulse width output The output of the pulse width is used, e.g. for controlling valves. Pulse-width regulation changes the duration of operation (t ) of the output signal. Depending on the position of the measured value in the proportional range, the relay is operated for a longer or shorter time period.
  • Page 174 Settings MIQ/CR3; DIQ/CR3 Frequency output Switching frequency output is used, e.g. for controlling dosing pumps. In contrast to the pulse-width output, not the pulse width is modulated with frequency output but the switching frequency of the output signal. Depending on the position of the measured value in the proportional range, the relay is switched more often or less often.
  • Page 175 MIQ/CR3; DIQ/CR3 Settings Characteristic curves Through the selection of the Start value and End value, the proportional output can be operated with a positive or negative characteristic curve.  Positive characteristic curve: Select the End value to be greater than the Start value. The turn-on duration or frequency increases with an increasing measured value (see page 4-10).
  • Page 176 Settings MIQ/CR3; DIQ/CR3 Positive characteristic The proportional output range begins above the initial value. If the curve proportional range is undercut or exceeded, the selected behavior comes into force. Pulse width v [%] Cycle duration T Of f Proportional band Time Measured value 2 Fig.
  • Page 177 MIQ/CR3; DIQ/CR3 Settings Negative characteristic The proportional output range begins below the initial value. If the curve proportional range is undercut or exceeded, the selected behavior comes into force. Pulse width v [%] Cycle duration T Of f Proportional band Time Measured value 1 Fig.

  • Page 178: Entering / Editing The Name Of An Output

    Settings MIQ/CR3; DIQ/CR3 Entering / editing the name of an output For easier identification of the outputs, an individual name can be given to each output in the Edit list of outputs overview. This option is available with the 184 XT and 2020 XT systems only. Open the Settings menu with Using , select and confirm the menu item, System...

  • Page 179: Linking The Output With A Sensor

    The following steps describe operation with the 184 XT and 2020 XT systems. With the System 182 XT, the outputs of the DIQ/CR3 can be found directly under the Settings menu (see system operating manual of the DIQ/S 182 XT). Open the Settings menu with Using , select and confirm the menu item, System settings ->...

  • Page 180: Deleting A Link With An Output

    The following steps describe operation with the 184 XT and 2020 XT systems. With the System 182 XT, the outputs of the DIQ/CR3 can be found directly under the Settings menu (see system operating manual of the DIQ/S 182 XT). Open the Settings menu with Using , select and confirm the menu item, System settings ->...

  • Page 181: Setting The Relay Outputs

    With the System 182 XT, the outputs of the DIQ/CR3 can be found directly under the Settings menu (see system operating manual of the DIQ/S 182 XT). Call up the measured value display with Open the Settings menu with...

  • Page 182: Relay Action

    Settings MIQ/CR3; DIQ/CR3 Function Description No function The relay output is not used. System monitoring see section 4.5.2 Sensor monitoring see section 4.5.3 Limit indicator see section 4.5.4 Frequency controller see section 4.5.5 Pulse-width contr. see section 4.5.6 Cleaning see section 4.5.7 Sensor-controlled see section 4.5.8 Manual control...

  • Page 183: System Monitoring

    MIQ/CR3; DIQ/CR3 Settings 4.5.2 System monitoring Function The System monitoring enables to monitor system errors. In order to set up the System monitoring function for a relay output, the relay output must not be linked with a sensor (see section 4.3). It can be used to monitor the following system errors.

  • Page 184: Sensor Monitoring

    Settings MIQ/CR3; DIQ/CR3  The sensor is being calibrated  The sensor is in the maintenance condition  The sensor is being cleaned with the aid of a valve module in the system (compressed air operated cleaning system). 4.5.3 Sensor monitoring Function The Sensor monitoring function enables to monitor sensor errors and the maintenance condition.

  • Page 185: Limit Indicator

    MIQ/CR3; DIQ/CR3 Settings General Init can prompt a relay action for a short time, depending sensor errors on the starting behavior of the system ---- Invalid measured value, or defective sensor Error Communication with sensor interrupted Measuring range undercut or exceeded (overflow) 4.5.4 Limit indicator Function The characteristic of the limit indicator is laid down in the Limit value...
  • Page 186 Settings MIQ/CR3; DIQ/CR3 Setting Selection/Values Explanation Behavior at error Open The relay opens, Close closes, or remains Unchanged unchanged in case of system errors or sensor errors (see page 4-39). Action Open Relay action (see Close section 4.5.1) Switching delay 0 ...

  • Page 187: Frequency Controller

    MIQ/CR3; DIQ/CR3 Settings 4.5.5 Frequency controller Function The characteristic of the frequency output is laid down in the Start value, End value, Frequency (f) min. and Frequency (f) max. settings. The fundamentals of the function are described in the introductory chapter (see section 4.1.3).

  • Page 188: Pulse-Width Contr

    Settings MIQ/CR3; DIQ/CR3 4.5.6 Pulse-width contr. Function The characteristic of the pulse width output is laid down in the Start value, End value, Pulse width (v) min. and Pulse width (v) max. settings. The fundamentals of the function are described in the introductory chapter (see section 4.1.3).
  • Page 189 MIQ/CR3; DIQ/CR3 Settings 4.5.7 Cleaning Note When using the MIQ/CHV PLUS valve module, it is best to set the Cleaning function directly at the valve output (V) of the MIQ/CHV PLUS (see operating manual of the MIQ/CHV PLUS). The relay can then be used for other purposes.

  • Page 190: Cleaning

    Settings MIQ/CR3; DIQ/CR3 Settings Setting Selection/Values Explanation Reference time (h) 0 ... 23 h Time at which a cleaning cycle is Reference time 0 ... 60 min started. Further (min) cleaning cycles will be performed at the times specified by the cleaning interval.
  • Page 191 MIQ/CR3; DIQ/CR3 Settings Example Setting Result Reference time (h): Reference time: 12:00 hours Reference time This specifies the following (min): Hours (h) start times: Interval unit: 04:00, 12:00 and 20:00 hours Cleaning interval: t1a t1b relay condition closed open 00:00 04:00 12:00 20:00...
  • Page 192 Settings MIQ/CR3; DIQ/CR3 Canceling the cleaning A running cleaning cycle is canceled:  Automatically – If the sensor switches to the inactive condition during the cleaning cycle  Manually – By pressing – By switching on the maintenance condition Each time the cleaning cycle is canceled, the relay opens immediately. If the cleaning cycle is canceled automatically, the outputs linked to the sensor are released immediately.

  • Page 193: Sensor-Controlled

    MIQ/CR3; DIQ/CR3 Settings 4.5.8 Sensor-controlled With the Sensor-controlled function, the relay is controlled by a linked sensor.  For the 184 XT and 2020 XT systems, a controller with a software Requirements version from 2.80 up is required  Sensor that transmits signals to trigger a cleaning cycle, e.g. UV/VIS sensor Settings Setting...

  • Page 194: Manual Control

    Settings MIQ/CR3; DIQ/CR3 4.5.9 Manual control Function With the Manual control function, you can test the operativeness of an instrument that is connected to the relay. To do so, close or open the relay manually and, while doing so, check the behavior of the connected instrument.

  • Page 195: Setting Of Current Outputs

    With the System 182 XT, the outputs of the DIQ/CR3 can be found directly under the Settings menu (see system operating manual of the DIQ/S 182 XT). Call up the measured value display with Open the Settings menu with...

  • Page 196: Recorder

    Settings MIQ/CR3; DIQ/CR3 Function Settings No function The current output is not used. Recorder see section 4.6.1 PID controller see section 4.6.2 Fixed current value see section 4.6.3 Carry out the settings for the current output with Highlight and confirm Save and quit with The new settings are stored.
  • Page 197 MIQ/CR3; DIQ/CR3 Settings I -> OFL/UFL Error Current values outside the range between Start value and End value are considerd as errors. The current output reacts as specified under Behavior at error (see below). Limitation The current at the output is limited to the Start value or End value.

  • Page 198: Pid Controller

    Settings MIQ/CR3; DIQ/CR3 4.6.2 PID controller Function With the PID controller function, you can use an output as a controller output. The controller can be configured as a Proportional controller with a switchable Integral and Derivative controller part (PID controller). The control mode of the PID controller is described by the following equation: ...
  • Page 199 MIQ/CR3; DIQ/CR3 Settings By activating or deactivating the Integral (ti) and Derivative (td) controller part, the following controller types can be configured: Controller type td [s] ti [s] P controller PI controller 1 to 9999 PD controller 1 to 9999 PID controller 1 to 9999 1 to 9999...
  • Page 200 Settings MIQ/CR3; DIQ/CR3  Feedback control of the D. O. concentration Application example  Sensor: TriOxmatic 700 IQ (measuring range: 0 ... 60 mg/l) Control parameters Value Nominal value 4 mg/l 10 % of the measuring range or 6 mg/l Imin 8 mA Imax...
  • Page 201 MIQ/CR3; DIQ/CR3 Settings Within the proportional band, a concentration increase by 1 mg/l causes a decrease of the current output by 1 mA. If, for example, the measured concentration is 5 mg/l, 11 mA are output: ⋅ − mg/l mg/l Controller mg/l ⋅...
  • Page 202 Settings MIQ/CR3; DIQ/CR3 Setting Selection/Values Explanation 0 ... 20 mA Current value on the output if the measured value equals the Nominal value 0 ... 9999 s Hold-back time: Integral part of the controller (0 = not effective) 0 ... 9999 s Reset time: Derivative part of the controller...

  • Page 203: Fixed Current Value

    MIQ/CR3; DIQ/CR3 Settings 4.6.3 Fixed current value Function With the Fixed current value function, you can test the operativeness of the instruments connected to the outputs: output different current values to the output and, while doing so, check the behavior of the connected instrument.

  • Page 204: Checking The Status Of The Outputs

    With the System 182 XT, you can recall the states of the outputs via the measured value and status display (see system operating manual of the DIQ/S 182 XT). With the 184 XT and 2020 XT systems, the function, 394 - Status of...

  • Page 205: Behavior Of Linked Outputs

    MIQ/CR3; DIQ/CR3 Settings Behavior of linked outputs 4.8.1 Behavior in case of error For linked relay outputs or current outputs, you can determine the behavior of the outputs in case of errors. Depending on the use of the output, the behavior in case of errors is set in the following menus: Output menu...

  • Page 206: Behavior In Non-Operative Condition

    Settings MIQ/CR3; DIQ/CR3 4.8.2 Behavior in non-operative condition An output is non-operative when no function is activated for the output. An output becomes non-operative in case of  Power failure (As soon as the supply voltage is sufficient again, the non-operative condition of the outputs ends.

  • Page 207: Maintenance Condition Of Sensors

    MIQ/CR3; DIQ/CR3 Settings Maintenance condition of sensors The maintenance condition of sensors serves to calibrate, clean, service and repair (remove and replace) sensors. In the maintenance condition  the system does not react to the current measured value or the condition of the selected sensor ...

  • Page 208: Switching On The Maintenance Condition

    Settings MIQ/CR3; DIQ/CR3 4.9.1 Switching on the maintenance condition Call up the measured value display with Select the sensor you want to switch on the maintenance condition for with . The measured values of the sensor do not flash. Open the 300 - Display/Options menu with Using , highlight the menu item, Switch maintenance condition on/off or Maintenance of sensor S0x and confirm with...

  • Page 209: Maintenance And Cleaning

    MIQ/CR3; DIQ/CR3 Maintenance and cleaning Maintenance and cleaning Maintenance The combi output module does not require any special maintenance work. The general maintenance of IQ S components is ENSOR described in the IQ S system operating manual. ENSOR Cleaning The cleaning of IQ S components is described in the ENSOR IQ S...
  • Page 210 Maintenance and cleaning MIQ/CR3; DIQ/CR3 5 - 2 ba64107e12 09/2014...

  • Page 211: Technical Data

    MIQ/CR3; DIQ/CR3 Technical data Technical data Note General technical data on MIQ modules are given in the T ECHNICAL chapter of the IQ S system operating manual. DATA ENSOR Electrical data Nominal voltage Max. 24 VDC via the IQ S (for ENSOR details, see the T...
  • Page 212 Technical data MIQ/CR3; DIQ/CR3 Relays Output Physically separated from the IQ S ENSOR Max. switching voltage 250 VAC or 24 VDC Max. switching current 5 A (AC and DC) Installation Fuse rating on the operator side: Maximum requirements Relay functions –...

  • Page 213: Indexes

    MIQ/CR3; DIQ/CR3 Indexes Indexes Explanation of the messages In this chapter you will find a list with all the message codes and corresponding message texts that may occur in the log book of the IQ S system for the MIQ/CR3 output module. ENSOR Note Information about...
  • Page 214 Indexes MIQ/CR3; DIQ/CR3 7 - 2 ba64107e12 09/2014...
