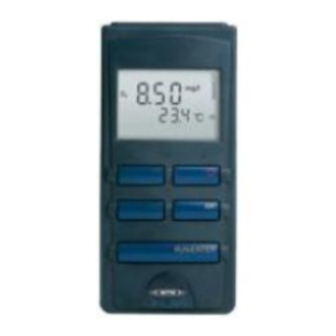

Conductivity measuring instrument. handheld meter
Hide thumbs Also See for Cond 315i:

Advertisement

Operating manual
Handheld meter
Cond 315i
Conductivity measuring instrument
ba52300e02
03/2004

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cond 315i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for wtw Cond 315i

  • Page 1 Operating manual Handheld meter Cond 315i Conductivity measuring instrument ba52300e02 03/2004...
  • Page 2 © Copyright Weilheim 2004, WTW GmbH Reproduction in whole - or even in part - is prohibited without the ex- press written permission of WTW GmbH, Weilheim. Printed in Germany.
  • Page 3: Table Of Contents

    Cond 315i List of contents Contents Overview ........5 SETs of equipment .
  • Page 4 List of contents Cond 315i...
  • Page 5: Overview

    Cond 315i Overview Overview The compact precision Cond 315i handheld meter enables you to carry out conductivity measurements rapidly and reliably. The Cond 315i handheld meter provides the maximum degree of op- erating comfort, reliability and measuring certainty for all applications.
  • Page 6: Sets Of Equipment

    SETs of equipment The measuring instrument is also available as part of individual SETs of equipment. You will find additional information on this and other accessories in the WTW catalog or via the Internet. Set (sample configuration): Measuring instrument, Cond 315i Stand –...
  • Page 7: Keypad

    Cond 315i Overview Keypad RUN/ENTER Key functions Select the measuring mode <M>: – Conductivity/Specific resistance – Salinity Switch measuring instrument on/off <ON/OFF> – Determine or set up the cell constant – Select temperature compensation <CAL> Activate/deactivate the AutoRead function <AR>...
  • Page 8: Display

    Overview Cond 315i Display Status display Sensor symbol mV/pH mg/l Meas. value display mbar M cm Time Baud Function and ° Day.Month No. ° Year Ident temperature display Tref25 Tref20 AutoCal DIN Auto Store ARng LoBat AutoCal TEC Jack field...
  • Page 9: Safety

    Cond 315i Safety Safety This operating manual contains basic instructions that you must follow during the commissioning, operation and maintenance of the measur- ing instrument. Consequently, all responsible personnel must read this operating manual carefully before working with the measuring system.
  • Page 10: General Safety Instructions

    Safety Cond 315i General safety instructions This instrument is built and inspected according to the relevant guide- lines and norms for electronic measuring instruments (see chapter 7 ECHNICAL DATA It left the factory in a safe and secure technical condition.
  • Page 11: Commissioning

    Cond 315i Commissioning Commissioning l Handheld meter, Cond 315i Scope of delivery l Operating manual and short operating manual l 4 batteries, 1.5 V Mignon type AA (in the instrument) For details of scope of delivery of SETs, see chapter 1.1 SET S OF and WTW catalog.
  • Page 12 Commissioning Cond 315i...
  • Page 13: Operation

    Temperature probe Only carry out measurements with a temperature probe. The tempera- ture probe is shown on the display by TP. The WTW TetraCon325 conductivity measuring cell has a temperature sensor integrated in it. Note The conductivity measuring instrument automatically recognizes the type of the temperature probe used.
  • Page 14: Conductivity / Specific Resistance

    Operation Cond 315i 4.2.2 Conductivity / Specific resistance Note You can display measured values in the units µ S/cm (conductivity) or M Ω cm (specific resistance). This basic setting is described in section 4.4 C ONFIGURATION Thus, you can carry out conductivity measurements or measurements of the specific resistance: Perform the preparatory activities according to section 4.2.1.
  • Page 15: Salinity

    Cond 315i Operation 4.2.3 Salinity You can carry out the salinity measurements as follows: Perform the preparatory activities according to section 4.2.1. Immerse the conductivity measuring cell in the test sample. Press the <M> key until Sal appears on the status display. The salinity value appears on the display.
  • Page 16 Operation Cond 315i If necessary, start the next AutoRead measurement with <RUN/ENTER>. To terminate AutoRead: Press the <AR> key. Note The current AutoRead measurement can be terminated at any time (accepting the current value) by pressing <RUN/ENTER>.
  • Page 17: Cell Constant / Temperature Compensation

    Cond 315i Operation Cell constant / Temperature compensation You can adjust the cell constant and switch the temperature compen- sation on/off. 4.3.1 Setting the cell constant C The cell constant of the conductivity measuring cell can be set to one of the following values: l 0.475 cm...
  • Page 18: Switching The Temperature Compensation (Tc) On/Off

    Operation Cond 315i To return to the measuring mode: Press the <M> key. 4.3.2 Switching the temperature compensation (TC) on/off The basis for calculating the temperature compensation is the selected reference temperature, Tref 25 or Tref 20. For details of how to select the reference temperature, see section 4.4 C...
  • Page 19 Cond 315i Operation Switching on the You can switch on the nonlinear temperature compensation as follows: nonlinear temperature compensation Press the <CAL> key repeatedly until the status display appears on the display. mV/pH % mg/l mbar Baud Time ° Day.Month No.
  • Page 20 Operation Cond 315i Switching the tempera- You can switch off the temperature compensation as follows: ture compensation off Press the <CAL> key repeatedly until tc appears on the dis- play. mV/pH % mg/l mbar Baud Time ° Day.Month No. °...
  • Page 21: Configuration

    Cond 315i Operation Configuration You can adapt the following settings to your individual requirements (the default setting is marked in bold): Reference temperature 25 °C (TREF25) or 20 °C (TREF20) S/cm or M Ω cm Display of the measured val-...
  • Page 22 Operation Cond 315i Selecting the display of TDS UpH mV/pH the measured value as % mg/l conductivity / specific resistance mbar Time Baud ° Day.Month ° Year Ident Tref25 Tref20 AutoCal DIN Auto Store ARng LoBat AutoCalTEC Use <CAL> to select between S/cm and M Ω⋅ cm.
  • Page 23: Reset

    Cond 315i Operation Reset You can reset the measuring parameters (Initialization). Basic settings The following settings are reset to the default values when a reset is performed (initialized): Setting Default settings Measuring mode Cell constant 0.475 cm Reference temperature Temperature compensation...
  • Page 24 Operation Cond 315i...
  • Page 25: Maintenance, Cleaning, Disposal

    Cond 315i Maintenance, cleaning, disposal Maintenance, cleaning, disposal Maintenance The measuring instrument is almost maintenance-free. The only maintenance task is replacing the batteries. LoBat indicates that the batteries should be changed. The batteries are then largely de- pleted. Replacing the batteries Open the housing after the instrument has been switched off: –...
  • Page 26: Cleaning

    Maintenance, cleaning, disposal Cond 315i Note For the maintenance of the measuring cells, follow the corresponding operating manual. Cleaning Occasionally wipe the outside of the measuring instrument with a damp, lint-free cloth. Disinfect the housing with isopropanol as re- quired.
  • Page 27: What To Do If

    Cond 315i What to do if... What to do if... Display LoBat Cause Remedy – Batteries almost empty – Replace batteries (see section 5.1 M AINTENANCE Error message Cause Remedy The measured value lies outside the measuring range – Cable broken –...
  • Page 28 What to do if... Cond 315i...
  • Page 29: Technical Data

    Cond 315i Technical data Technical data Storage - 25 °C ... + 65 °C Ambient temperature Operation -10 °C ... + 55 °C Allowable relative hu- Yearly mean: < 75 % midity 30 days/year: 95 % Other days: 85 %...
  • Page 30 Technical data Cond 315i T [°C] NTC 30: Accuracy ± 0.1 PT 1000: Accuracy Operating temperature ± 0.5 0 °C ... 15 °C ± 0.1 15 °C ... 35 °C ± 1 35 °C ... 55 °C Selecting the C [cm...
  • Page 31 Cond 315i Technical data FCC Class A Equipment Statement Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 32 Technical data Cond 315i...
  • Page 33: Lists

    Cond 315i Lists Lists This chapter provides additional information and orientation aids. Abbreviations The list of abbreviations explains the indicators and the abbreviations that appear on the display and in the manual. Specialist terms The glossary briefly explains the meaning of the specialist terms. How- ever, terms that should already be familiar to the target group are not described here.
  • Page 34 Lists Cond 315i Abbreviations Conductivity value (international γ ) AutoRead (drift control) ARng Automatic range switching Measuring instrument measures with highest reso- lution Cell constant [cm ] (internat. k) °C Temperature unit, degrees Celsius Calibration LoBat Batteries almost empty (Low Battery)
  • Page 35 AutoRange Name of the automatic selection of the measuring range. AutoRead WTW name for a function to check the stability of the measured value. Calibration Comparing the value from a measuring system (e. g. the displayed value) to the correct value or a value that is regarded as correct. Of- ten, this expression is also used when the measuring system is adjust- ed at the same time (see adjusting).
  • Page 36 Lists Cond 315i Salt content General designation for the quantity of salt dissolved in water. Sample Designation of the sample ready to be measured. Normally, a test sample is made by processing the original sample. The test sample and original sample are identical if the test sample was not processed.
  • Page 37 Cond 315i Index Index Replacing the batteries Reset Authorized use Resetting parameters AutoRead Safety Basic settings safety precautions Salinity Scope of delivery Calibration software Cell constant Setting Conductivity Temperature compensation Temperature compensation Default settings (conductivity) Display Temperature probe Drift control...
  • Page 38 Index Cond 315i...
