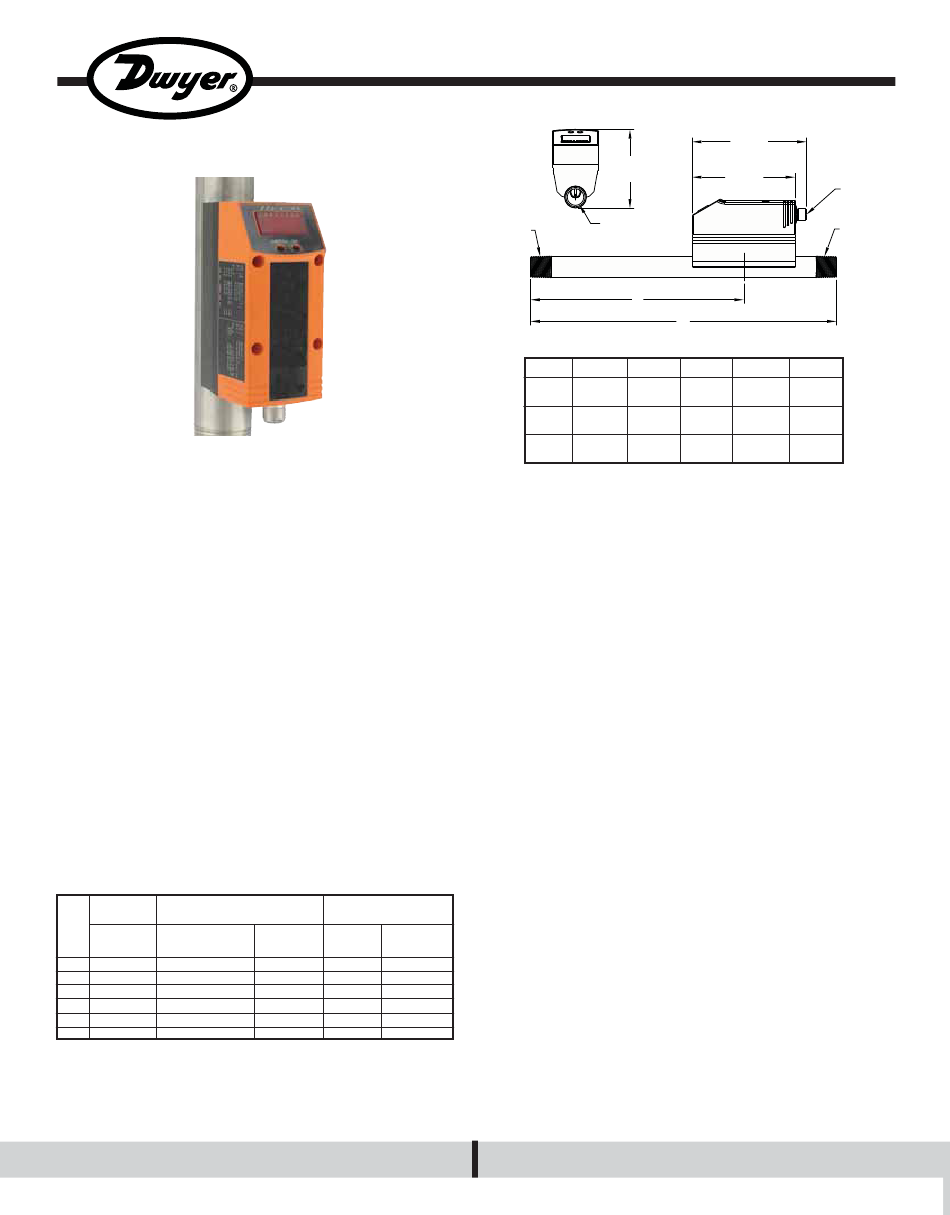

Dwyer Instruments CAM Series Operating Instructions Manual

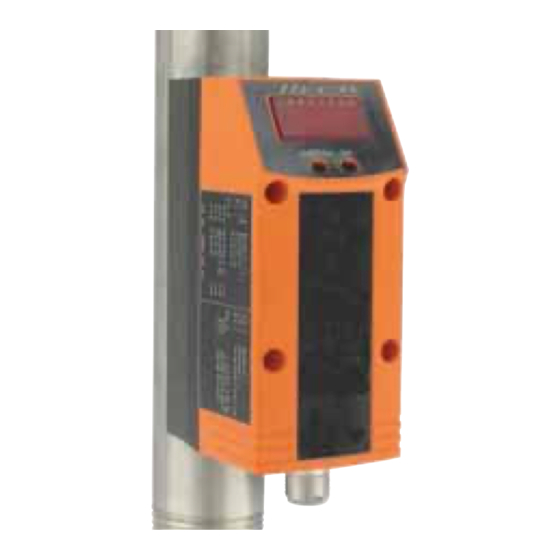

The Series CAM Compressed Air Meter operates by the calorimetric
measuring principle to detect the standard volume flow of operating
compressed air. It is designed specifically to evaluate the current flow
rate and the current consumed quantity in compressed air systems. With
an easily programmable digital display, this unit offers a quick, accurate
readout. The Series CAM is constructed of high-grade materials and is
virtually maintenance free.
Read the product description before installing the unit, to ensure that the
product is suitable for your application without any restrictions. Suitably
qualified personnel must perform work on compressed air equipment.
Ensure that the installation is at a standstill, before mounting compo-
nents into or removing them from compressed air equipment. Ensure
that neither people nor objects are endangered by moving parts before
commissioning / restart of the installation. Non-adherence to the operat-
ing instructions or technical data can lead to personal injury and/or dam-
age to property. In all applications, check compliance of the product
materials with the media to be measured.
Max. Oil Max. Residual Dust
Content
Oil Content Dust Concentration
mg/m 3 mg/m 3
Class
0.01 0.1
1
0.1 1
2
1 5
3
5 8
4
25 10
5
– –
6
DWYER INSTRUMENTS, INC.
P.O. Box 373 • Michigan City, IN 46361-0373, U.S.A.
Find Quality Products Online at:
Series CAM Compressed Air Meter
Specifications - Installation and Operating Instructions
Max. Residual Water
Particle Size Residual Pressure Dew
mg/µm Water g/m 3 Point °C
0.1 0.003 -70
1 0.117 -40
5 0.880 -20
15 5.953 +3
40 7.732 +7
– 9.356 +10
Chart 1
GlobalTestSupply
www.
3-1/32
[76.99]
E
C
A
DIMENSIONS
MODEL A B
CAM-10 10-53/64 18-45/64
[275.3] [475.06]
CAM-20 8-9/32 11-13/16
[210.34] [300.04]
CAM-30 14-49/64 18-45/64
[375.05] [475.06]
SPECIFICATIONS
Service: Compressed air; Air quality (see chart 1).
Wetted Materials: Stainless Steel (304S15), ceramics, glass passivat-
ed, PEEK, polyester, Fluoroelastomer, anodized aluminum.
Response Time: < 0.1 seconds.
Temperature Limit: 32 to 140°F (0 to 60°C).
Accuracy*: 1.41 ±3% +0.3% FV; 3.44 ±6% MV +0.6% FV.
Pressure Limit: 232 psig (16 bar).
Humidity Limit: 90% RH.
Power Requirements: 19-30 DC.
Output Signal:
Output 1: PNP Open Collector: VOUT(max)=30 VDC /
ISINK(max)= 250mA
Output 2: 4-20mA (scalable) or PNP Open Collector.
Loop Resistance: 500 ohms.
Current Consumption: <100 mA.
Electrical Connections: 4 pin M12(Micro) Cable Connection.
Process Connections: 1/2˝ , 1˝ and 2˝ NPT.
Display: 4-digit alphanumeric red LED
Enclosure Rating: IP65 (NEMA 4X).
Mounting Orientation: Vertical, Horizontal, Side with pipe length fac-
ing left.
Ranges:
CAM-10: 1.4-412.0 SCFM;
CAM-20: 0.2-44.1 SCFM;
CAM-30: 1.0-132.4 SCFM.
Weight:
CAM-10: 12.5 lb;
CAM-20: 2.35 lb;
CAM-30: 4.16 lb.
Agency Approvals: CE.
*Ref. Chart 1 for DIN ISO 8573 Standards
e.g. 1.4.1. implies
1 = 0.01mg/m 3 oil content
4 = 15 µm particle size and 8 mg/m 3 particle density
1 = -70°C dew pt., 3 mg/m 3 residual water
Phone: 219/879-8000
Fax: 219/872-9057
.com
Bulletin C-32
4-3/8
[111.13]
3-15/16
[100.01]
M12 x 1
C
B
C D E
2 NPT 5-1/4 Ø2-1/64
[133.35] [Ø51.2]
1/2 NPT 3-1/32 Ø41/64
[76.99] [Ø16.27]
1 NPT 3-31/64 Ø1-5/64
[88.5] [Ø27.38]
