Dwyer Instruments CSG User Manual

USER'S GUIDE

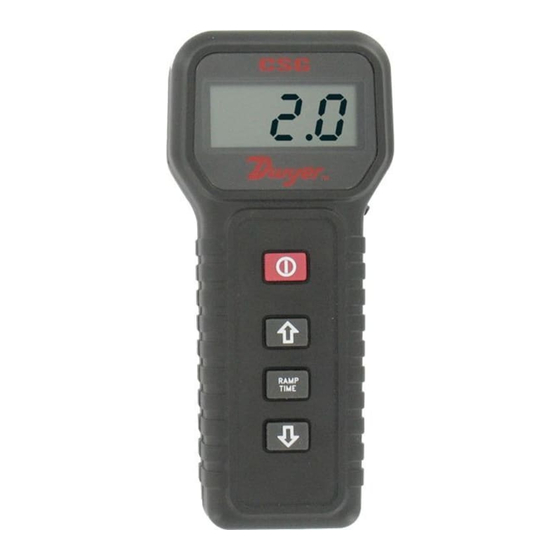

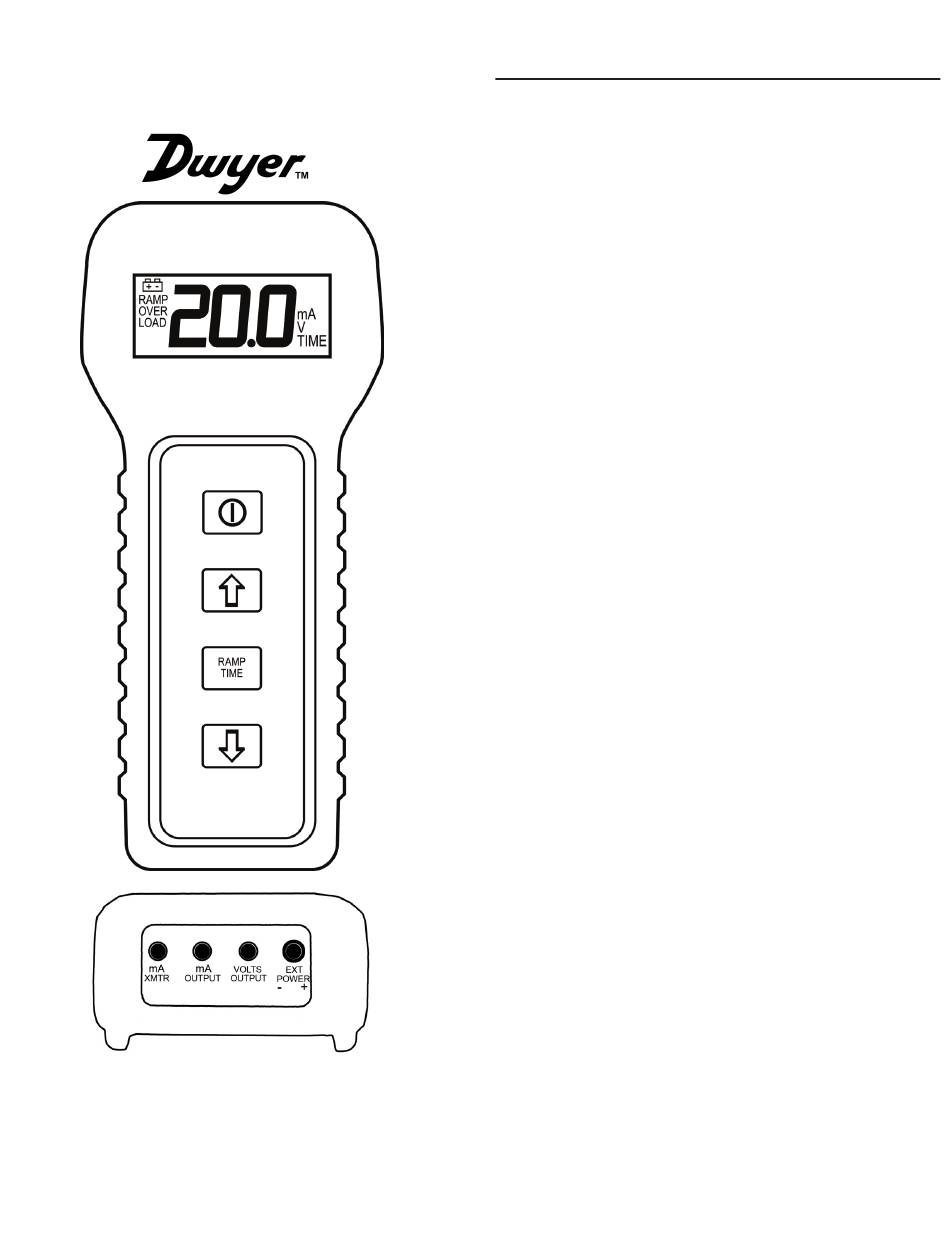

Model CSG
Current & Voltage Calibrator
Copyright © 2006. All rights reserved including the
right of reproduction in whole or in part in any form

Specifications

OUTPUTS
Ranges
Current: 0.0 to 20.0mA DC in 1mA steps
Voltage: 0.0 to 10.0V DC in 1V steps
Accuracy at 25°C
Current: +/- 0.05mA DC
Voltage: +/- 0.05V DC
Load Impedance
Current: 300 ohms maximum
Voltage: 1000 ohms minimum
External mA Transmitter Source
Voltage: 12V minimum to 30V peak maximum
RAMPING
Manual Anywhere in range
Auto
Values: User adjustable Min. & Max. values
anywhere within range
Step Time: User adjustable from 1 to 20
seconds, in 1 second increments
DISPLAY
Numerical LCD, 00.0 to 99.9, 0.59"H (15mm)
Annunciators "RAMP", "OVER LOAD", "mA", "V",
"TIME", and symbol for low battery
Blue Backlight
Energized with momentary side
switch
ENVIRONMENT
Operating 32 to 122°F (0 to 50°C)
POWER
9V Battery
NEDA1604, JIS006P, or IEC6F22
(Duracell MN1604 or equivalent)
Up to 30 hours continuous use
Low Battery Indicator comes on below
approximately 7 volts
120 V AC Plug-in 9V DC output supply for
bench-top use
Auto Power Off User adjustable delay time from
1 to 20 minutes after last key press
Can also be disabled
MECHANICAL
Dimensions
5.5"H x 2.5"W x 1.4"D
(140H x 63.5W x 35.6D mm)
Weight
6 oz (170 g)
