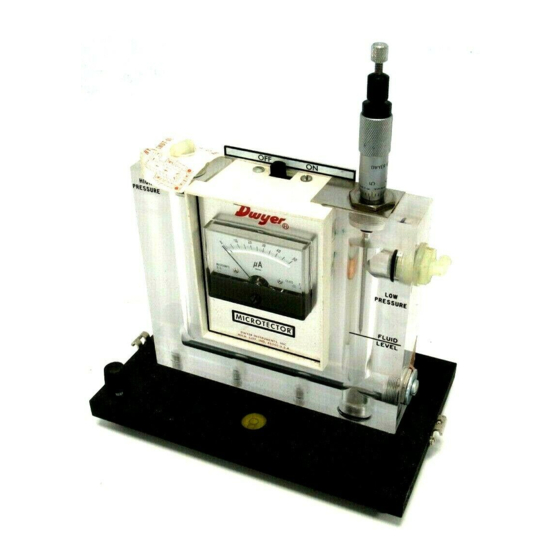

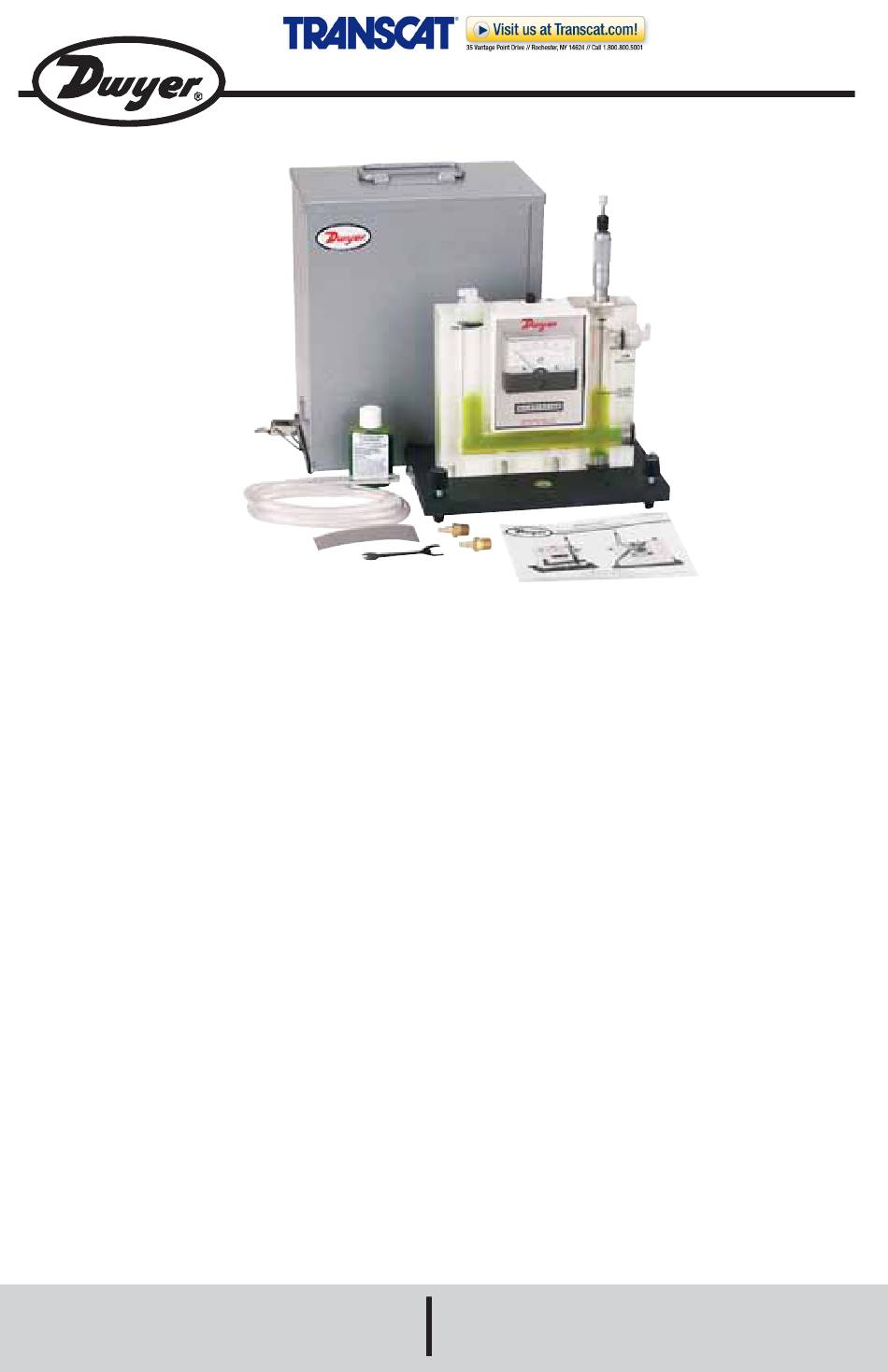

Model 1430 Microtector
Electronic Point Gage combines mod-
ern, solid-state integrated circuit elec-
tronics with a time-proven point gage
manometer to provide fast, accurate
pressure measurements.
SPECIFICATIONS AND FEATURES
• Accurate and repeatable to ± .00025
inches water column
• Pressure range: 0 - 2˝ w.c., positive,
negative, or differential pressures
• Non-toxic and inexpensive gage fluid
consists of distilled water mixed with
a small amount of fluorescein green
color concentrate
• Convenient, portable, lightweight
and self-contained, the unit requires
no external power connections and
is operated by a 1.5 volt penlight cell
• A.C. detector current eliminates
point plating, fouling and erosion
• Micrometers are manufactured in accor-
dance with ASME B89.1.13-2001, and
are traceable to a standard at the National
Institute of Standards and Technology
Model 1430 Microtector
Installation and Operating Instructions
®
Portable
*
Electronic Point Gage
®
• Three-point mounting, dual leveling
adjustment, and circular level vial
assure rapid setup
• Durablock precision-machined acrylic
plastic gage body
• Sensitive 0 - 50 microamp D.C. meter
acts as a detector and also indicates
battery and probe condition
• Heavy 2˝ thick steel base plate
provides steady mounting
• Top-quality glass epoxy circuit board
and solid-state, integrated circuit
electronics
• Electronic enclosure of tough, molded
styrene acrylonitrile provides maximum
protection to components yet allows
easy access to battery compartment
• Rugged sheet steel cover and carrying
case protects the entire unit when not
in use
• Accessories included are (2) 3-foot
lengths Tygon tubing, (2) 1/8˝ pipe
thread adapters and 3/4 oz. bottle of
fluorescein green color concentrate
with wetting agent
Maximum pressure: 100 psig with
optional pipe thread connections.
Bulletin D-57
*
Patent No. 3,726,142
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Dwyer Instruments 1430
Summary of Contents for Dwyer Instruments 1430
- Page 1 Bulletin D-57 Model 1430 Microtector Electronic Point Gage ® Installation and Operating Instructions Patent No. 3,726,142 Model 1430 Microtector ® Portable • Three-point mounting, dual leveling Electronic Point Gage combines mod- adjustment, and circular level vial assure rapid setup ern, solid-state integrated circuit elec- tronics with a time-proven point gage •...
- Page 2 PRESSURE FLUID LEVEL Microtector Gage ® Precision Pressure Measurement On indication of contact, the operator stops The Dwyer Microtector ® combines the time- lowering the point and reads the micrometer proven principles of the Hook Gage type which indicates one half the applied pressure. manometer and modern solid-state integrat- By interpolating eight divisions (each being ed circuit electronics.
- Page 3 After making contact, turn the point out of the Fluid Level fluid by turning the micrometer barrel counter- Level the gage by adjusting the two front lev- clockwise to a reading of .010 or more. eling screws (Item 8 on drawing) until the bub- Again, watch the meter and, this time, lower ble in the spirit level is centered in the small the point by turning the micrometer barrel.
- Page 4 (1) Remove the point (by unscrewing) and clean the tip lightly using fine crocus cloth. Wipe off all grit and dirt with a clean rag; reassemble and recheck meter operation. ©Copyright 2005 Dwyer Instruments, Inc Printed in U.S.A. 10/05 FR# 38-440190-00 Rev. 7...
